FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2008
>>
Express 3500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
A - Z Index
A - Z Index

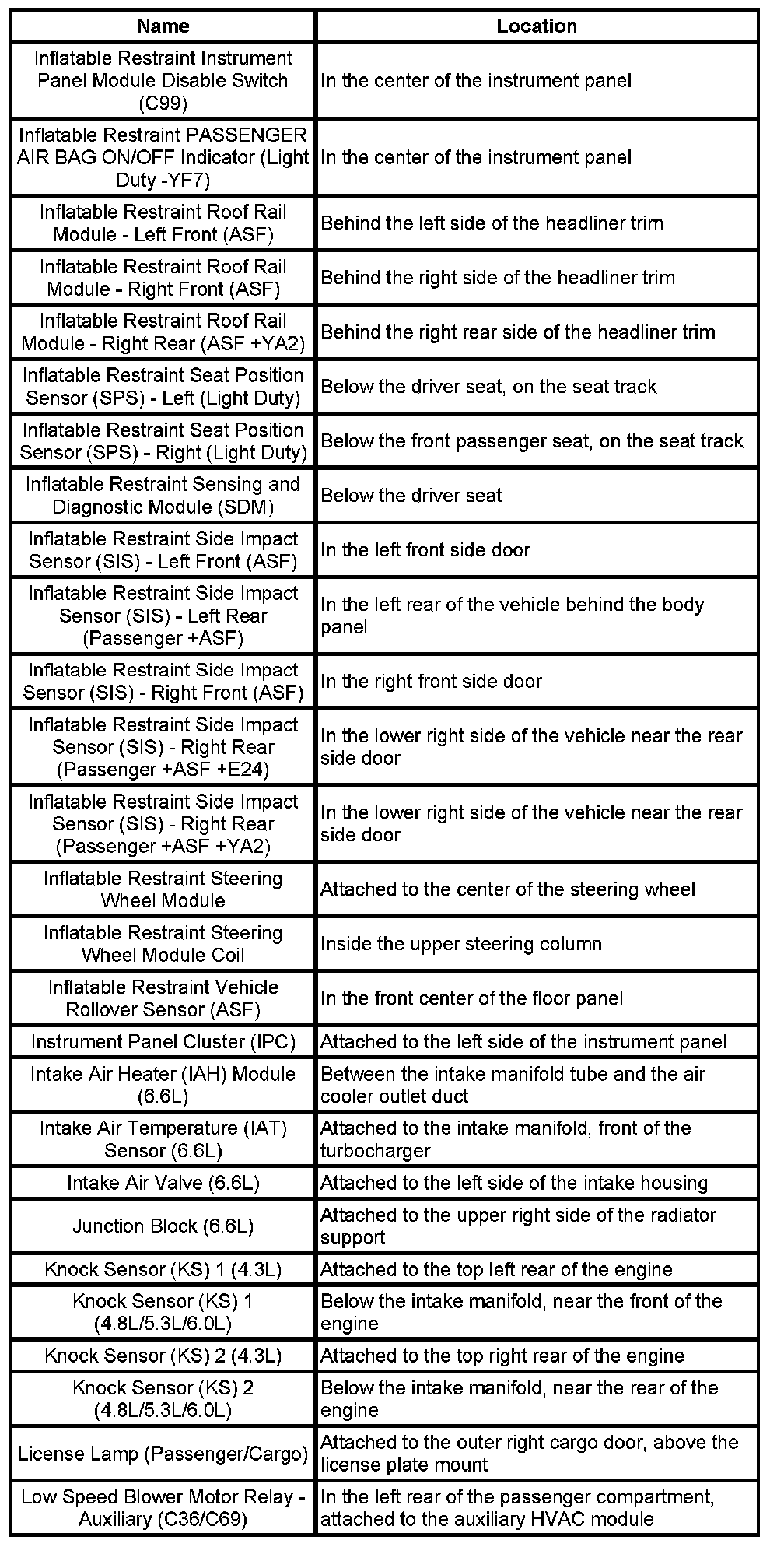

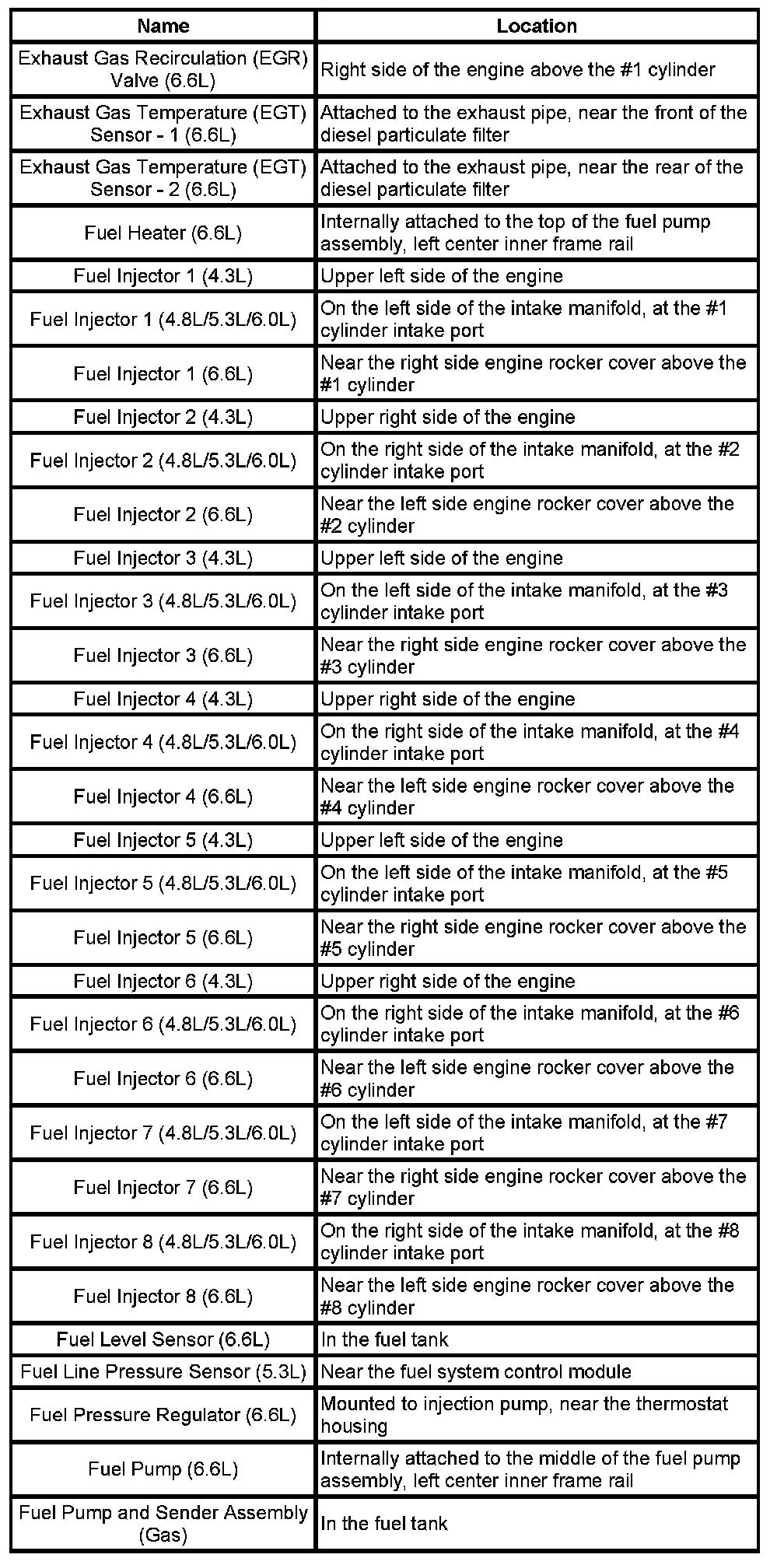

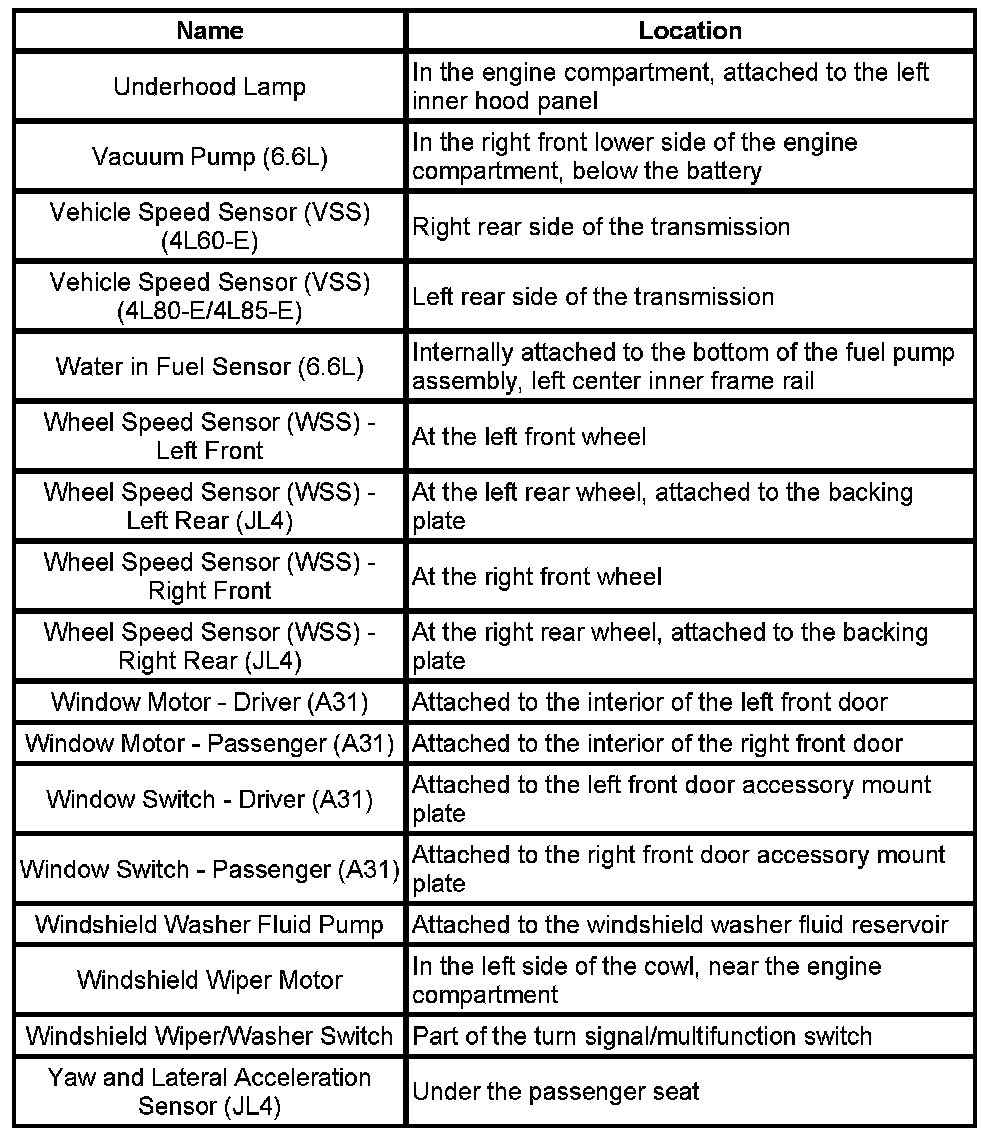

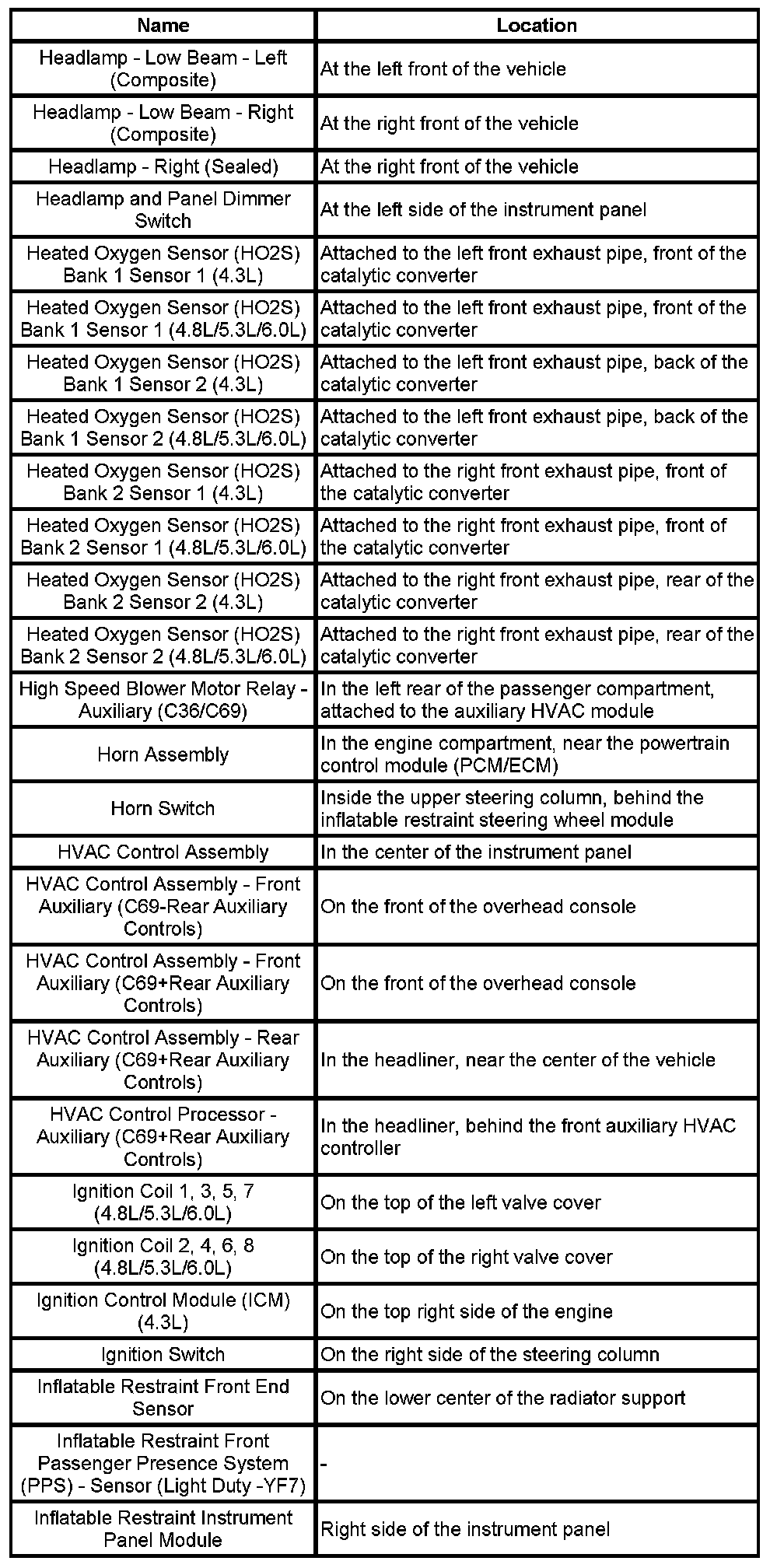

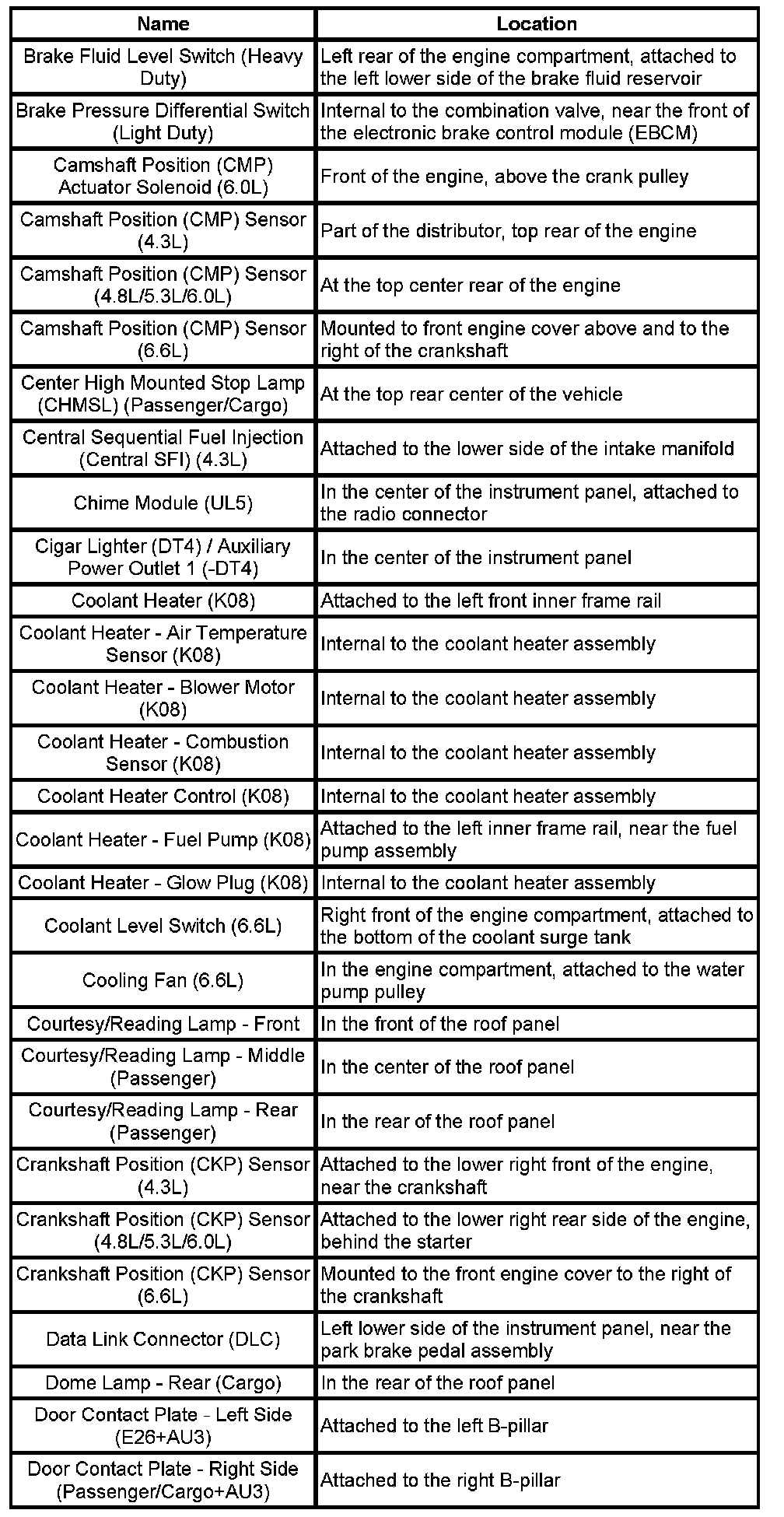

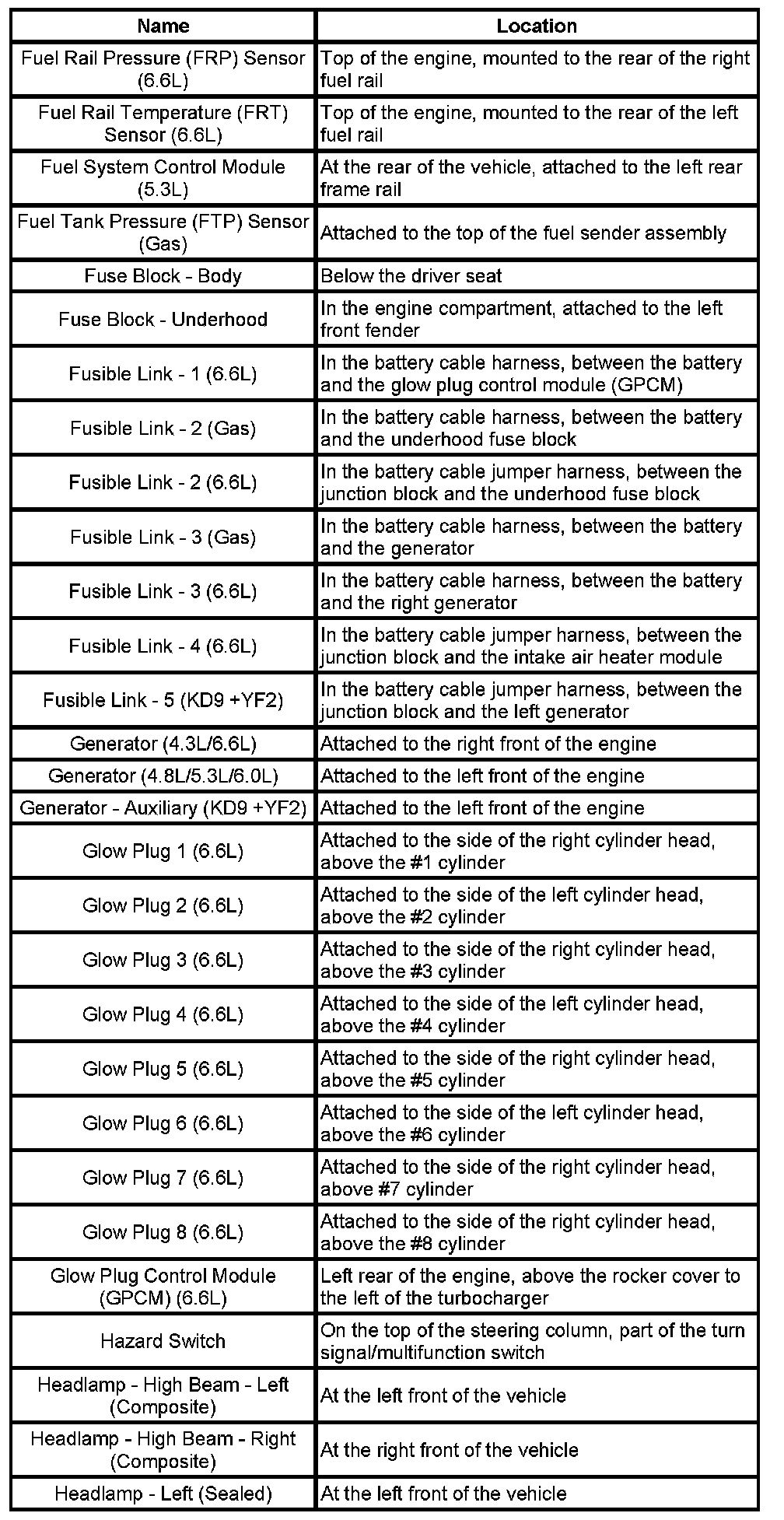

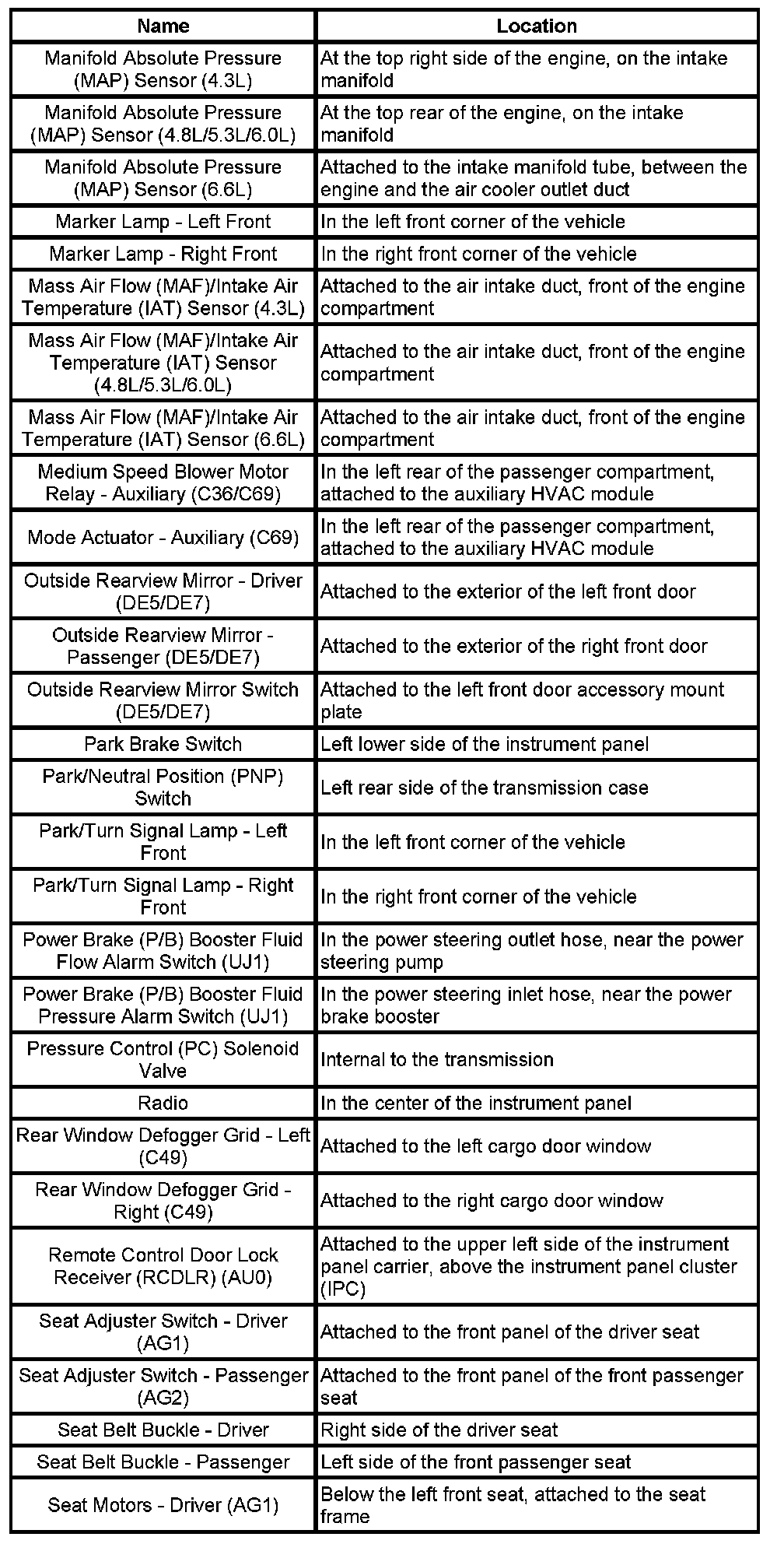

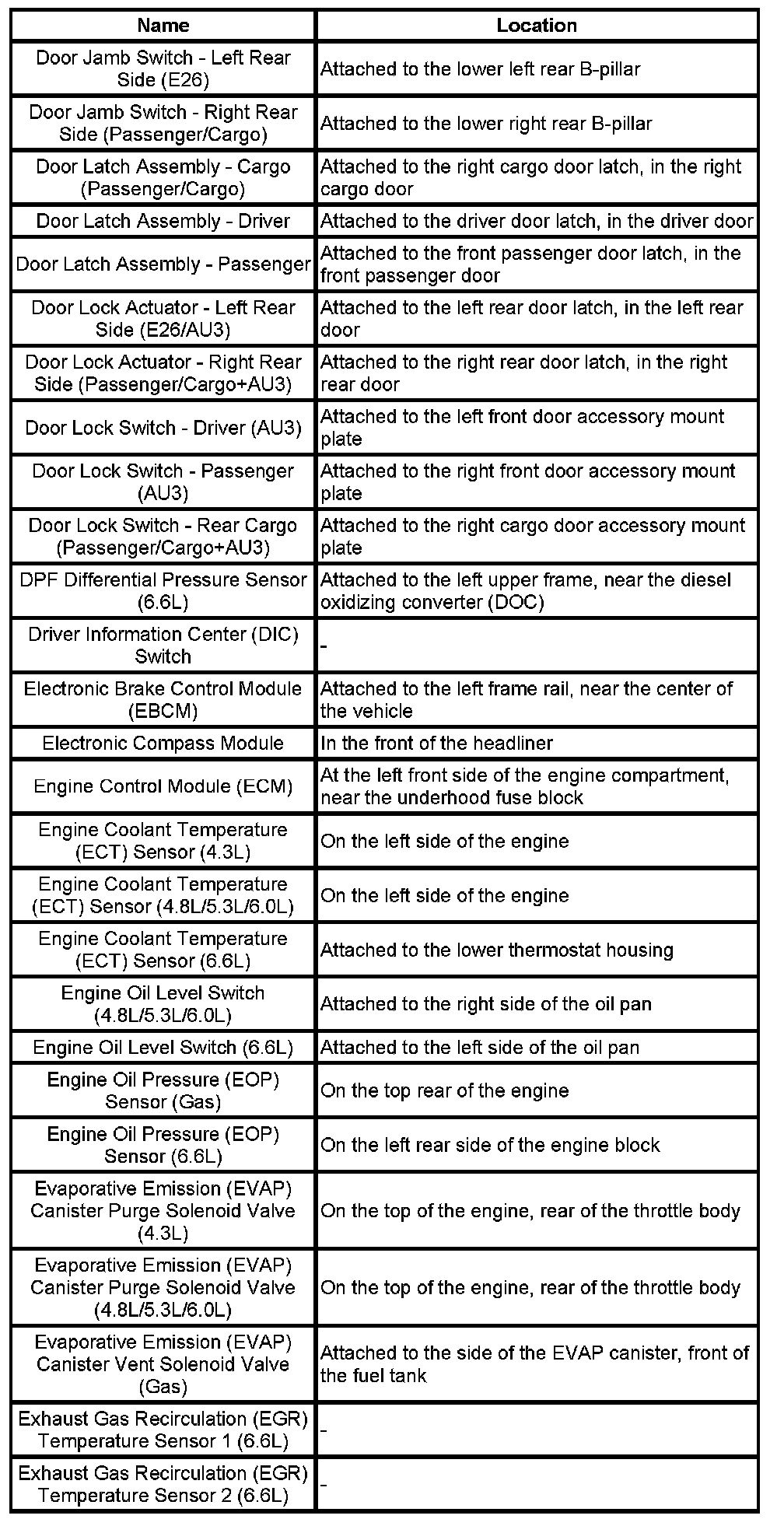

Master Electrical Component List

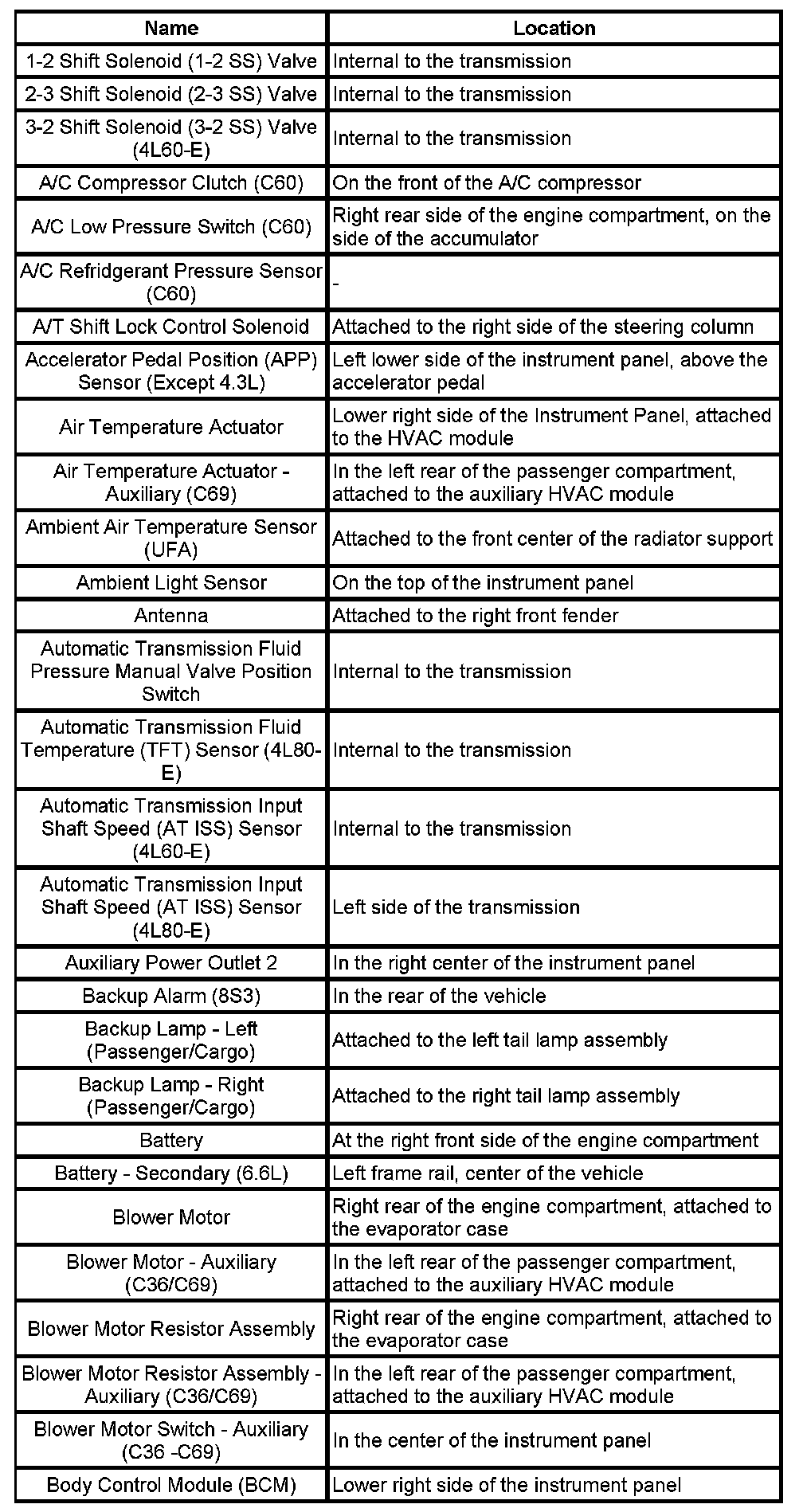

1-2 Sh - Bo:
Br - Do:
Do - Ex:
Ex - Fu:
Fu - He:
He - In:
In - Lo:
Ma - Se:

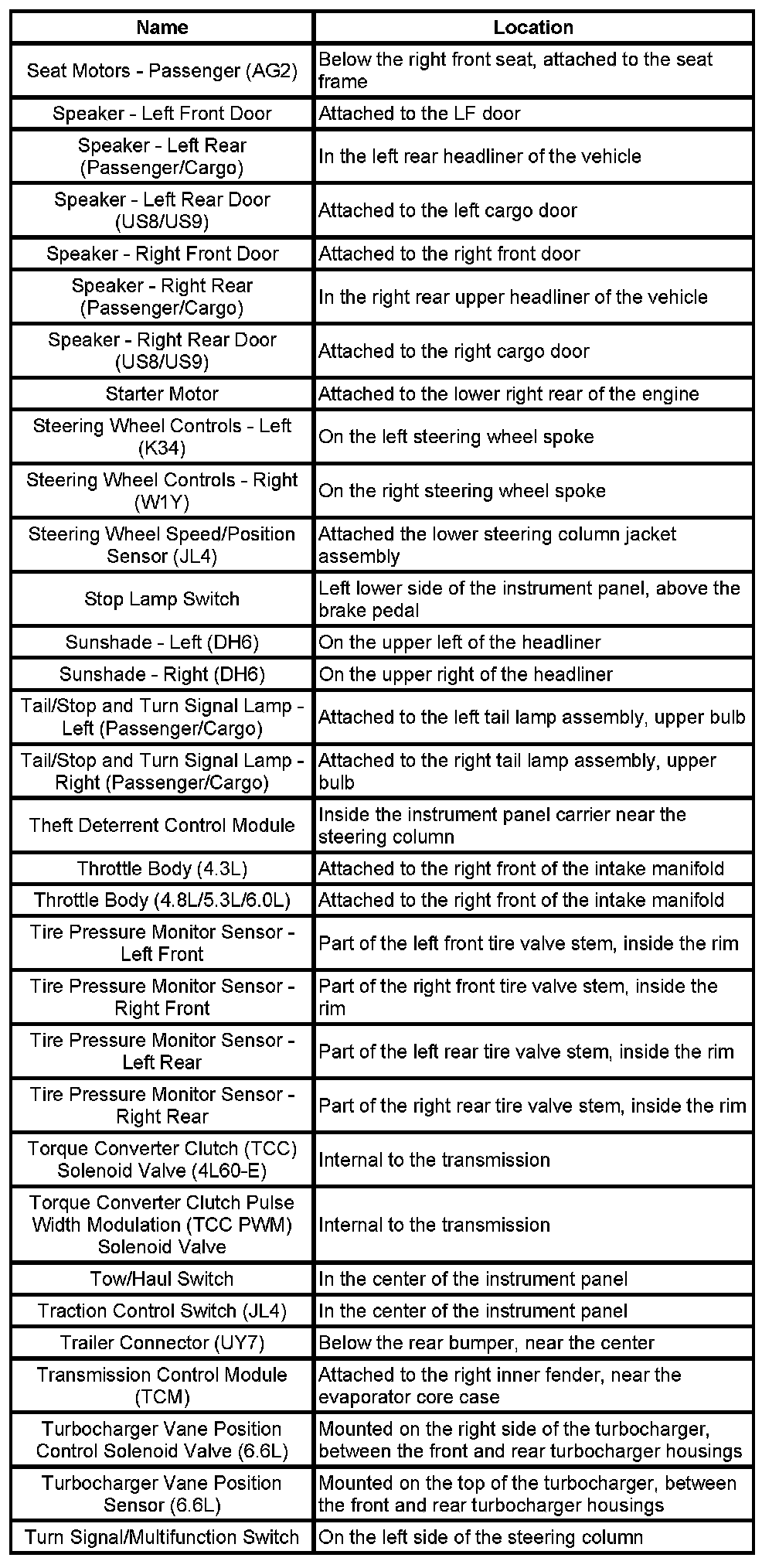

Se - Tu:
Un - Ya:
