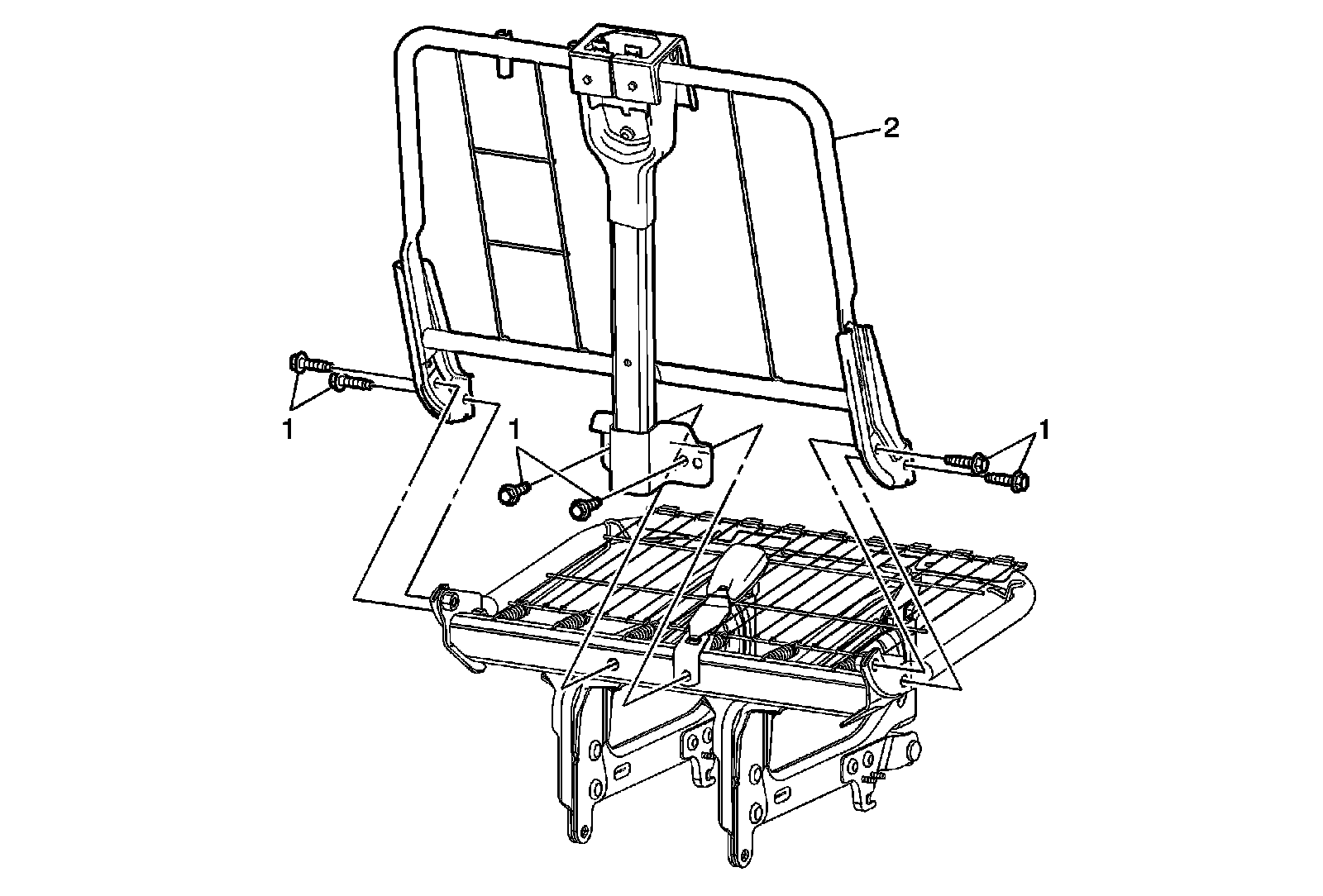

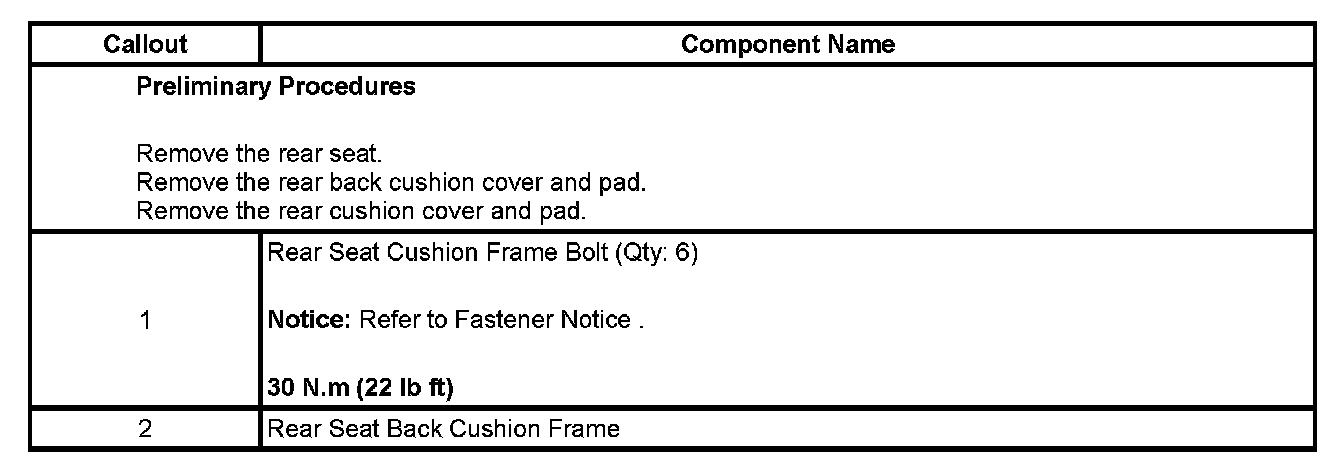

Rear Seat Back Cushion Frame Replacement (with Split Bench Seat)
Rear Seat Back Cushion Frame Replacement (with Split Bench Seat)
Rear
Seat Back
Cushion
Frame
Replacement (with Split Bench Seat)
