Power Door Lock Actuator: Diagrams

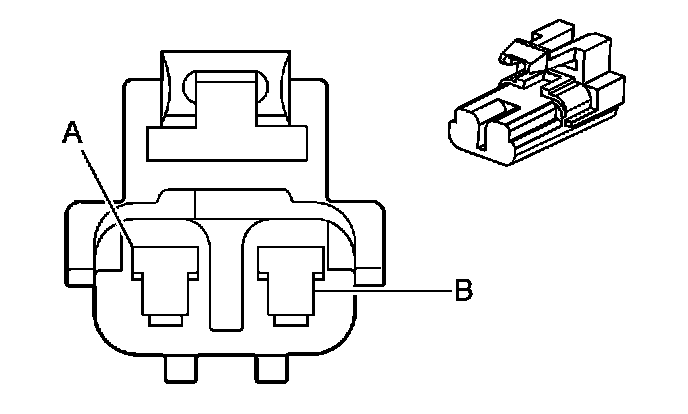

Component Connector End Views

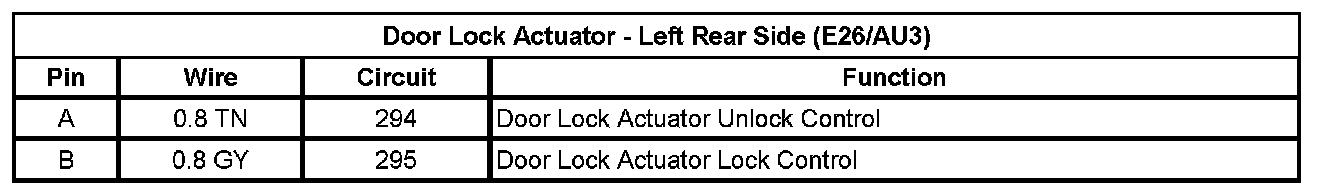

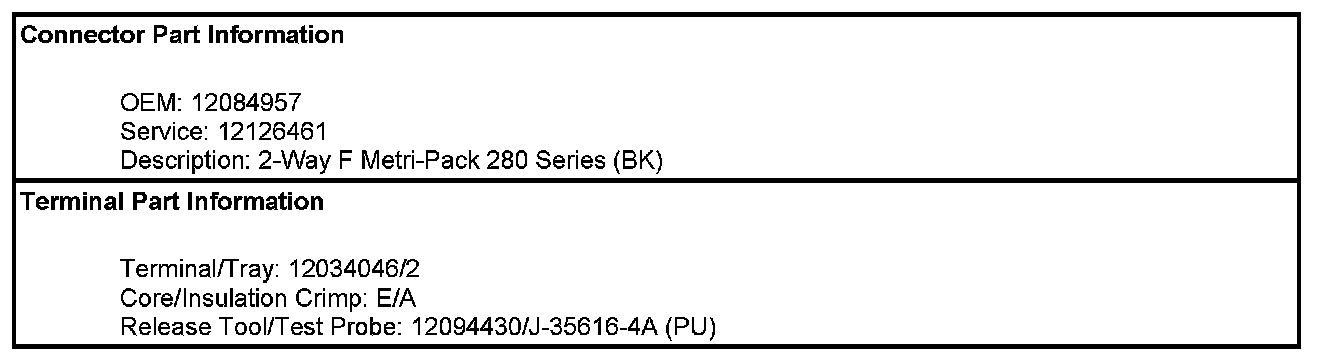

Door Lock Actuator - Left Rear Side (E26+AU3)

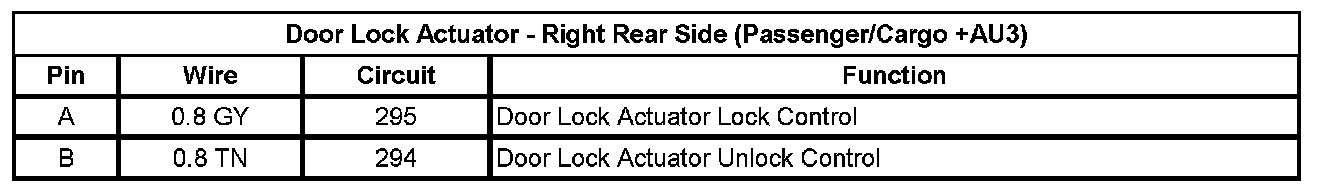

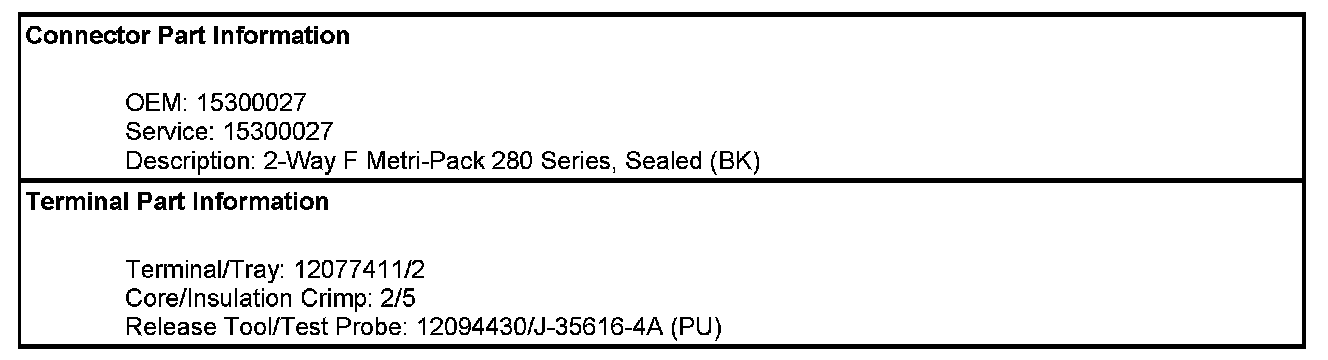

Door Lock Actuator - Right Rear Side (Passenger/Cargo +AU3)
