Lower Sliding Door Rail: Service and Repair

Rear Side Door Lower Track Replacement

Removal Procedure

1. Remove the sliding side door check assembly.
2. Remove the sliding side door lower roller bracket.

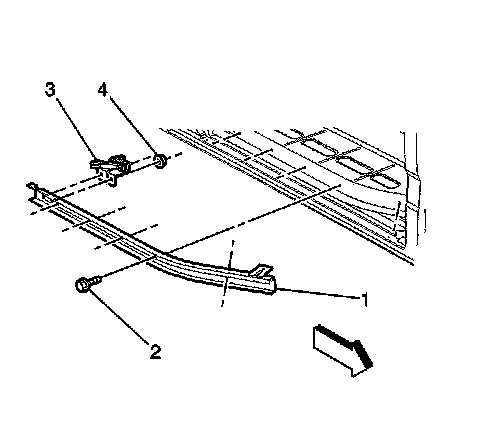

3. Remove the bolts (2) that retain the sliding side door lower track (1) to the vehicle.
4. Remove the sliding side door lower track (1) from the vehicle.

Installation Procedure




1. Install the sliding side door lower track (1) to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the bolts (2) that retain the sliding side door lower track (1) to the vehicle.

Tighten the bolts to 11 N.m (97 lb in).

3. Install the sliding side door lower roller bracket.
4. Install the sliding side door check assembly.
