Direct Clutch Assembly Removal



Direct Clutch Assembly Removal

Tools Required

J 38733 Direct Clutch Assembly Remover/Installer

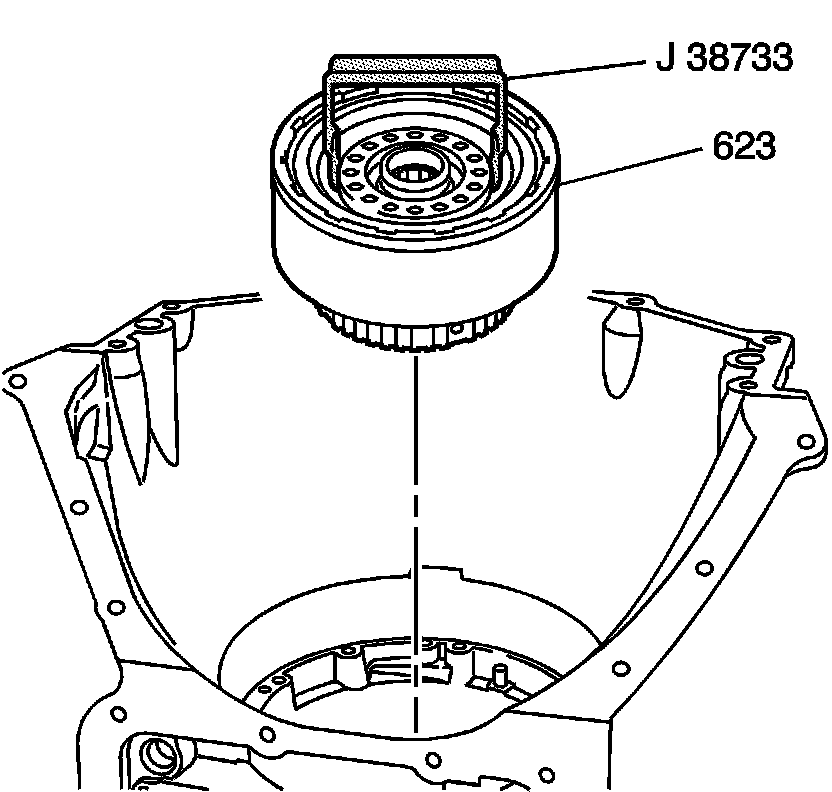

Using the J 38733 , remove the direct clutch housing assembly (623).
