Transmission Oil Pump Disassemble



Transmission Oil Pump Disassemble

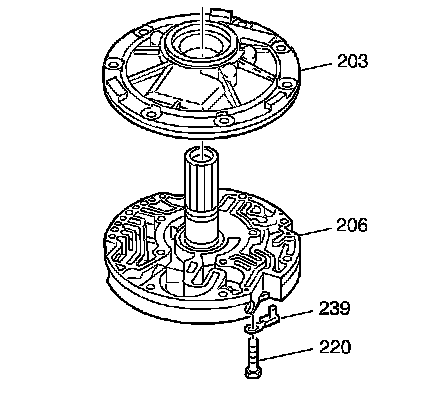

1. Remove the transmission oil pump cover bolts (220).
2. Remove the vent passage splash shield (239).
3. Separate the oil pump body assembly (203) and the oil pump cover (206).
