Manual 2-1 Band Servo Assembly Installation



Manual 2-1 Band Servo Assembly Installation

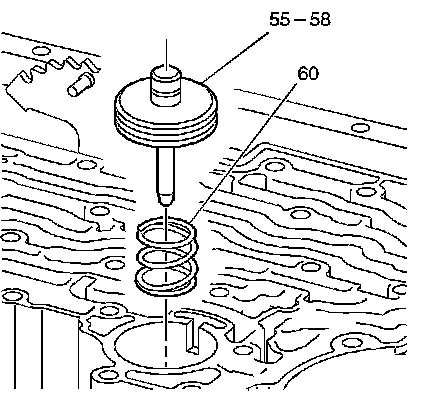

1. Install the manual 2-1 band servo piston cushion spring (60).

Important: Ensure the tapered end of the manual 2-1 band servo piston pin contacts the manual 2-1 band.

2. Install the manual 2-1 band servo piston assembly (55-58).
