Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side



Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side

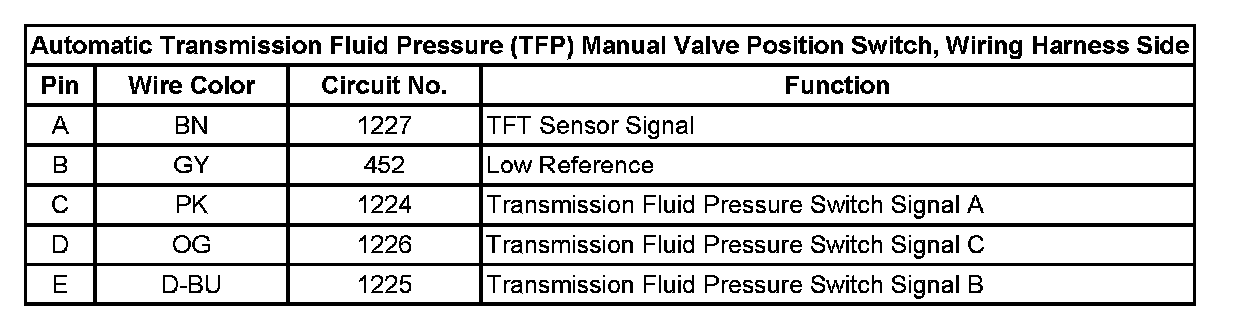

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
