Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C900 - C999 >> C902

C902

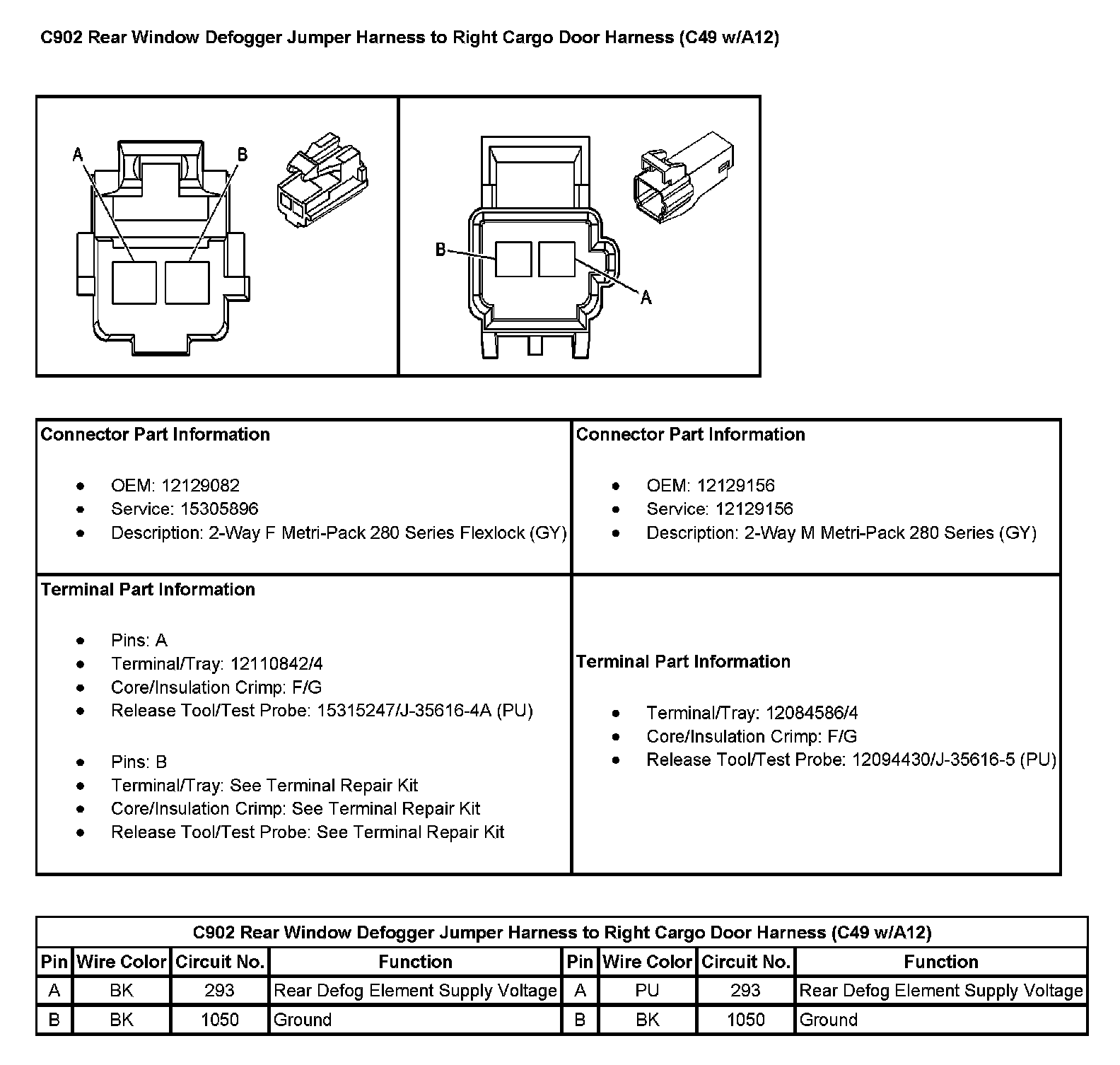

C902 Rear Window Defogger Jumper Harness To Right Cargo Door Harness (C49 With RPO Code A12):
