C312
C312

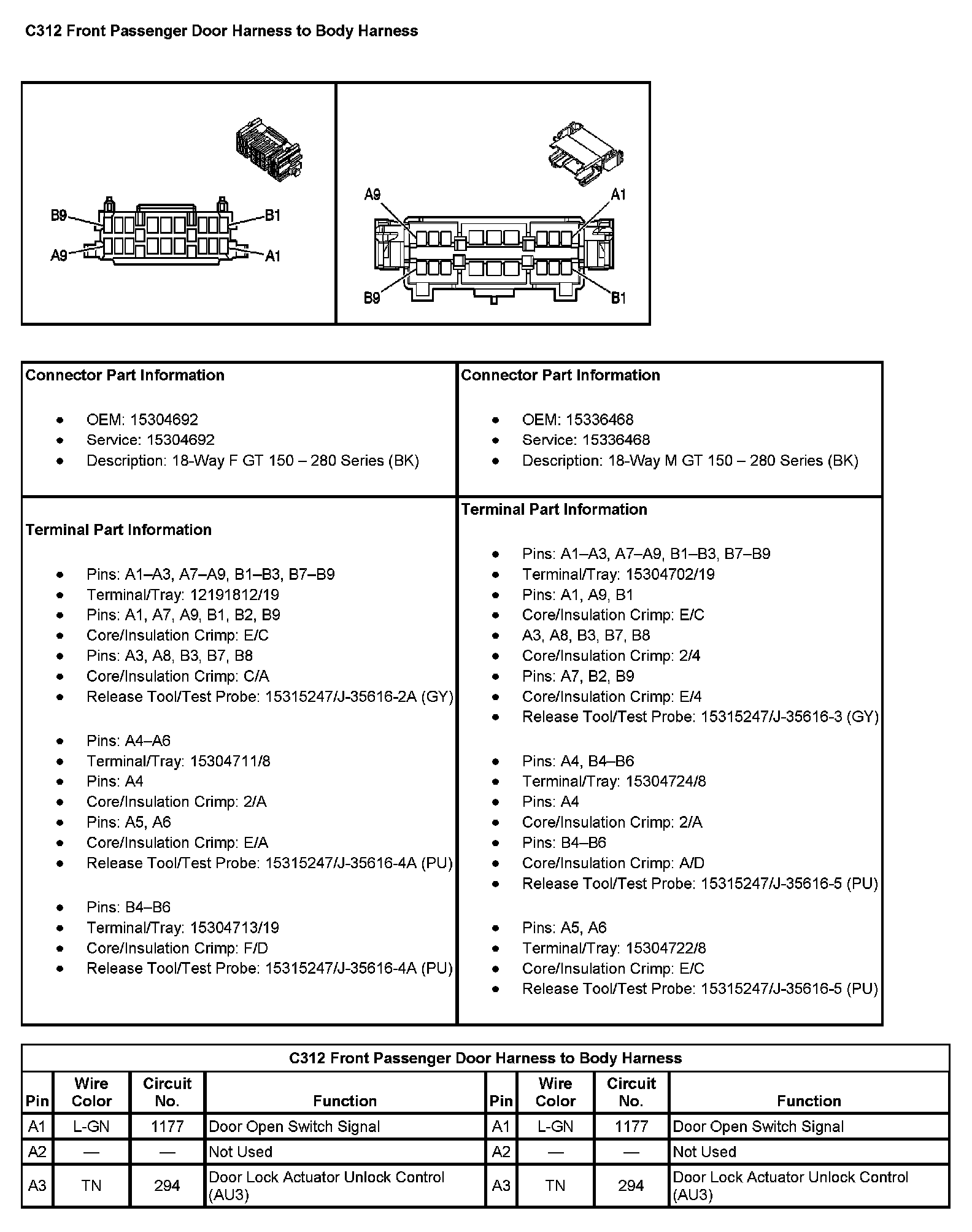

C312 Front Passenger Door Harness To Body Harness (Pin A1 To A3):

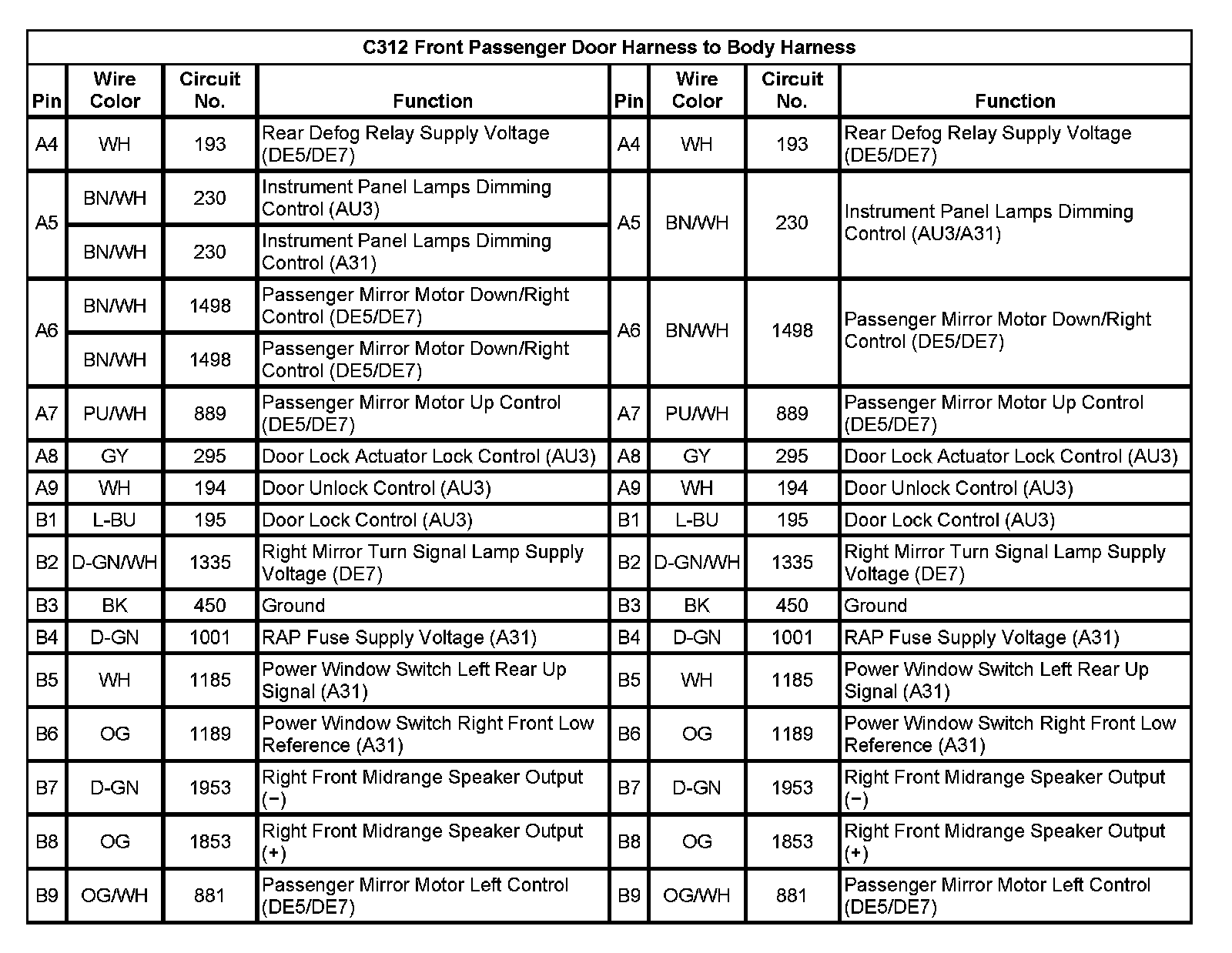

C312 Front Passenger Door Harness To Body Harness (Pin A4 To B9):
