FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2007
>>
Express 3500 V8-6.6L DSL Turbo VIN 6
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C300 - C399
>>
C311
C311

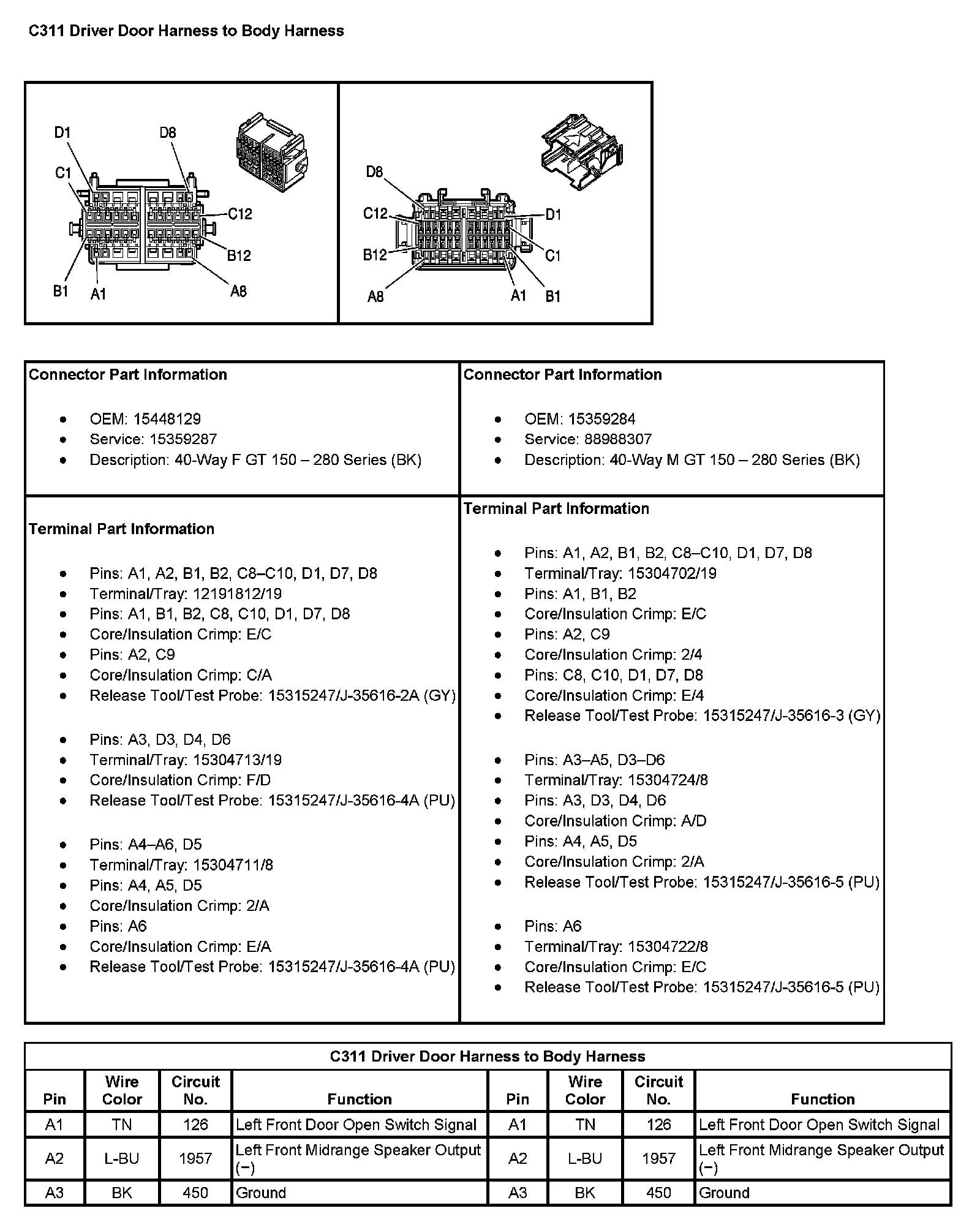

C311 Driver Door Harness To Body Harness (Pin A1 To A3):

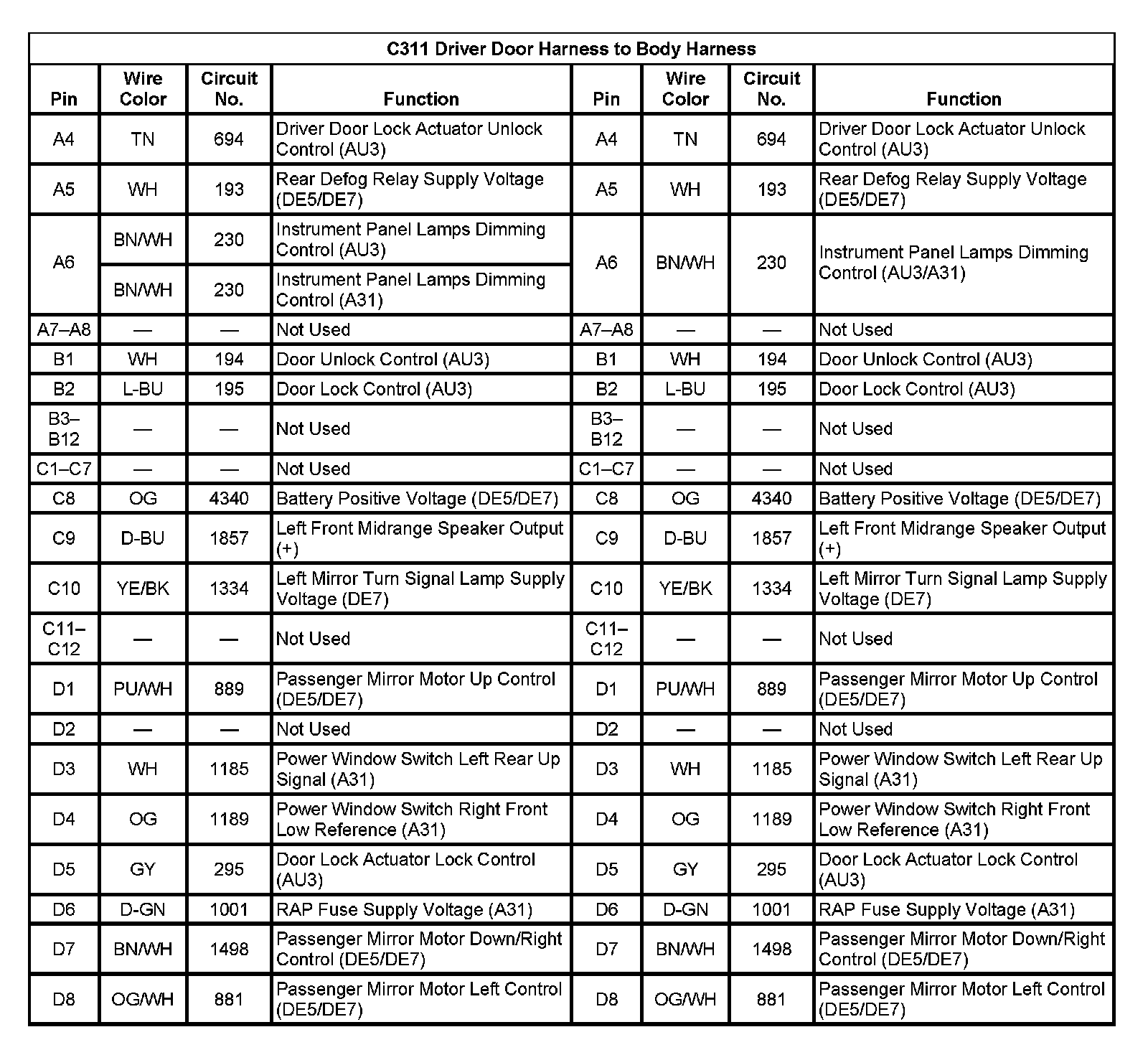

C311 Driver Door Harness To Body Harness (Pin A4 To D8):
