C306

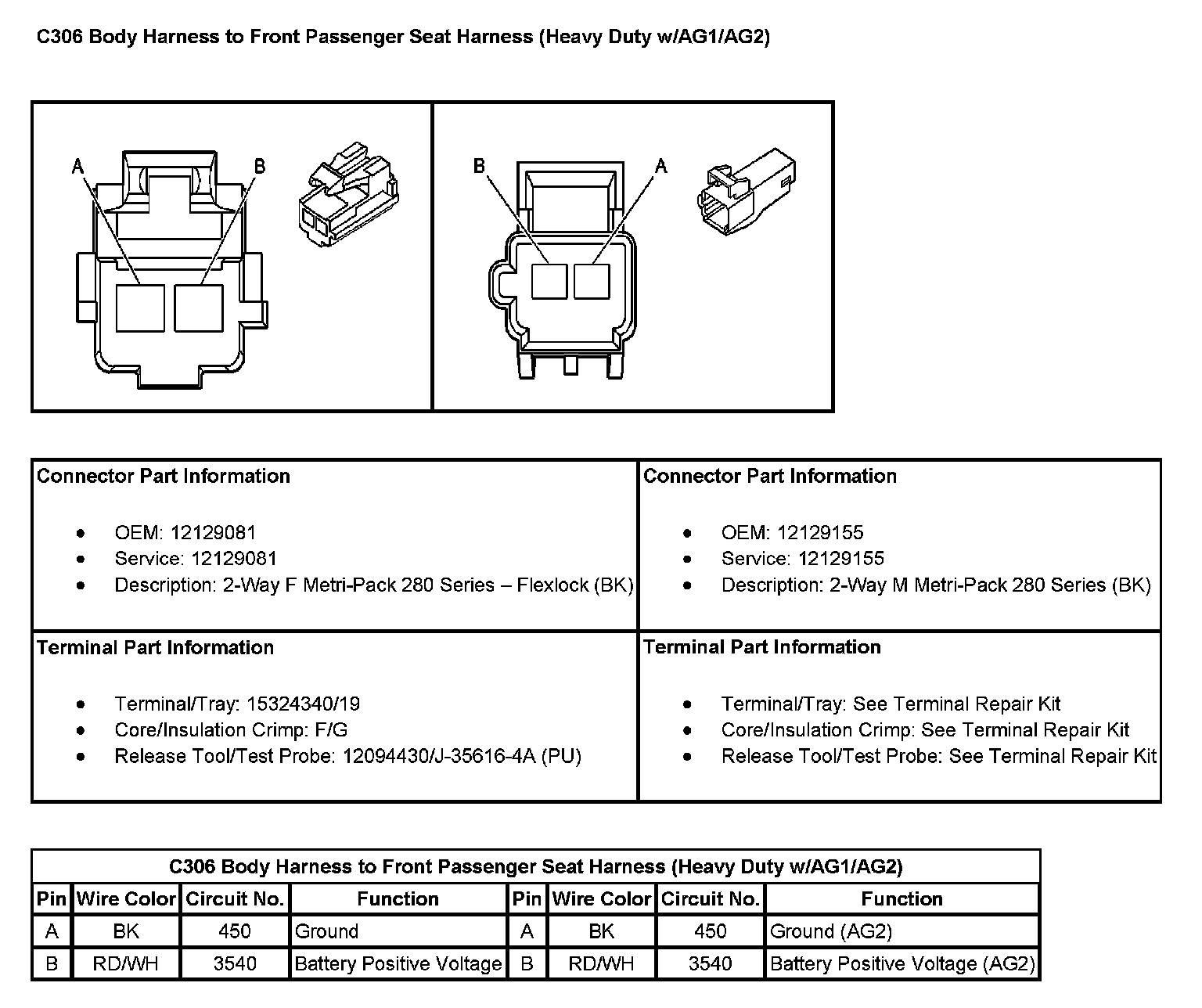

C306 Body Harness To Front Passenger Seat Harness (Heavy Duty W/AG1/AG2):

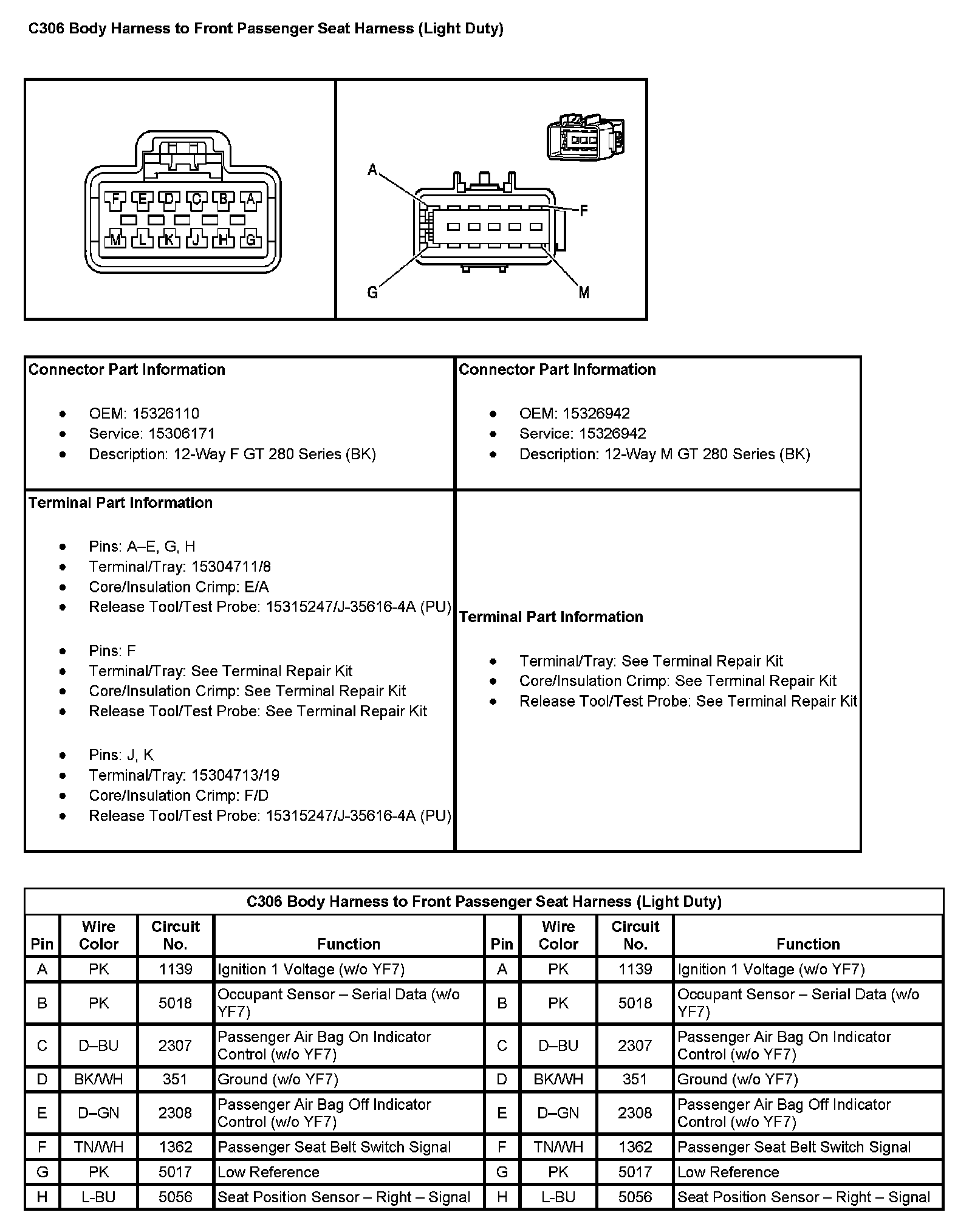

C306 Body Harness To Front Passenger Seat Harness (Light Duty) (Pin A To H):

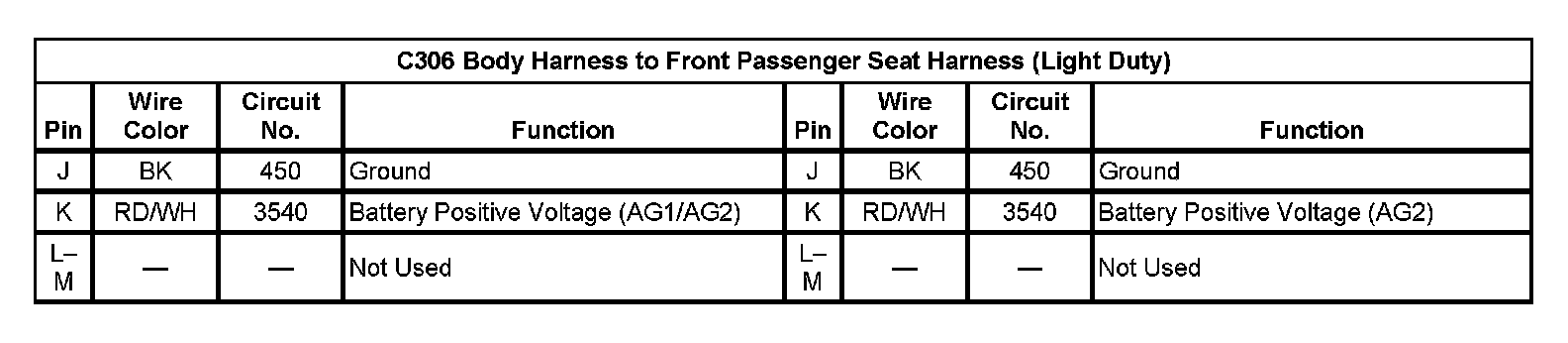

C306 Body Harness To Front Passenger Seat Harness (Light Duty) (Pin J To M):
