C275
C275

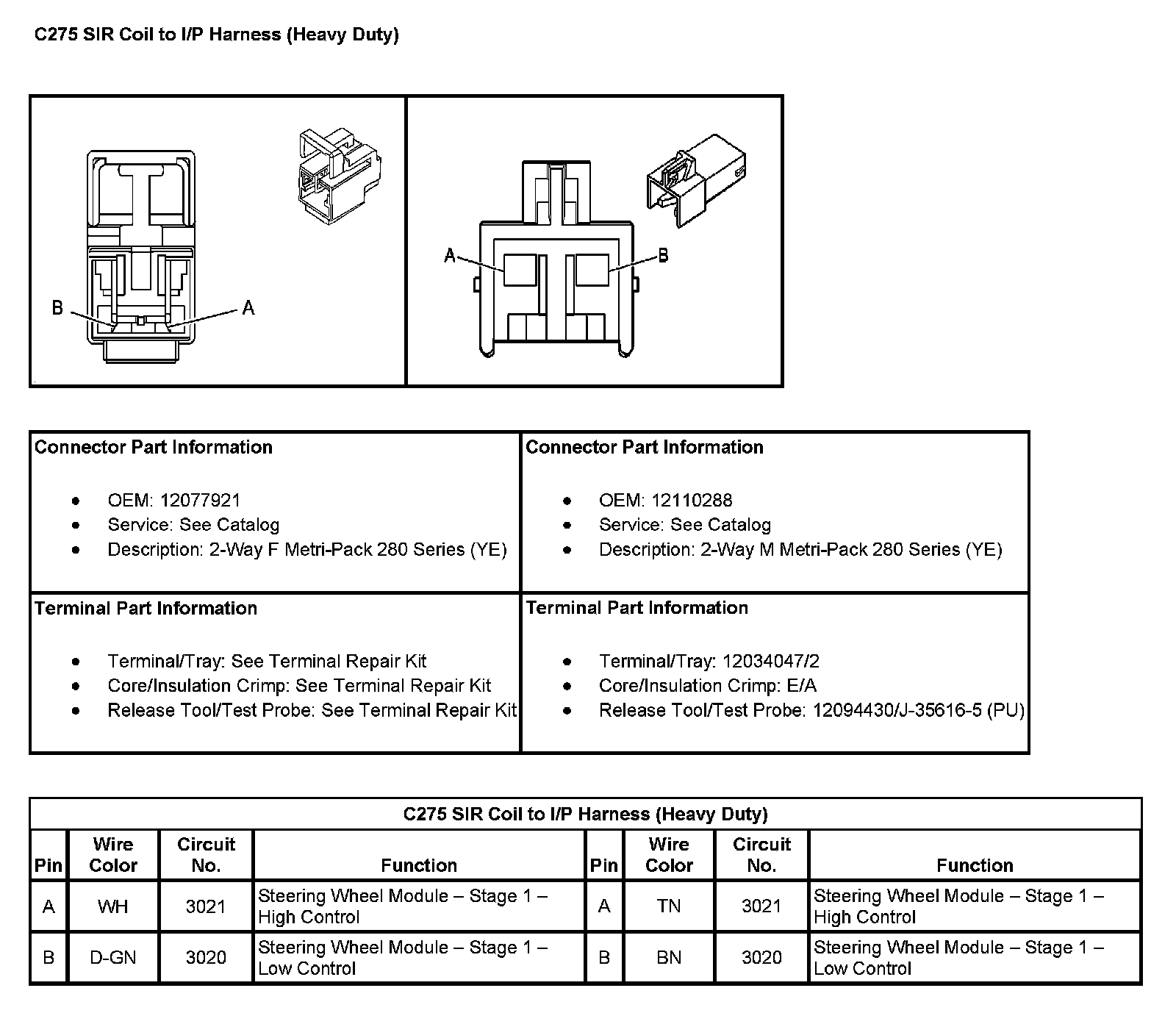

C275 SIR Coil To I/P Harness (Heavy Duty):

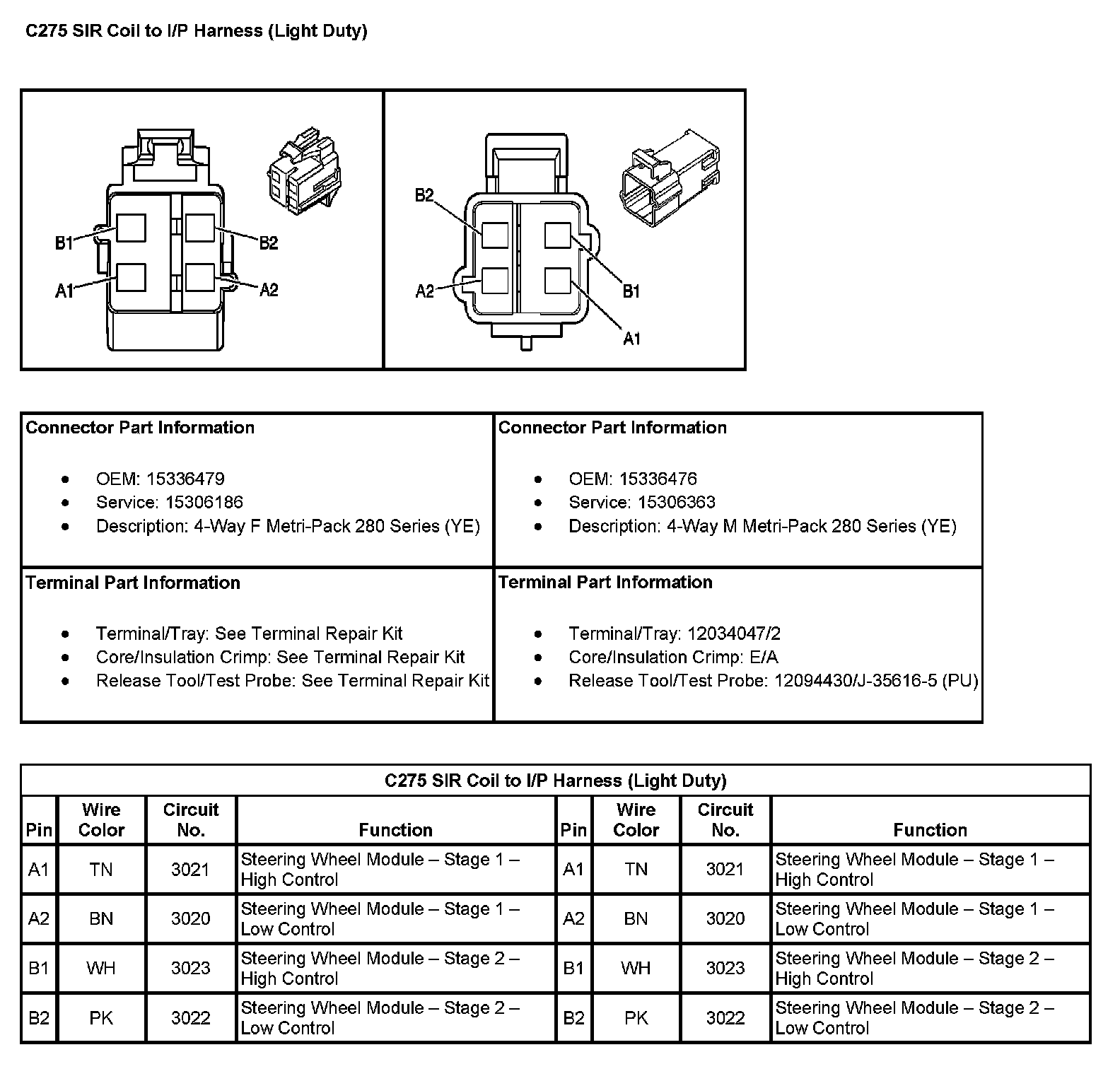

C275 SIR Coil To I/P Harness (Light Duty):

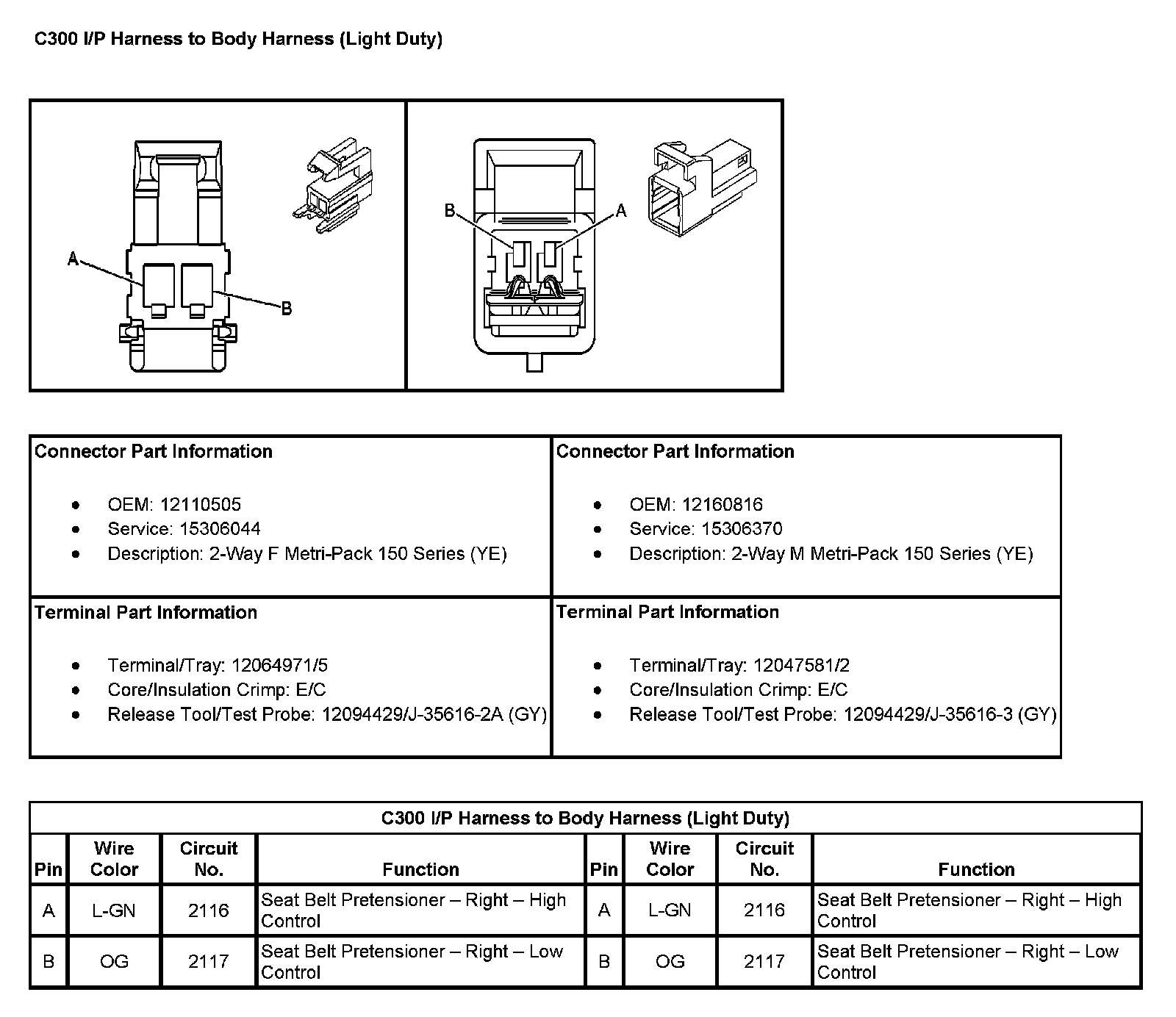

C300 I/P Harness To Body Harness (Light Duty):
