C174

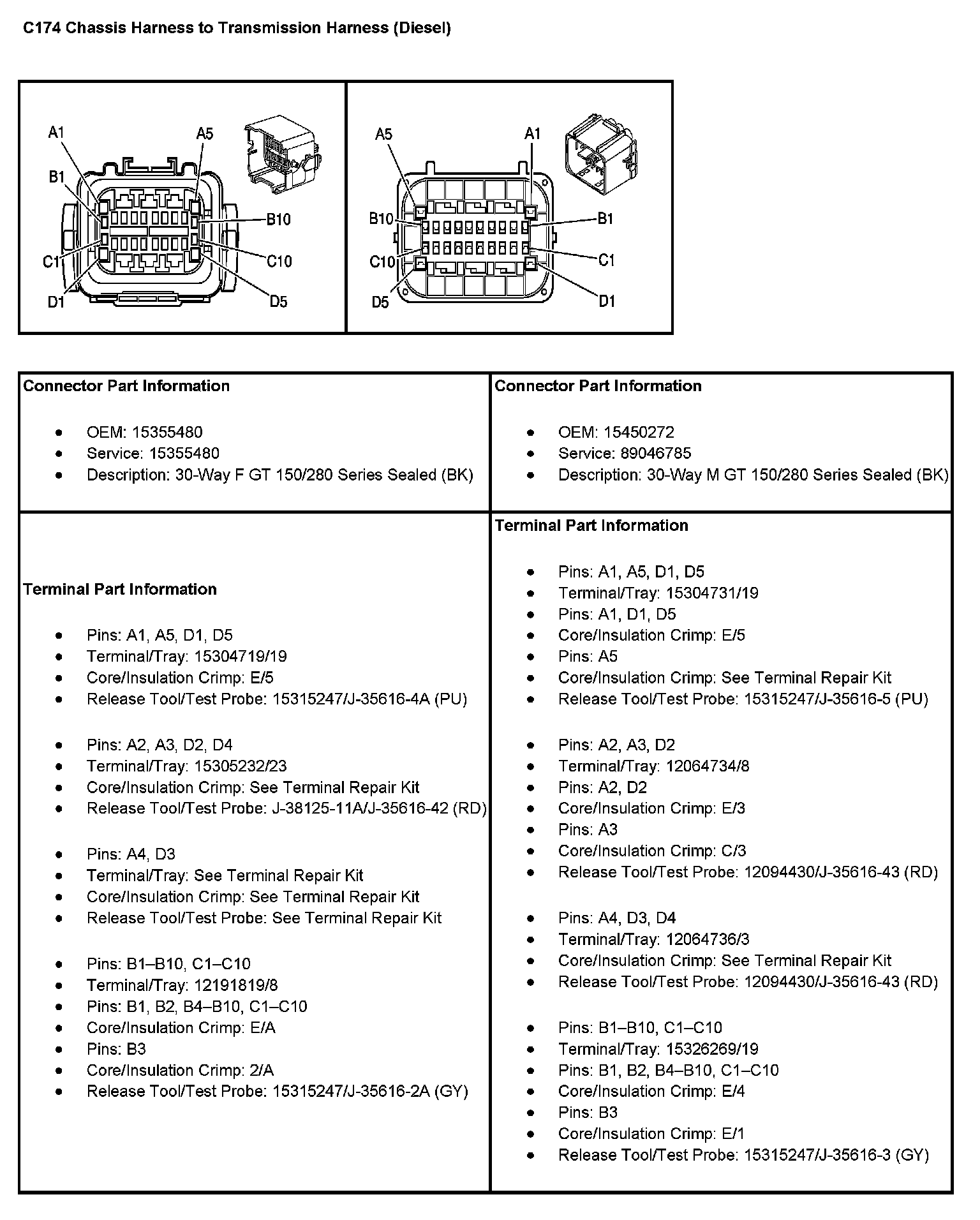

C174 Chassis Harness To Transmission Harness (Diesel):

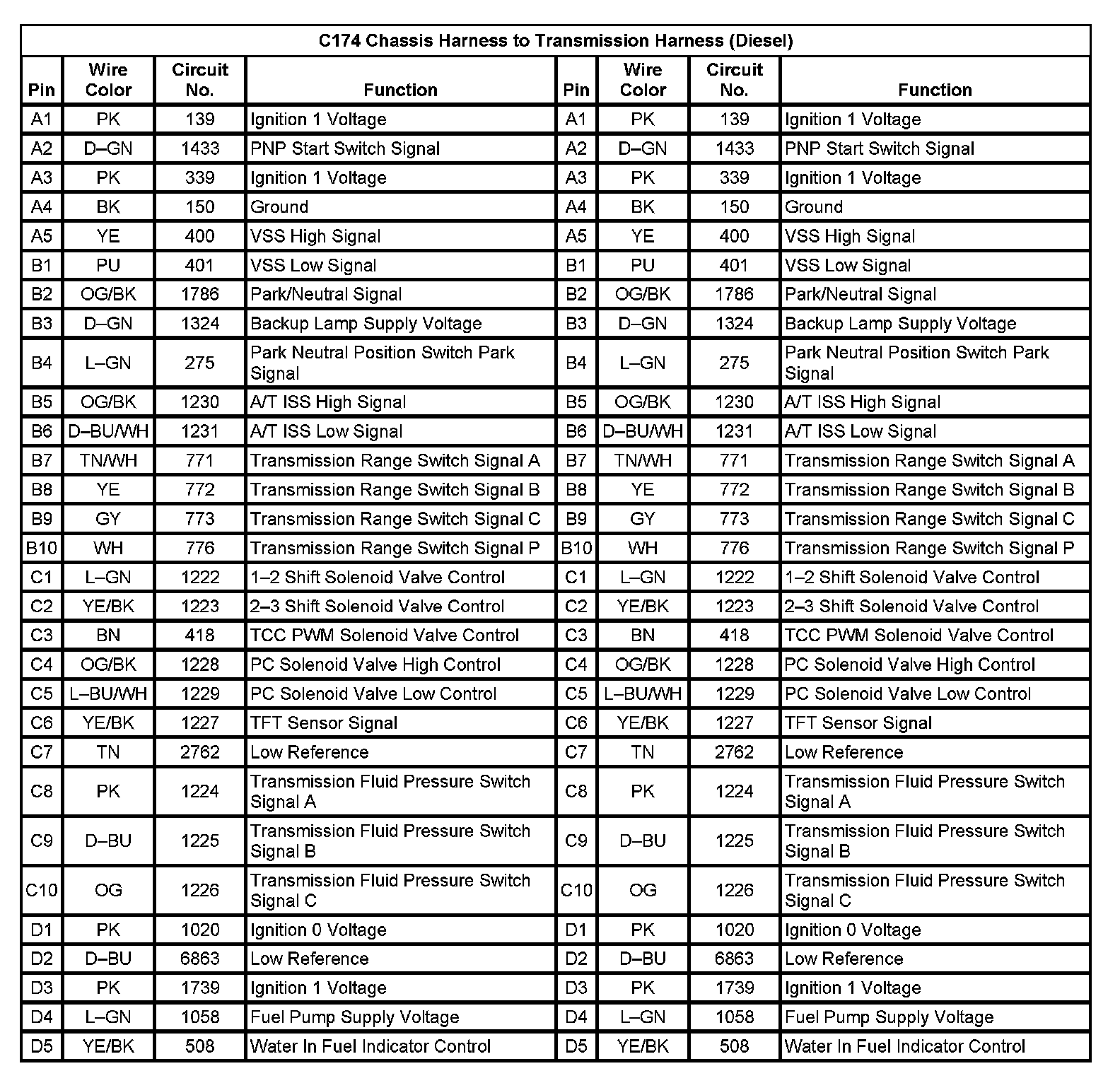

C174 Chassis Harness To Transmission Harness (Diesel):
