Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C100 - C199 >> C128

C128

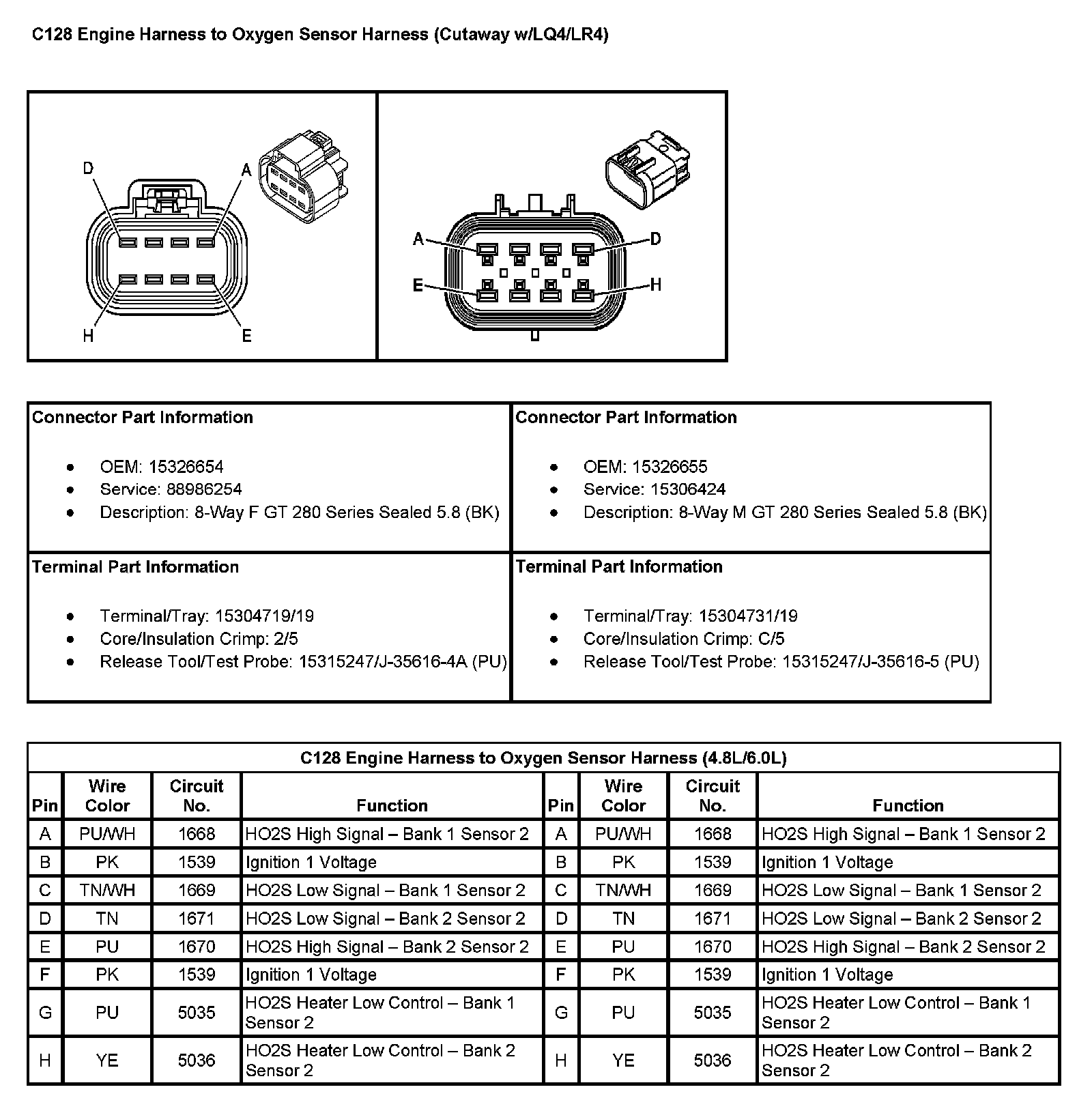

C128 Engine Harness To Oxygen Sensor Harness (Cutaway W/LQ4/LR4):
