Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C100 - C199 >> C115

C115

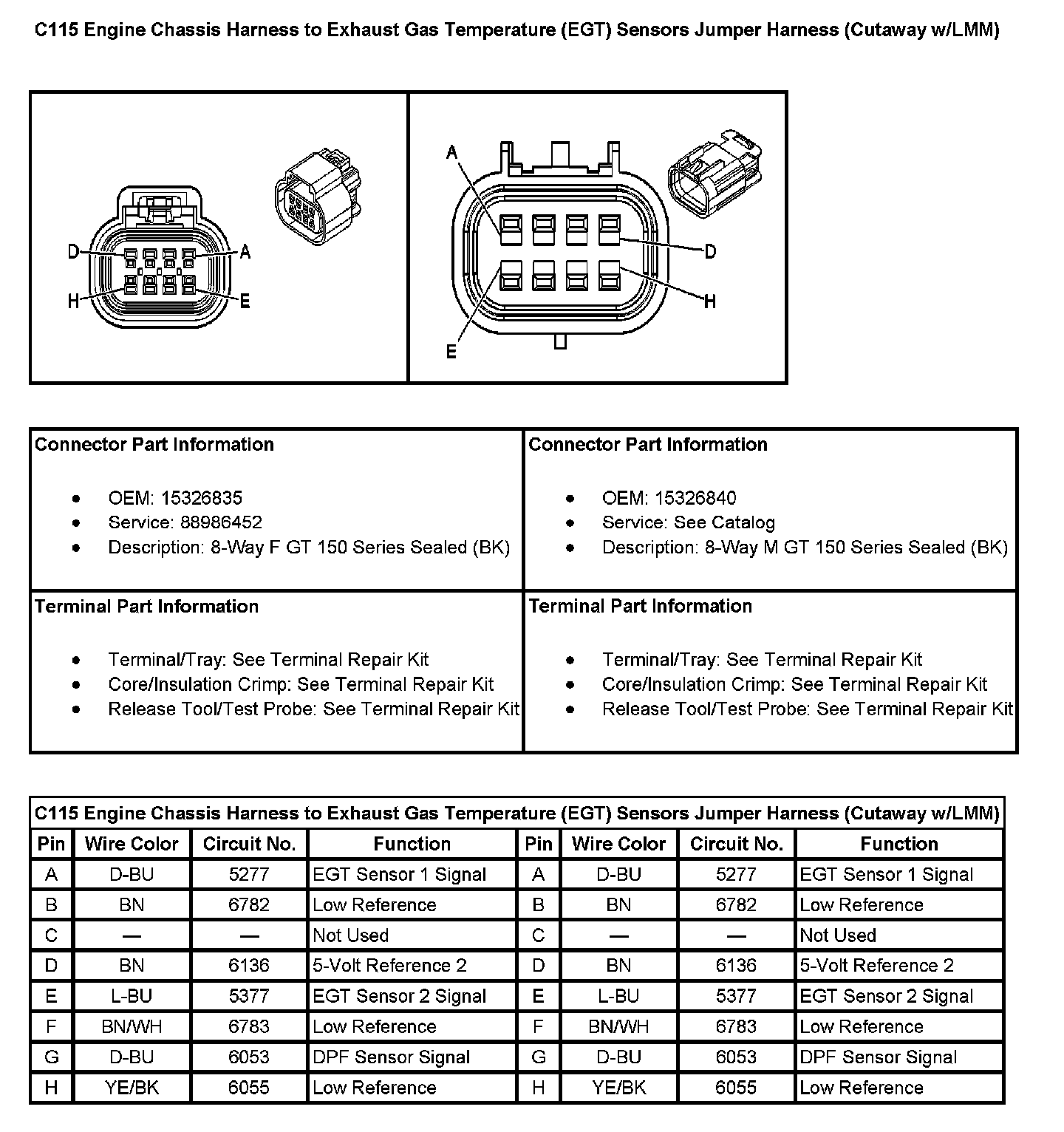

C115 Engine Chassis Harness To Exhaust Gas Temperature (EGT) Sensors Jumper Harness (Cutaway W/LMM):
