Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C100 - C199 >> C109

C109

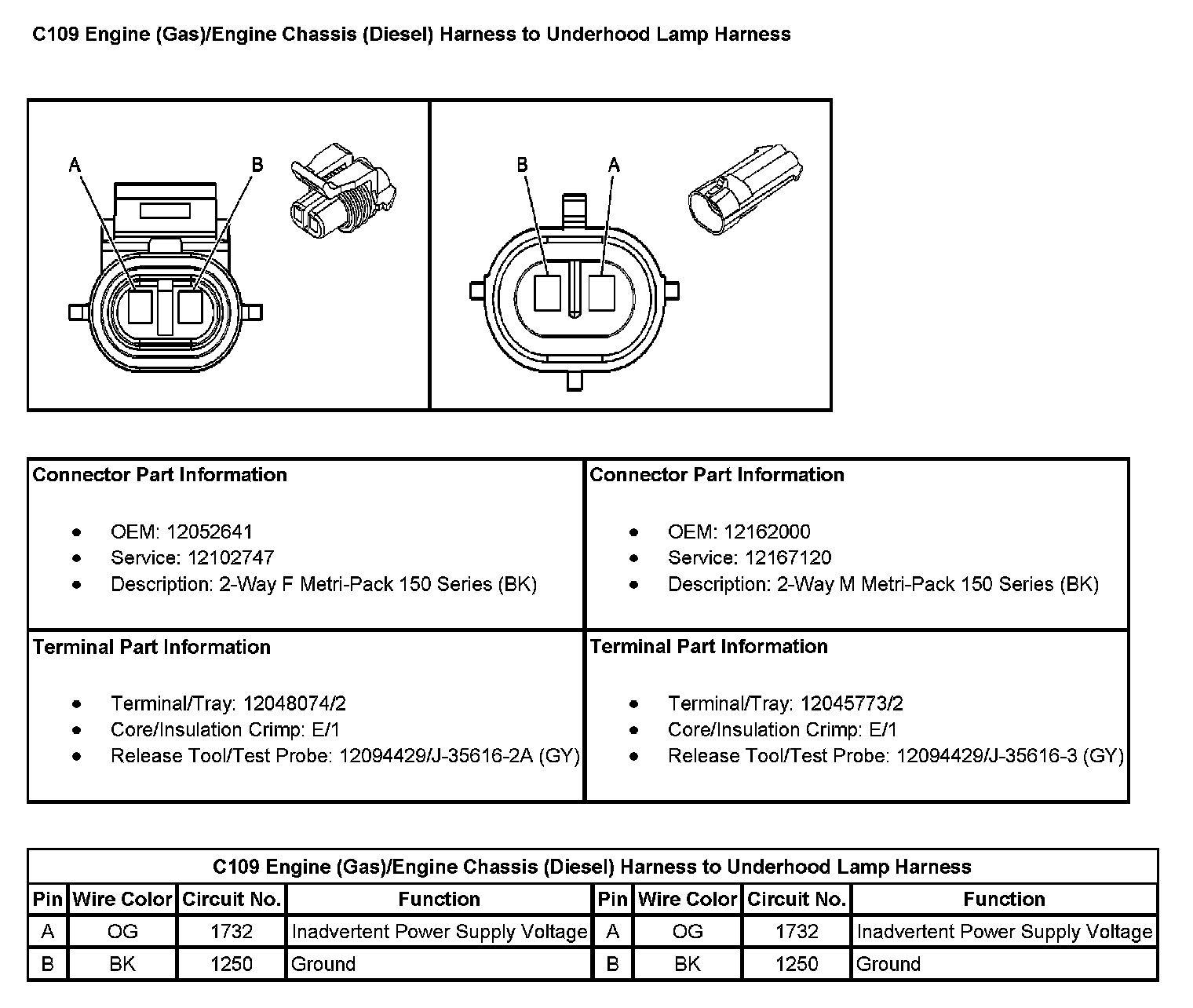

C109 Engine (Gas)/Engine Chassis (Diesel) Harness To Underhood Lamp Harness:
