C104
C104

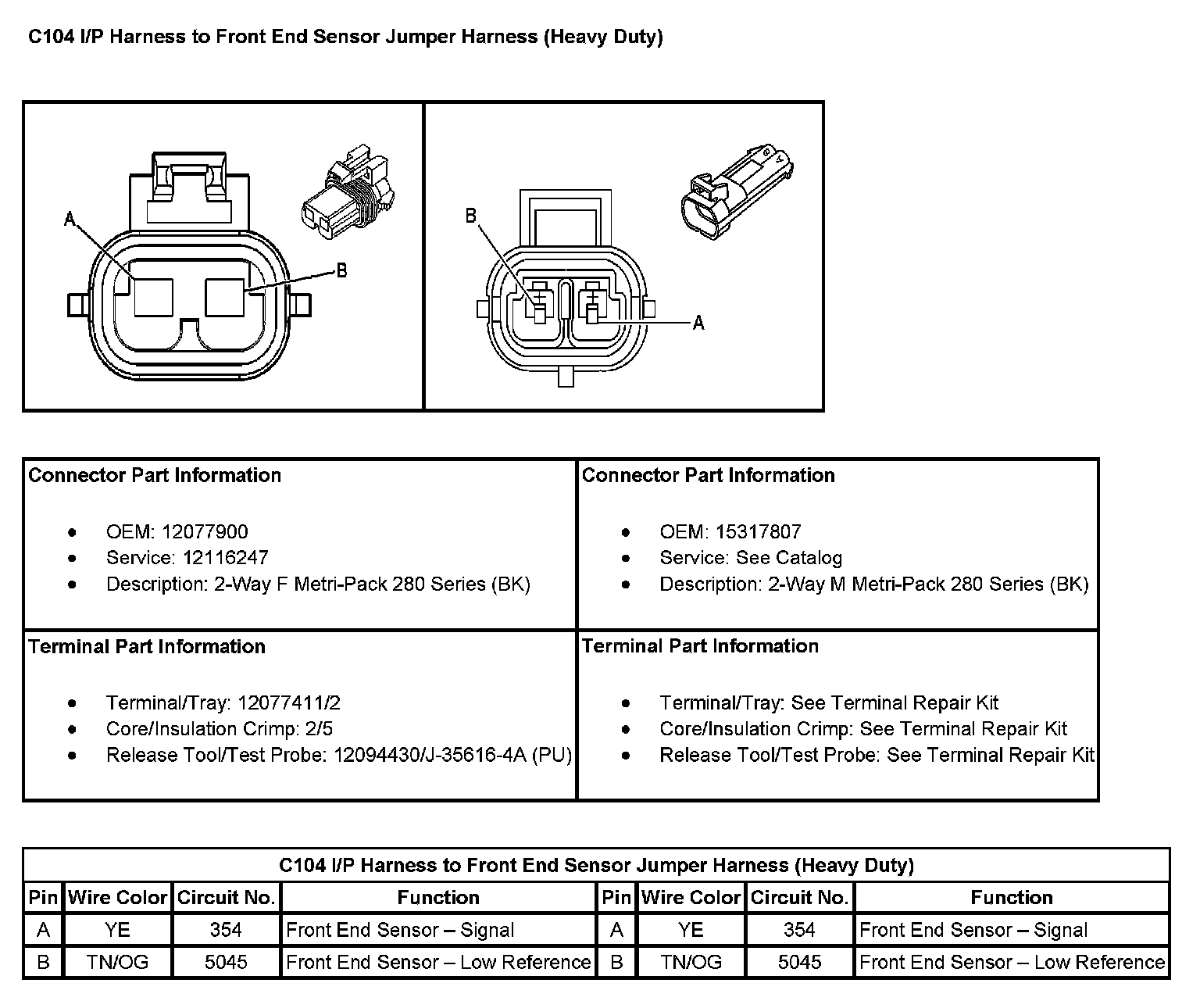

C104 I/P Harness To Front End Sensor Jumper Harness (Heavy Duty):

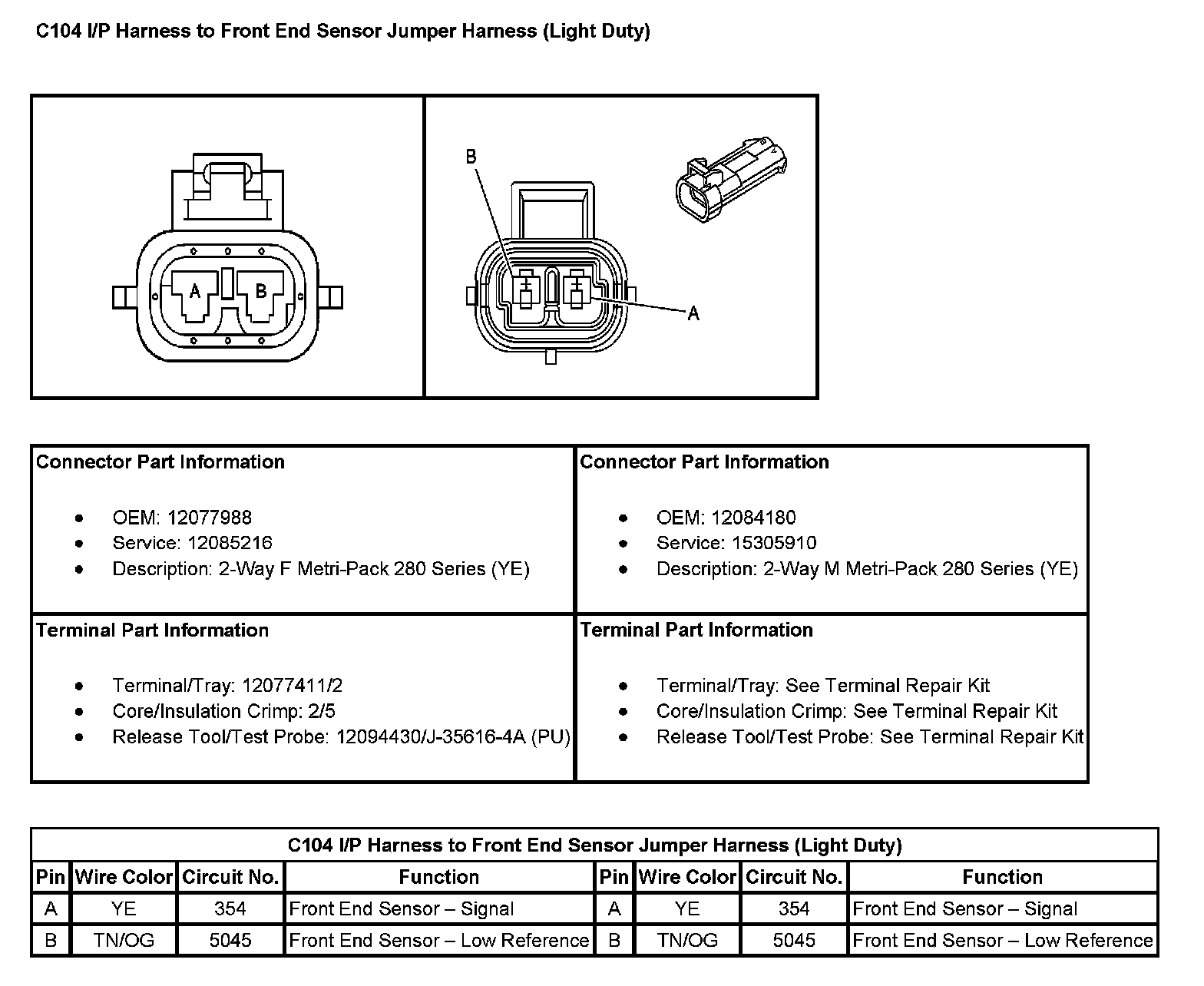

C104 I/P Harness To Front End Sensor Jumper Harness (Light Duty):
