Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C100 - C199 >> C101

C101

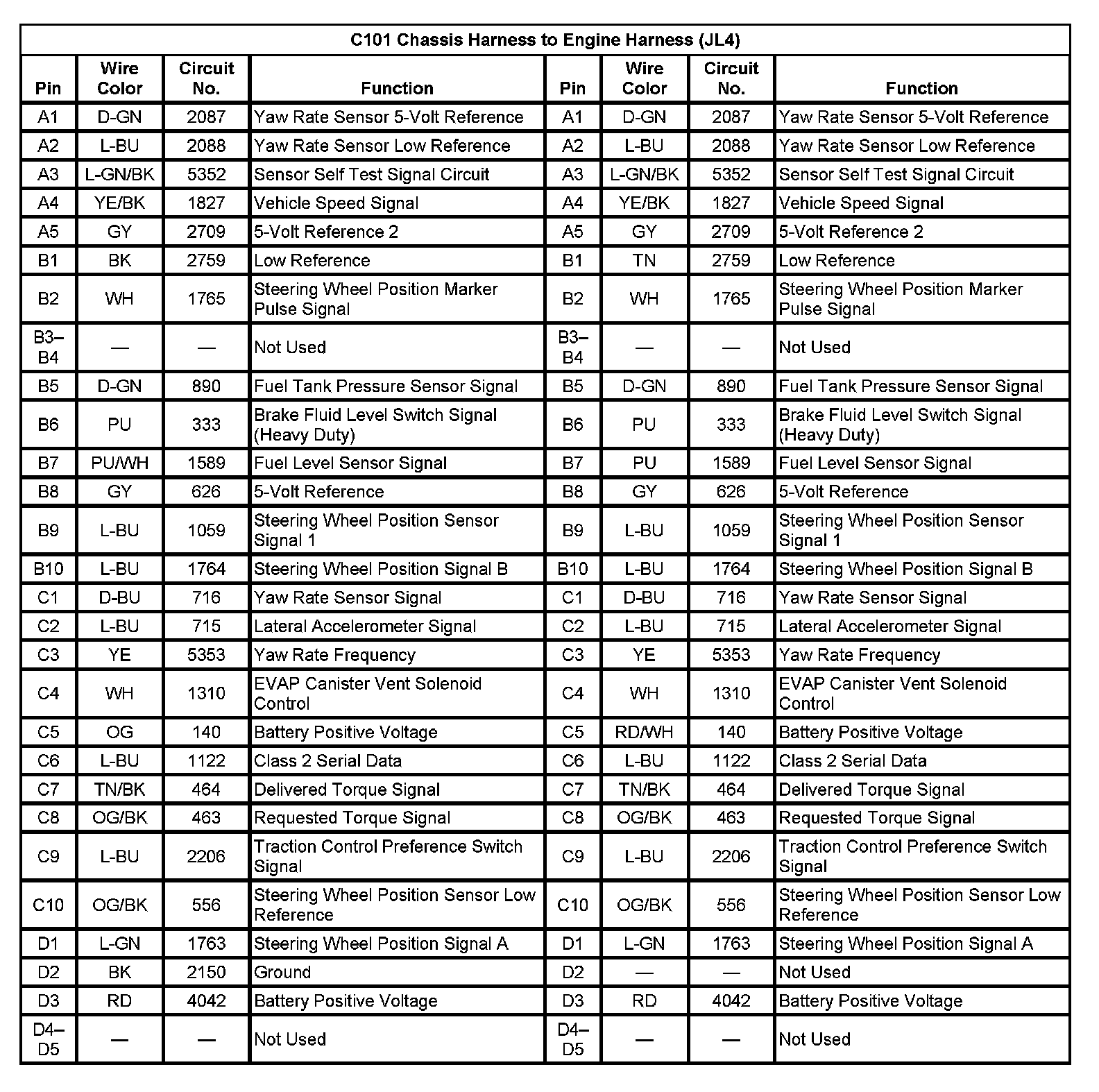

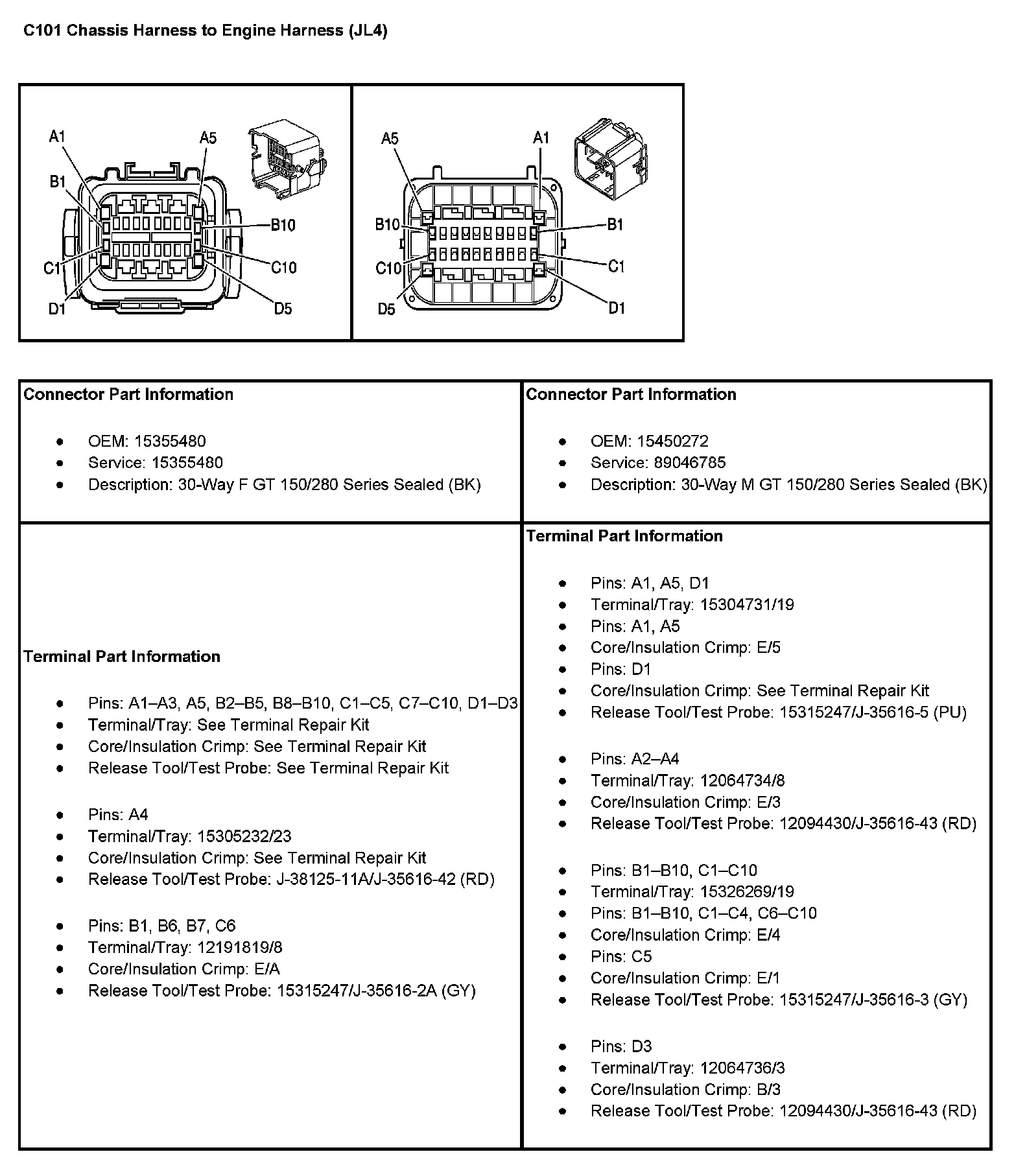

C101 Chassis Harness To Engine Harness (With RPO Code JL4):



C101 Chassis Harness To Engine Harness (With RPO Code JL4):

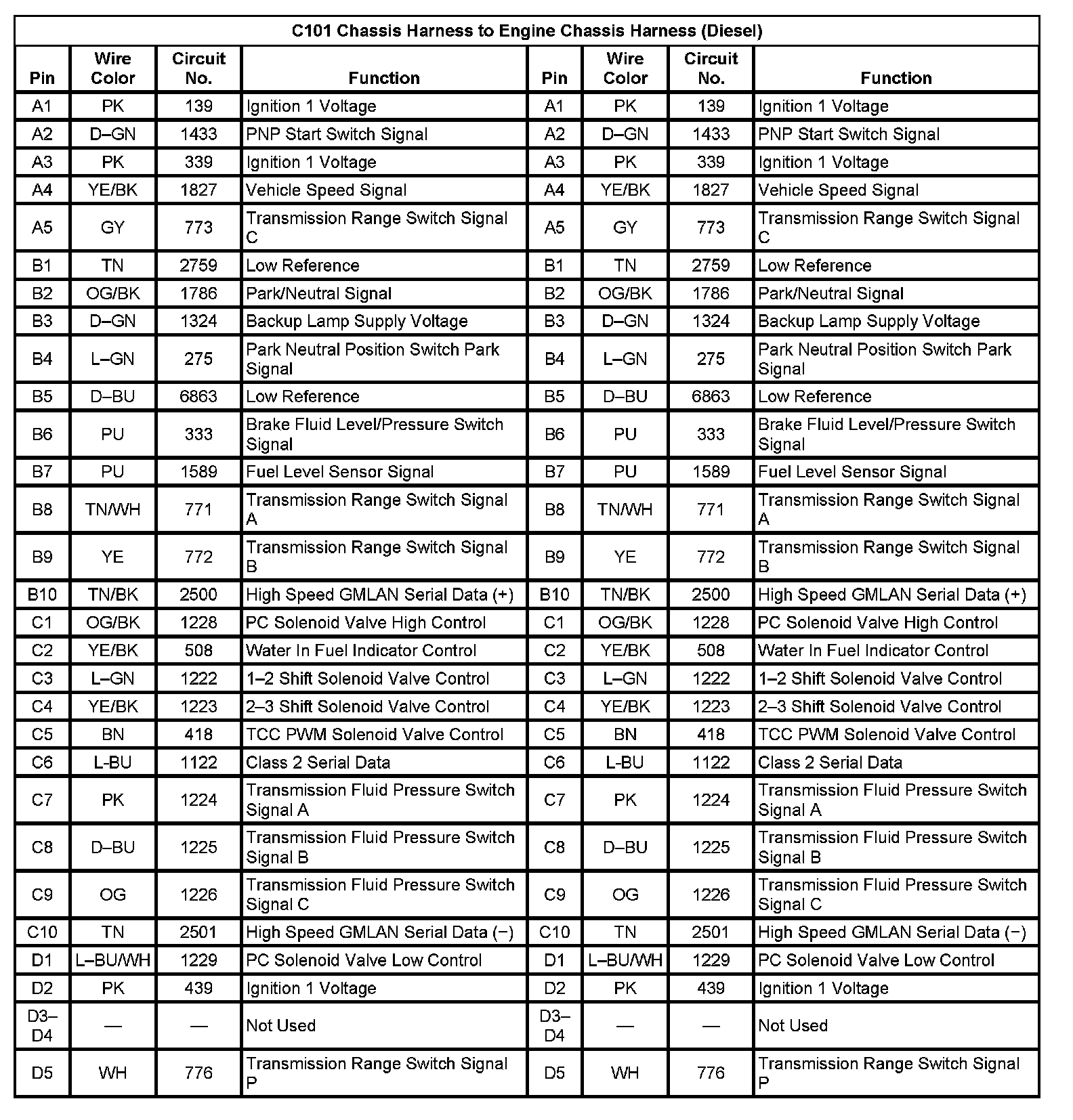

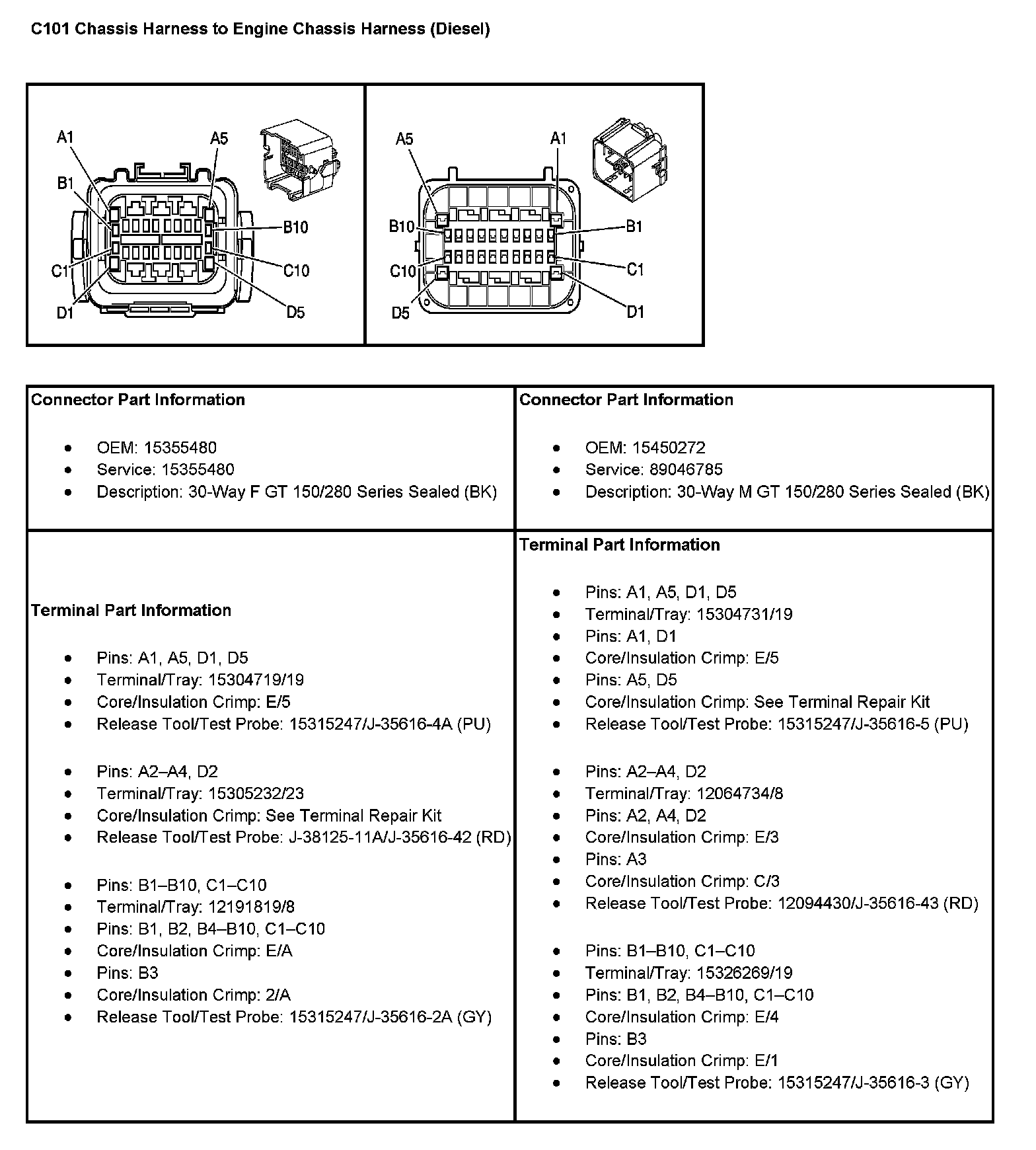

C101 Chassis Harness To Engine Chassis Harness (Diesel):



C101 Chassis Harness To Engine Chassis Harness (Diesel):
