Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C100 - C199 >> C100

C100

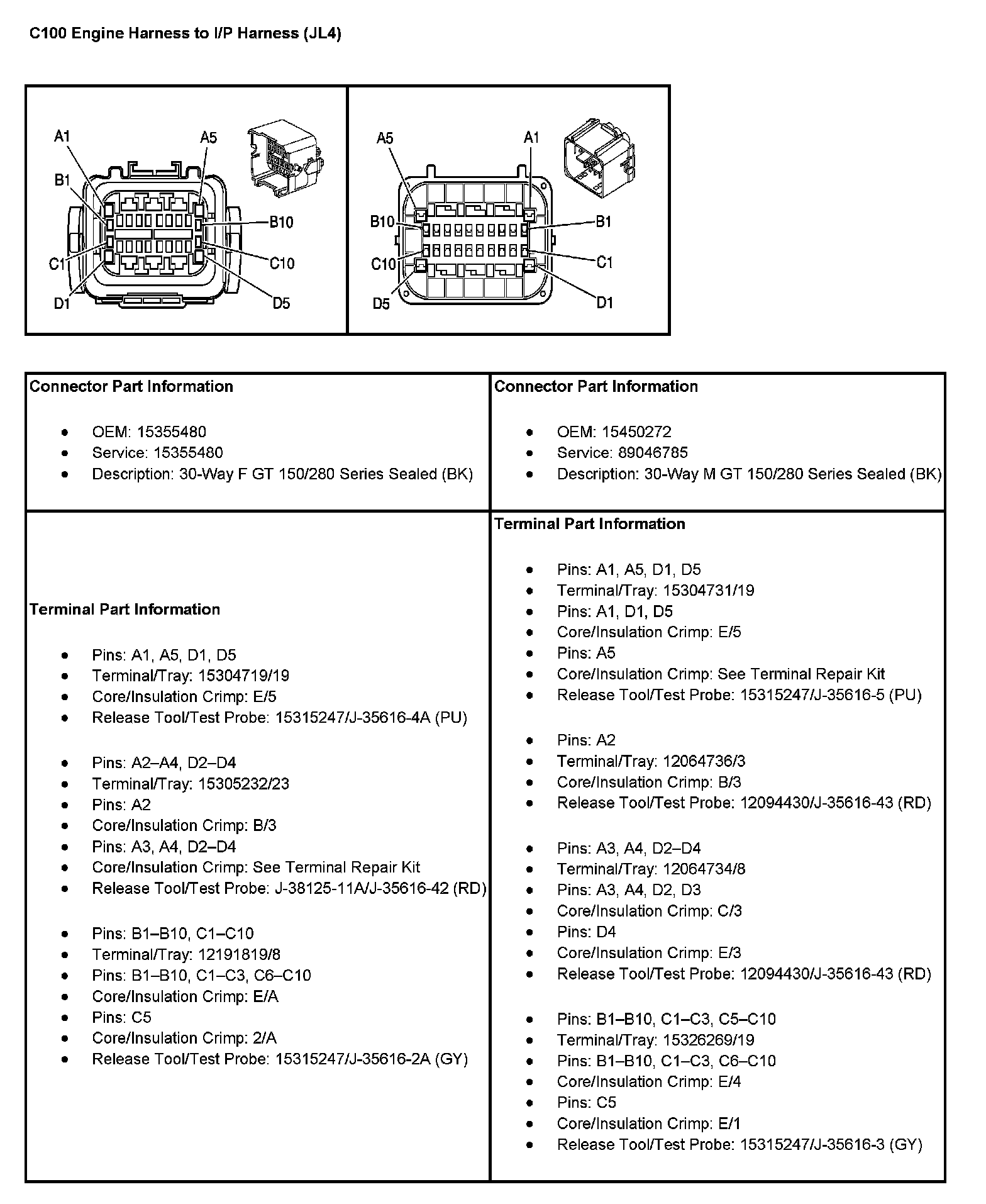

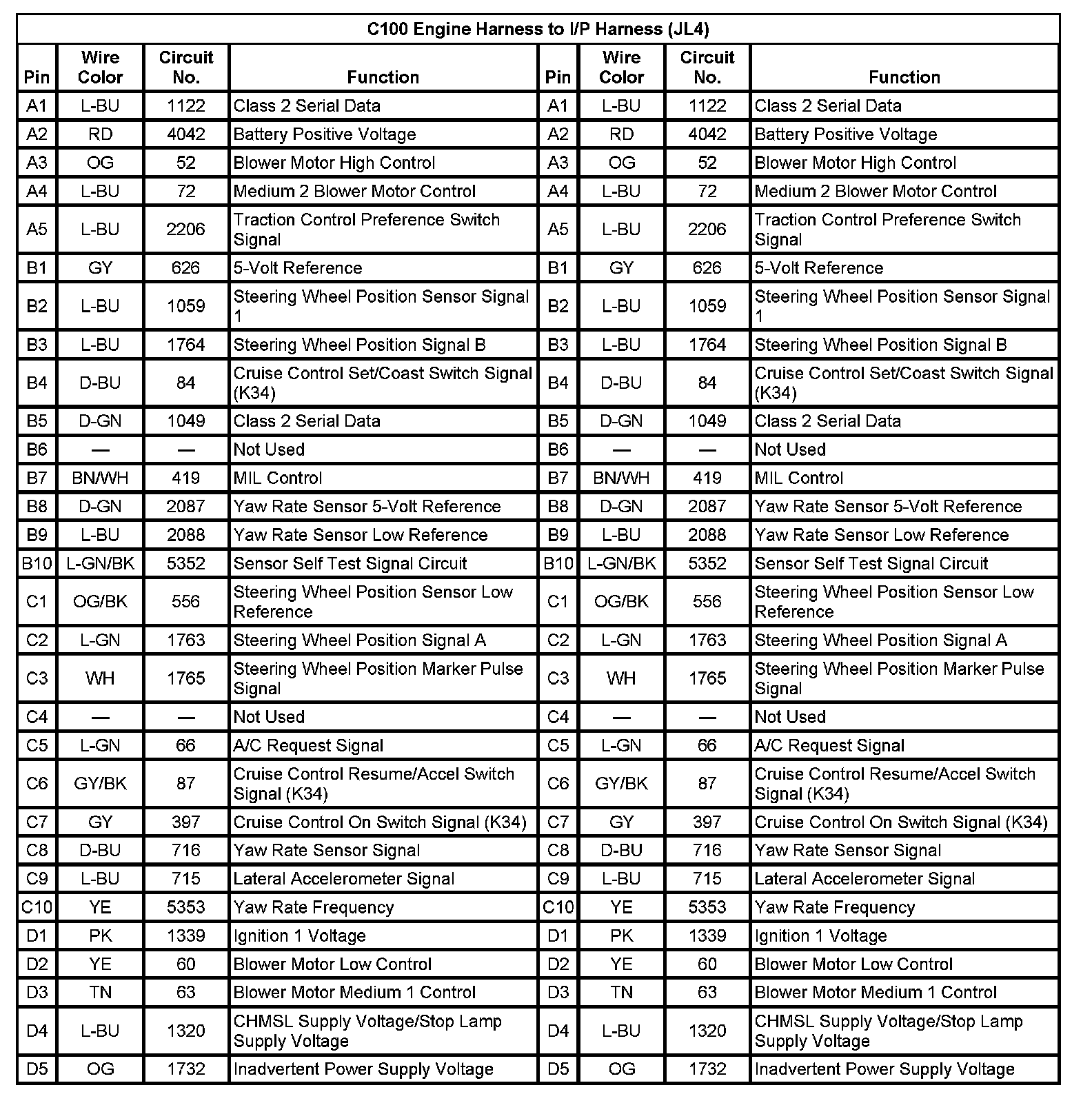

C100 Engine Harness To I/P Harness (With RPO Code JL4):



C100 Engine Harness To I/P Harness (With RPO Code JL4):

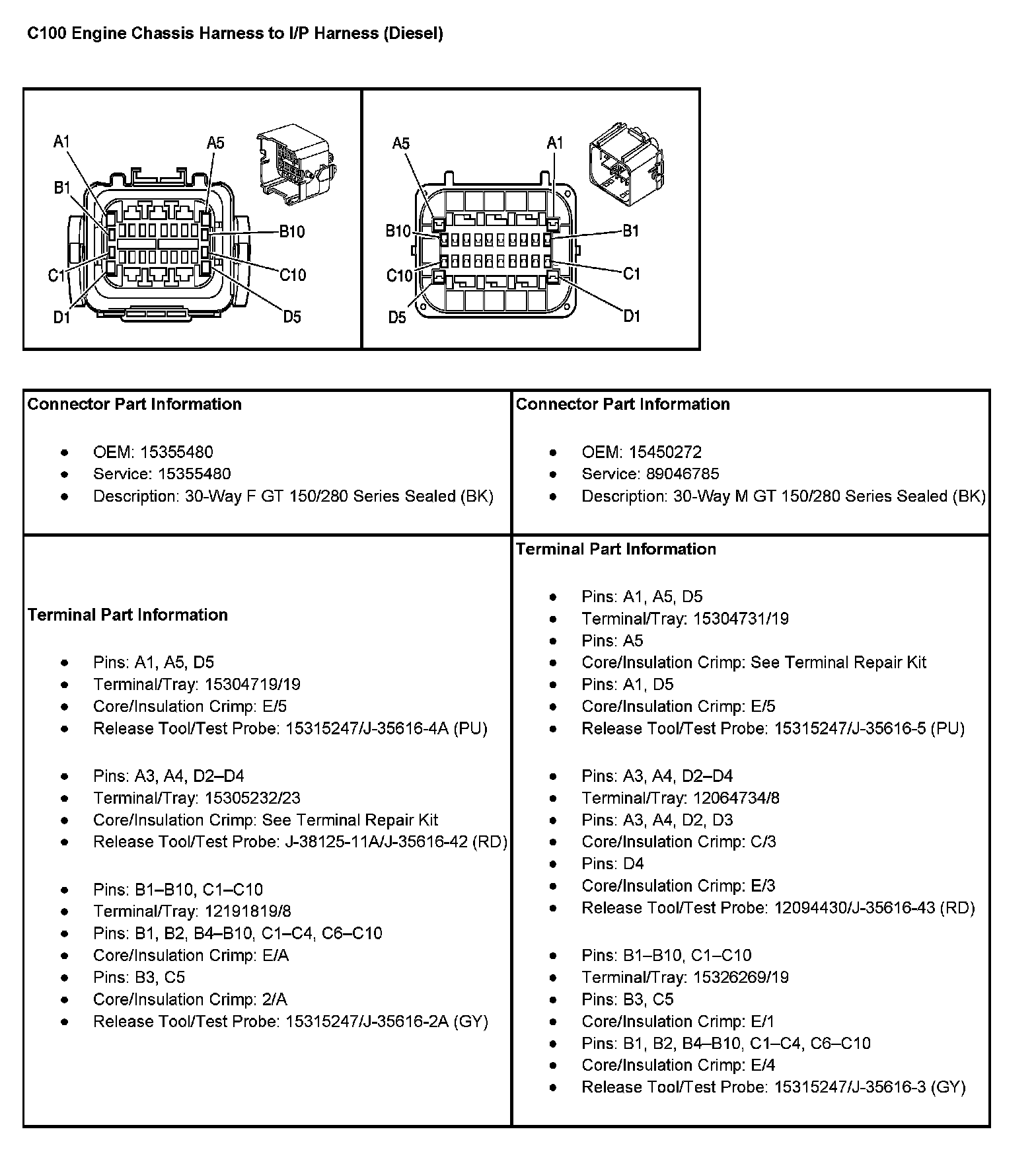

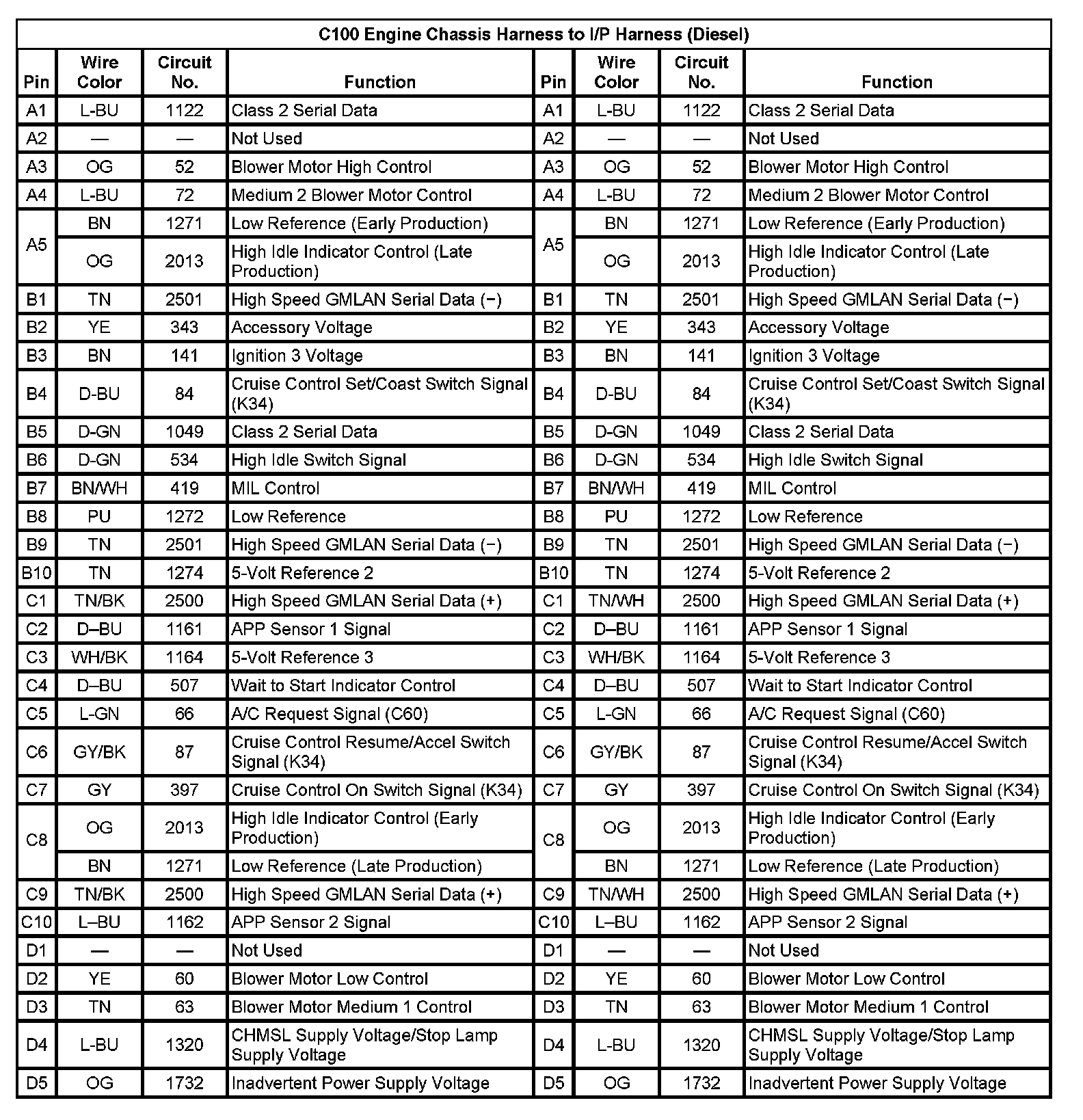

C100 Engine Chassis Harness To I/P Harness (Diesel):



C100 Engine Chassis Harness To I/P Harness (Diesel):
