Chassis/Transmission Harness - Center Frame (6.6L)

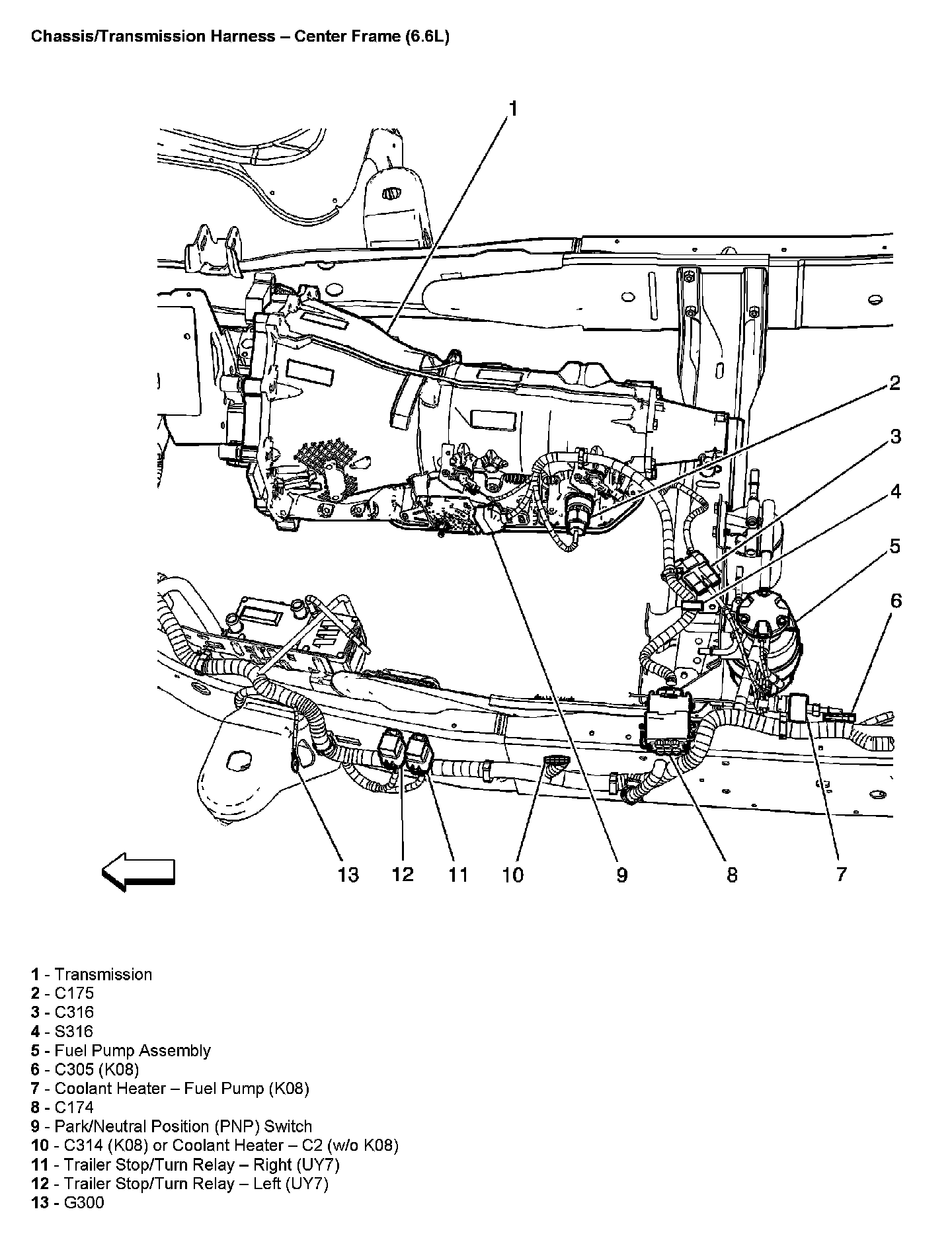

Chassis/Transmission Harness - Center Frame (6.6L):
