Body Fuse Block



Fuse Block - Body Label:

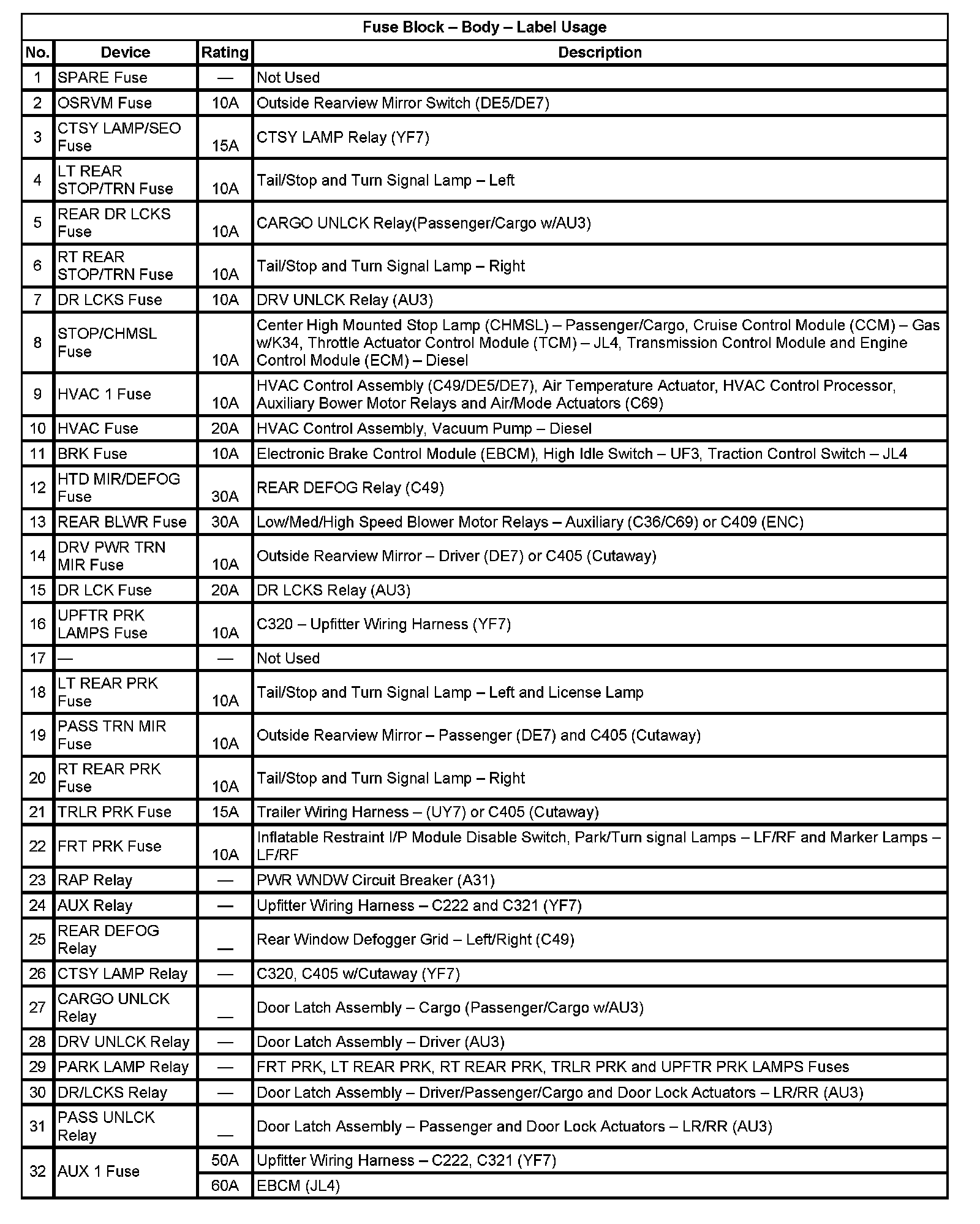

Fuse Block - Body - Label Usage (Part 1):

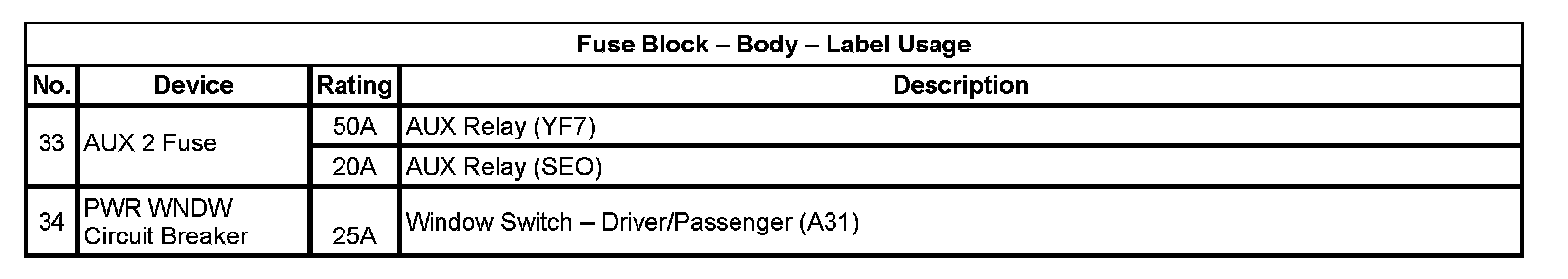

Fuse Block - Body - Label Usage (Part 2):
