Rear Fuse Block
Rear Fuse Block

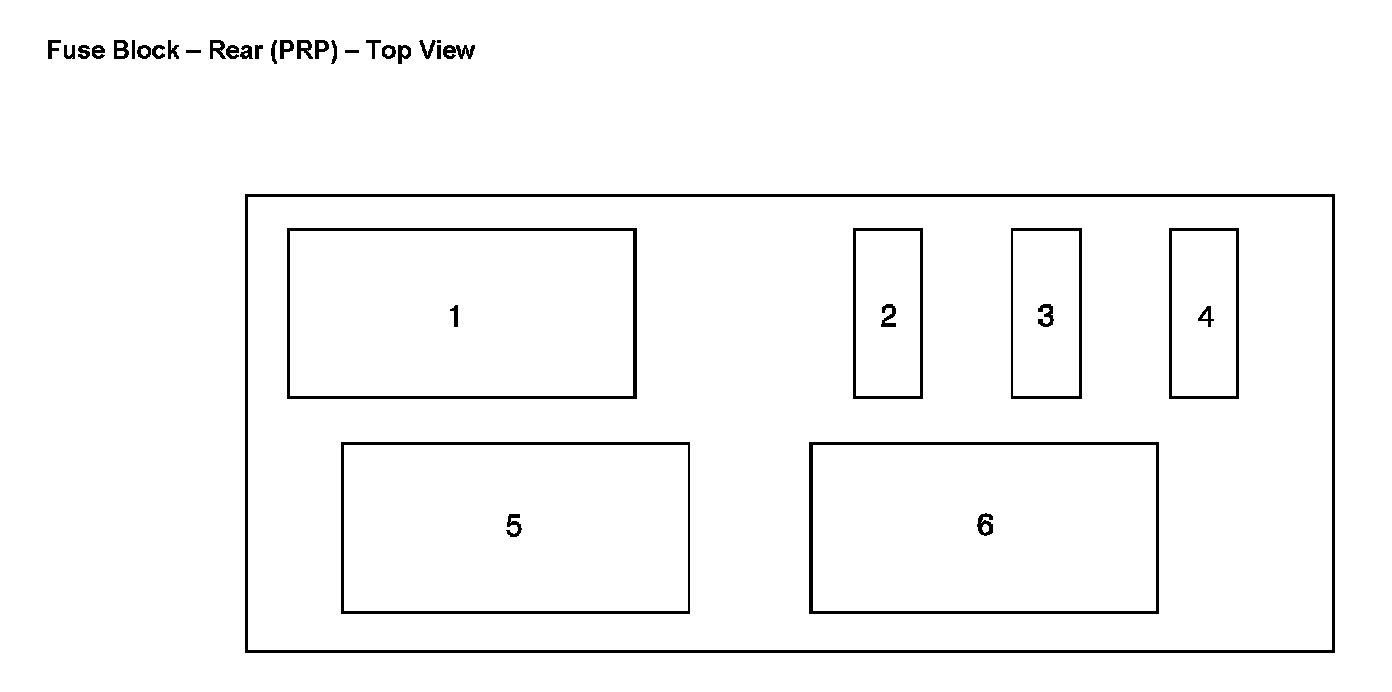

Fuse Block - Rear (PRP) - Top View:

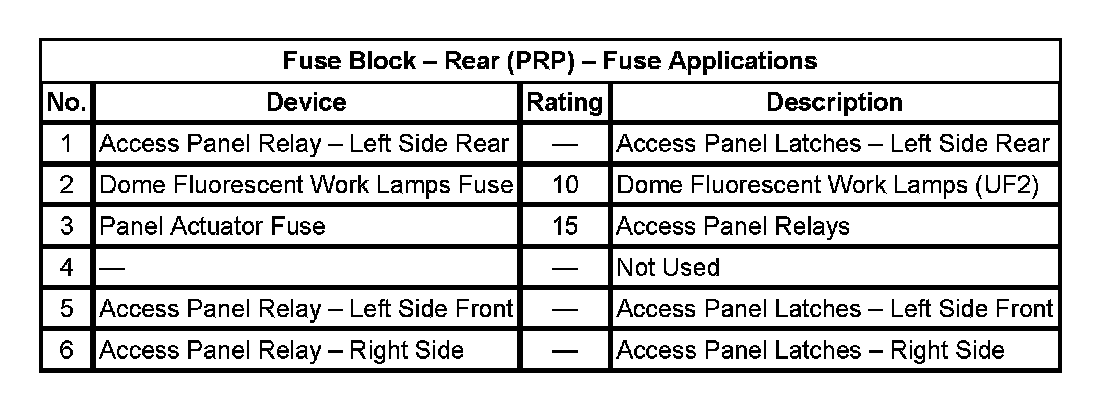

Fuse Block - Rear (PRP) - Fuse Applications:

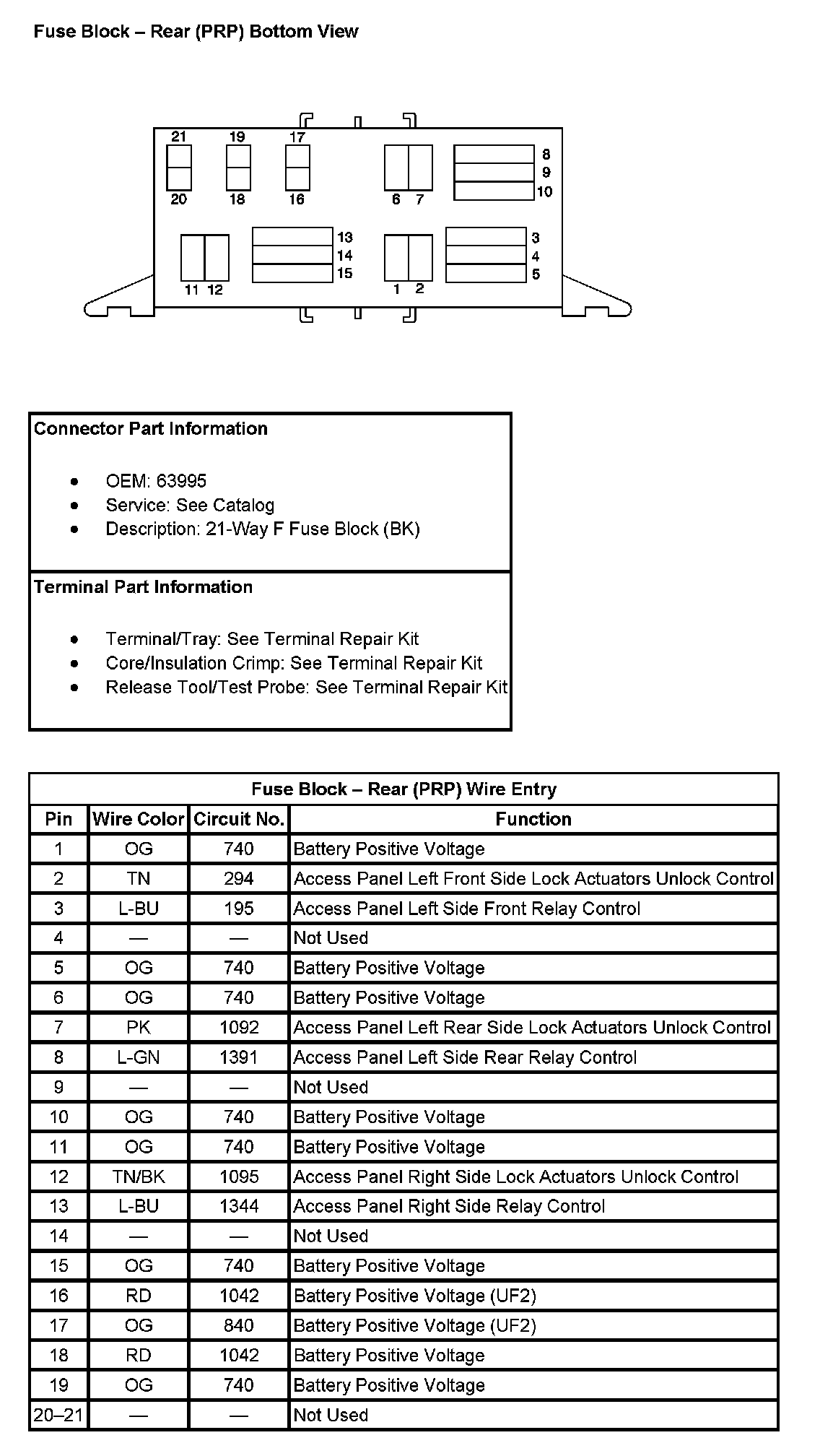

Fuse Block - Rear (PRP) Bottom View:
