Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Locations

Power Window Switch: Locations

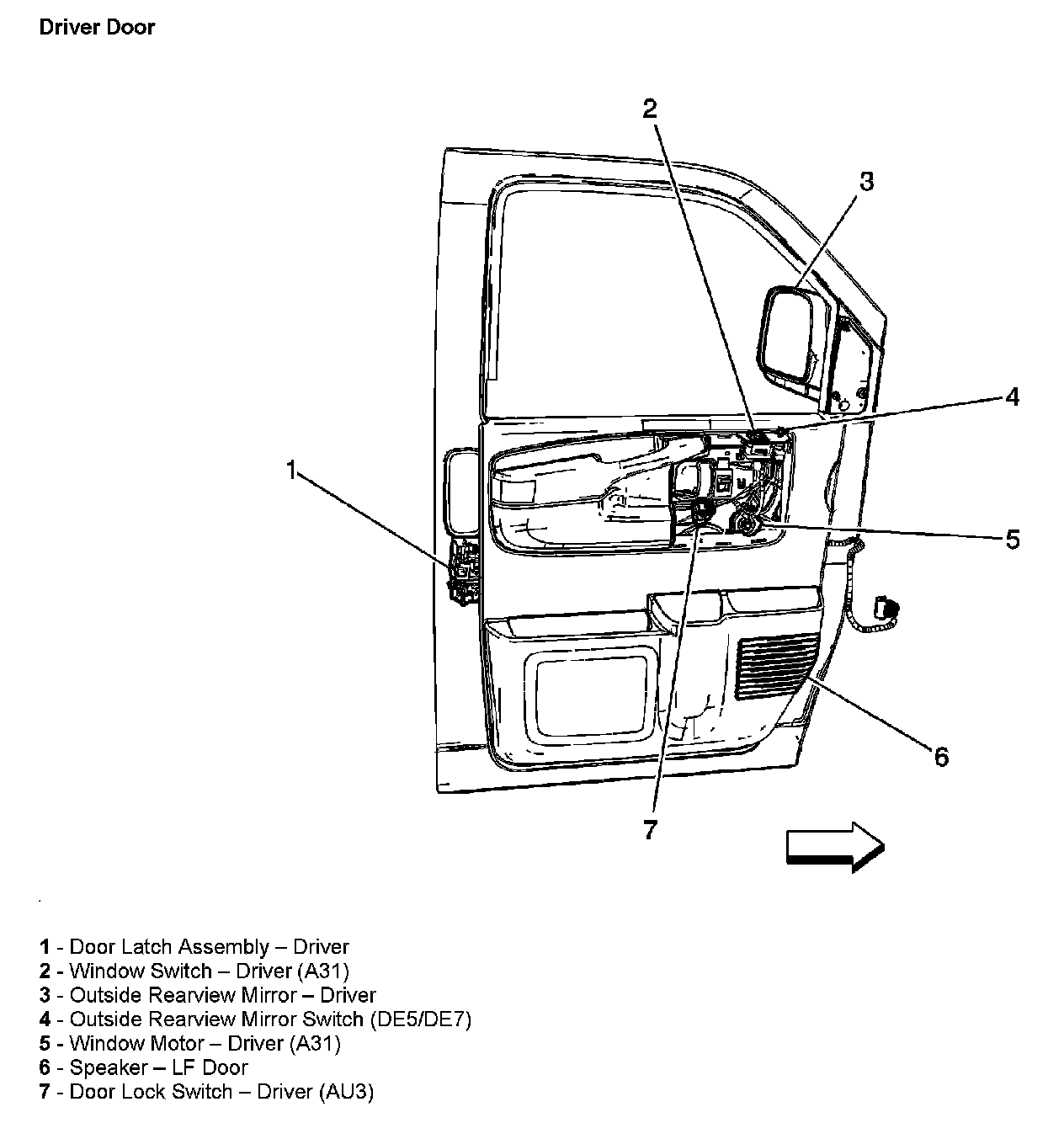

Driver Door:

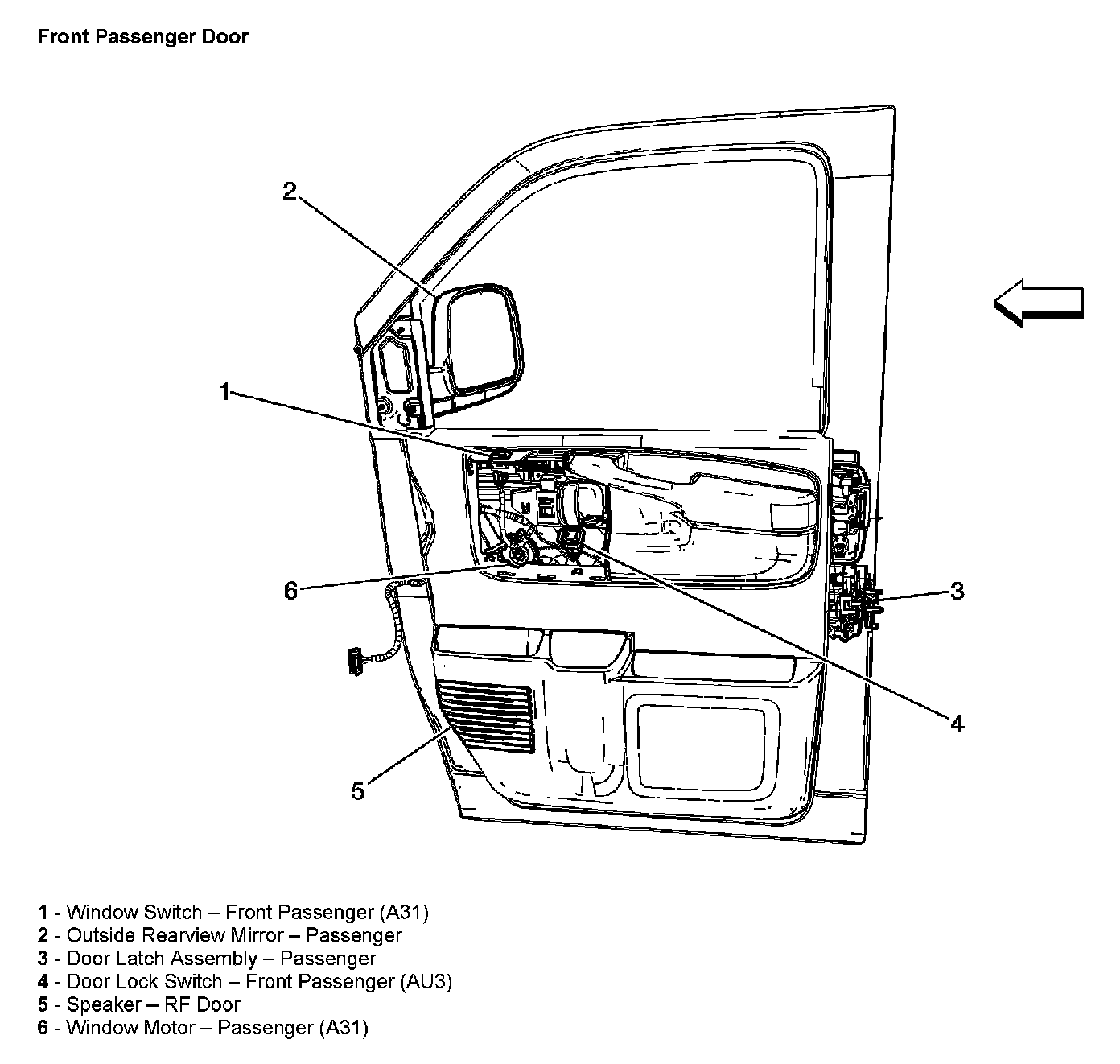

Front Passenger Door:
