Power Window Switch: Diagrams

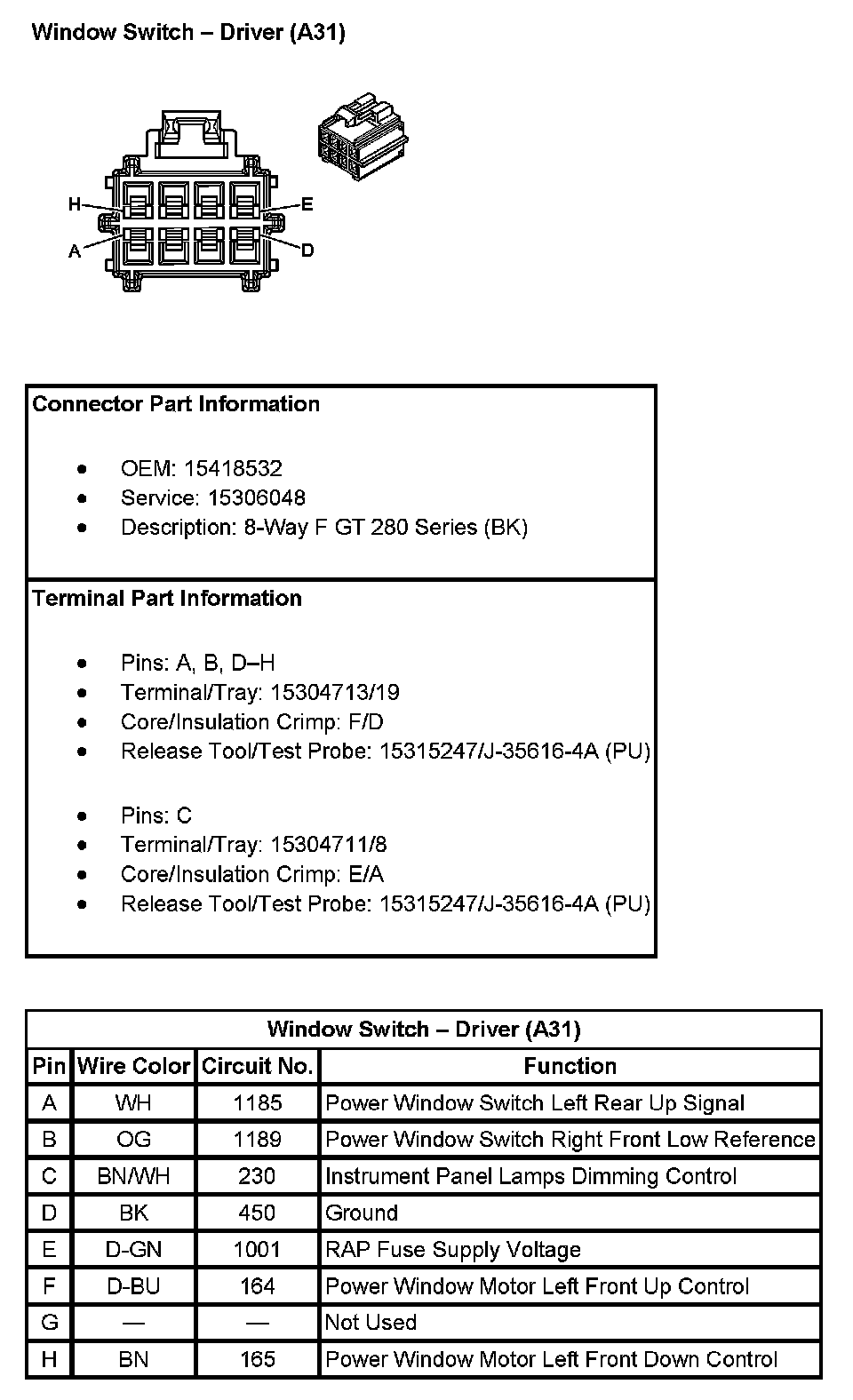

Window Switch - Driver (With RPO Code A31):

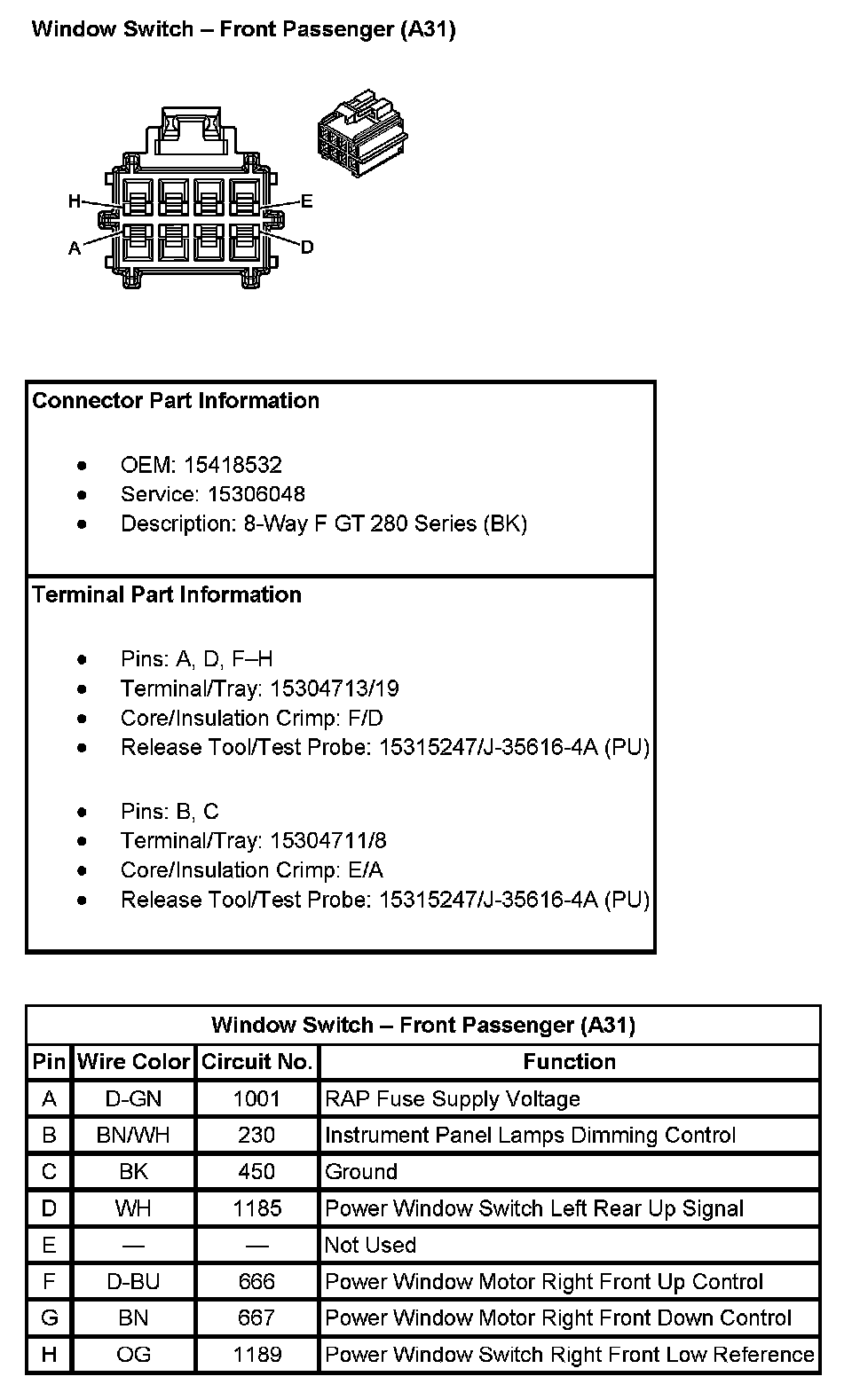

Window Switch - Front Passenger (With RPO Code A31):

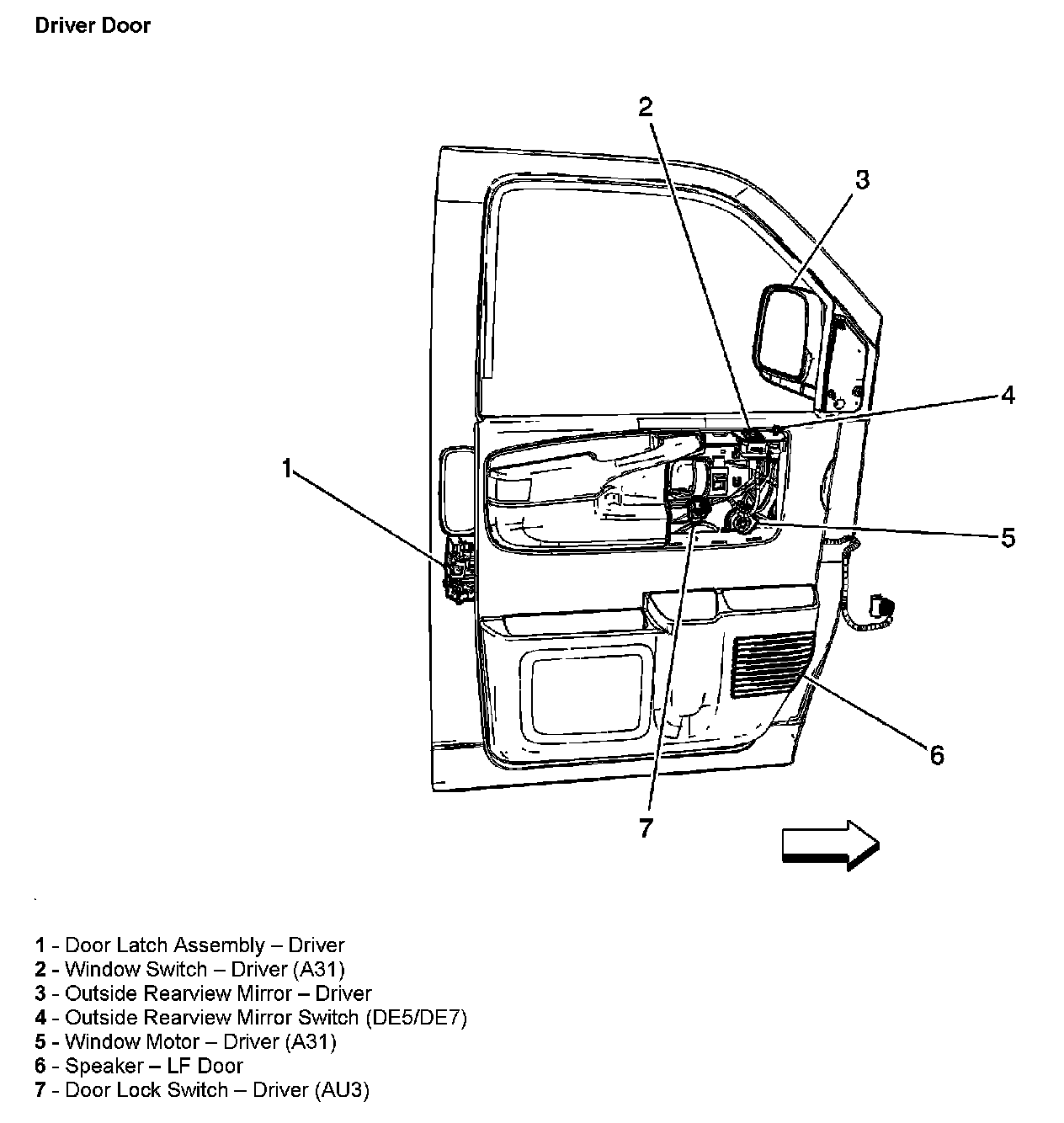

Driver Door:

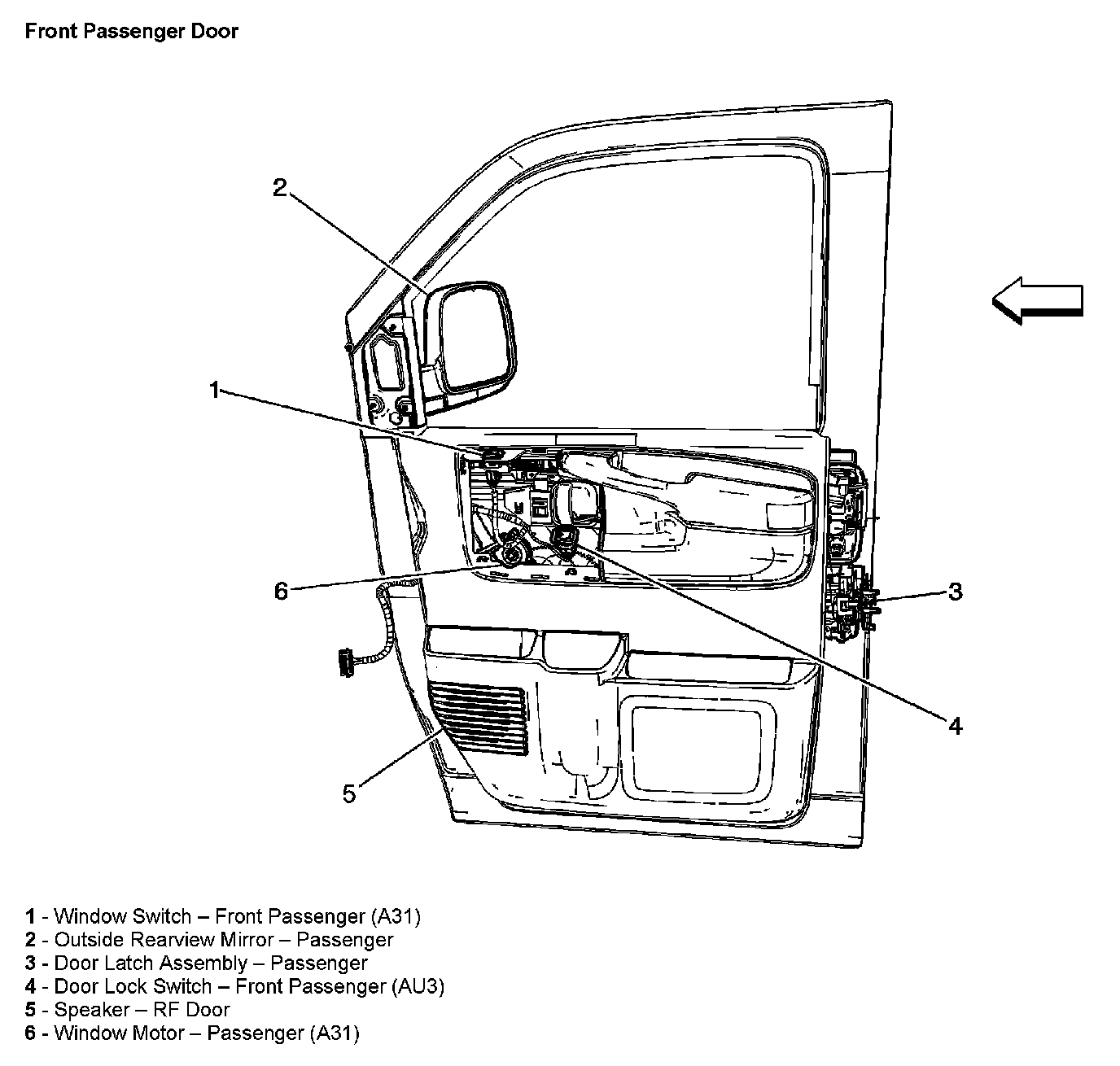

Front Passenger Door:
