Transmission Temperature Sensor/Switch: Locations



Automatic Transmission Electronic Component Views

Automatic Transmission Internal Electronic Components
(4L80-E)

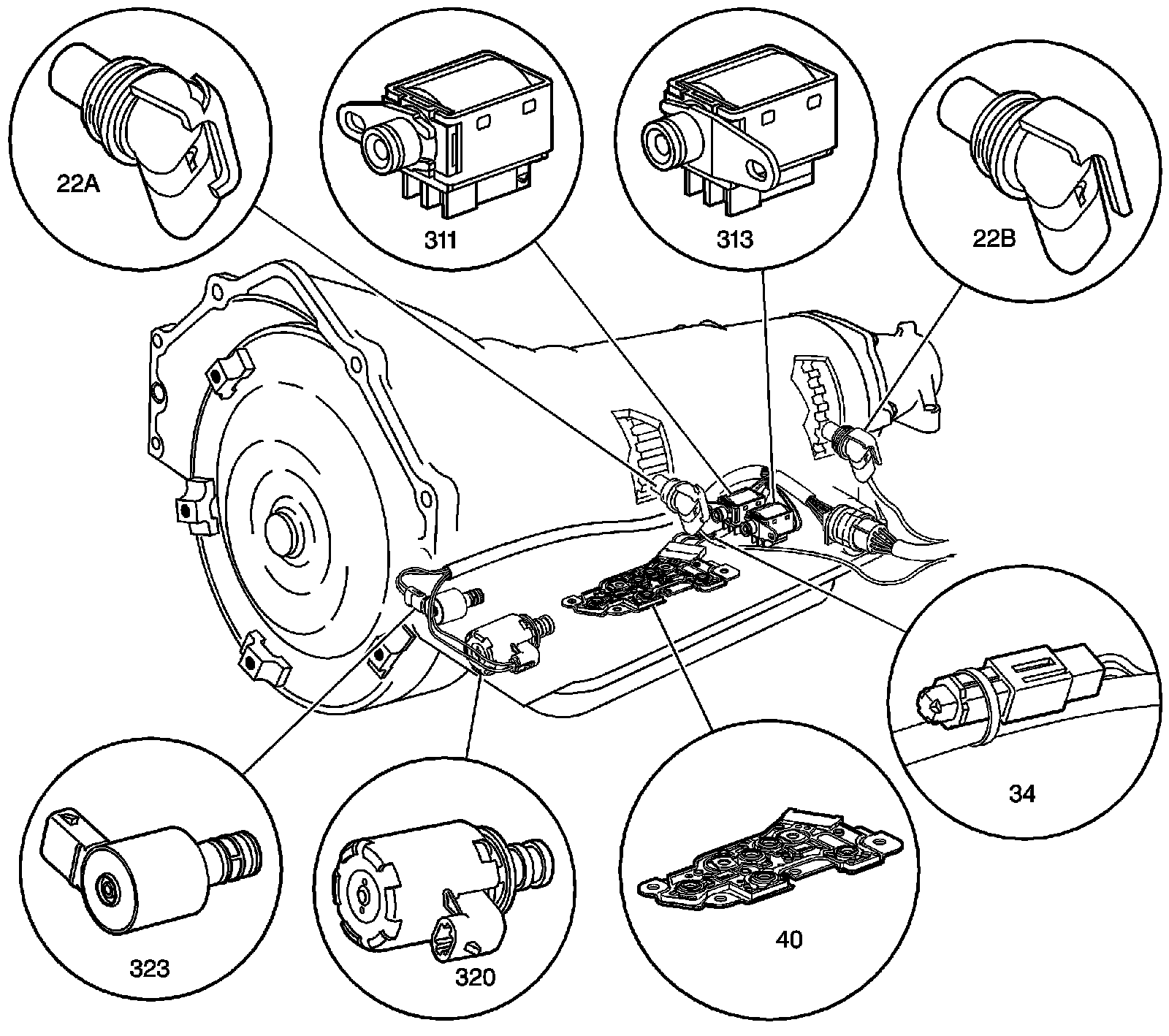

Automatic Transmission Internal Electronic Components (4L80-E):




34 - Automatic Transmission Fluid Temperature (TFT) Sensor
