Fuel Pressure Sensor/Switch: Locations



Engine Controls Component Views

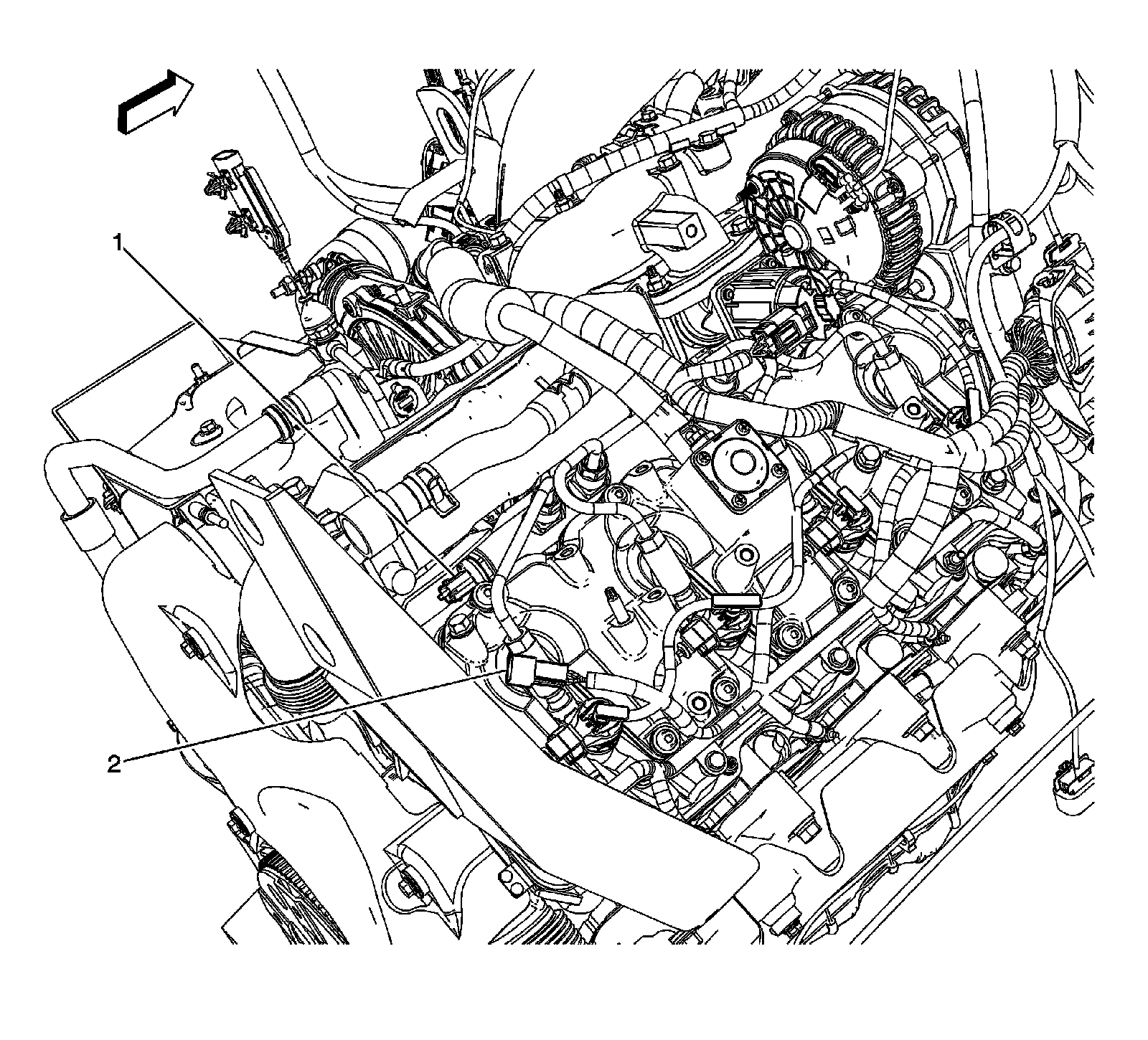

Top Rear of Engine (LMM)




1 - Fuel Rail Pressure (FRP) Sensor
2 - C112
