Turbocharger Vane Position Sensor: Diagrams

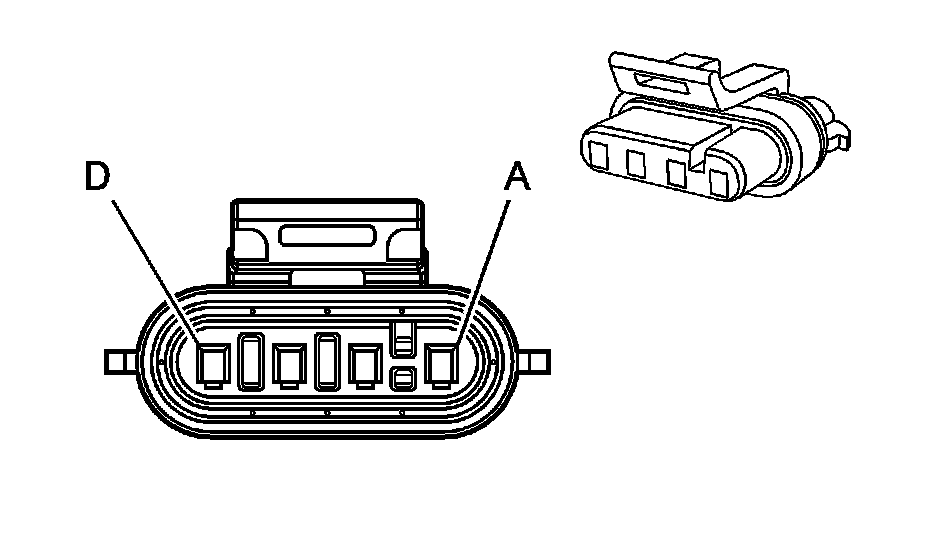

Engine Controls Connector End Views

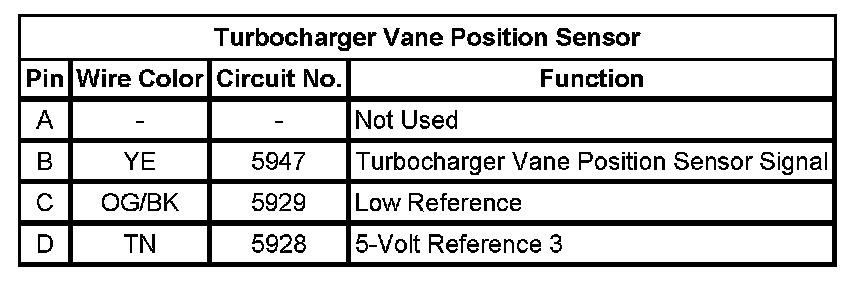

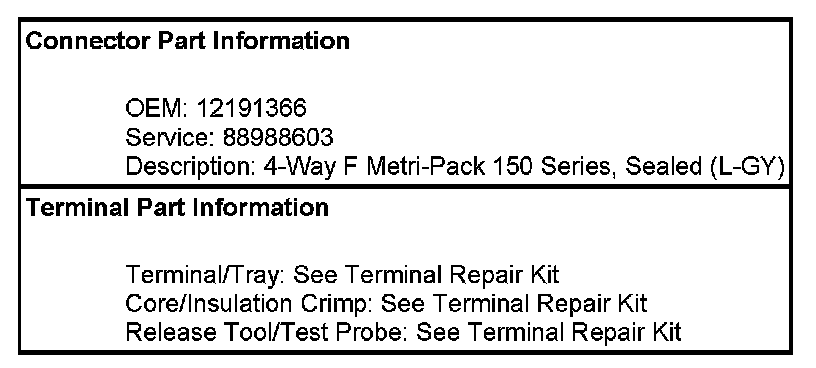

Turbocharger Vane Position Sensor
