Door Switch: Diagrams

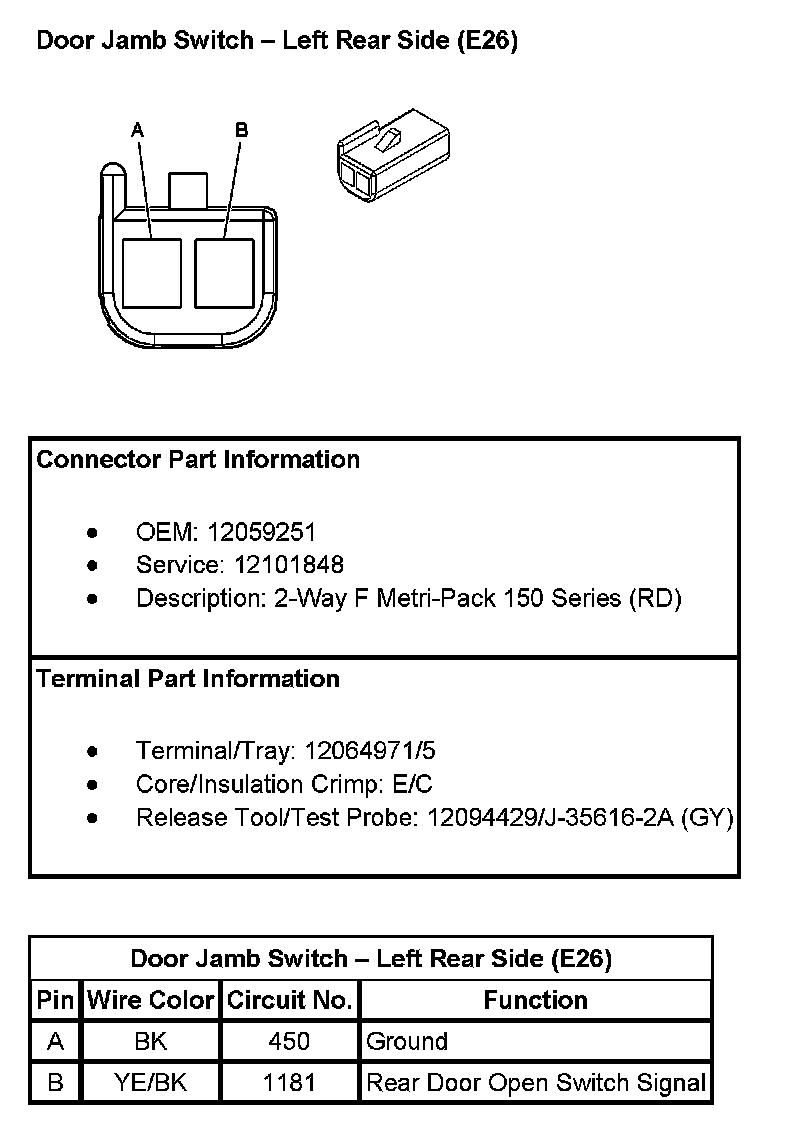

Door Jamb Switch - Left Rear Side (With RPO Code E26):

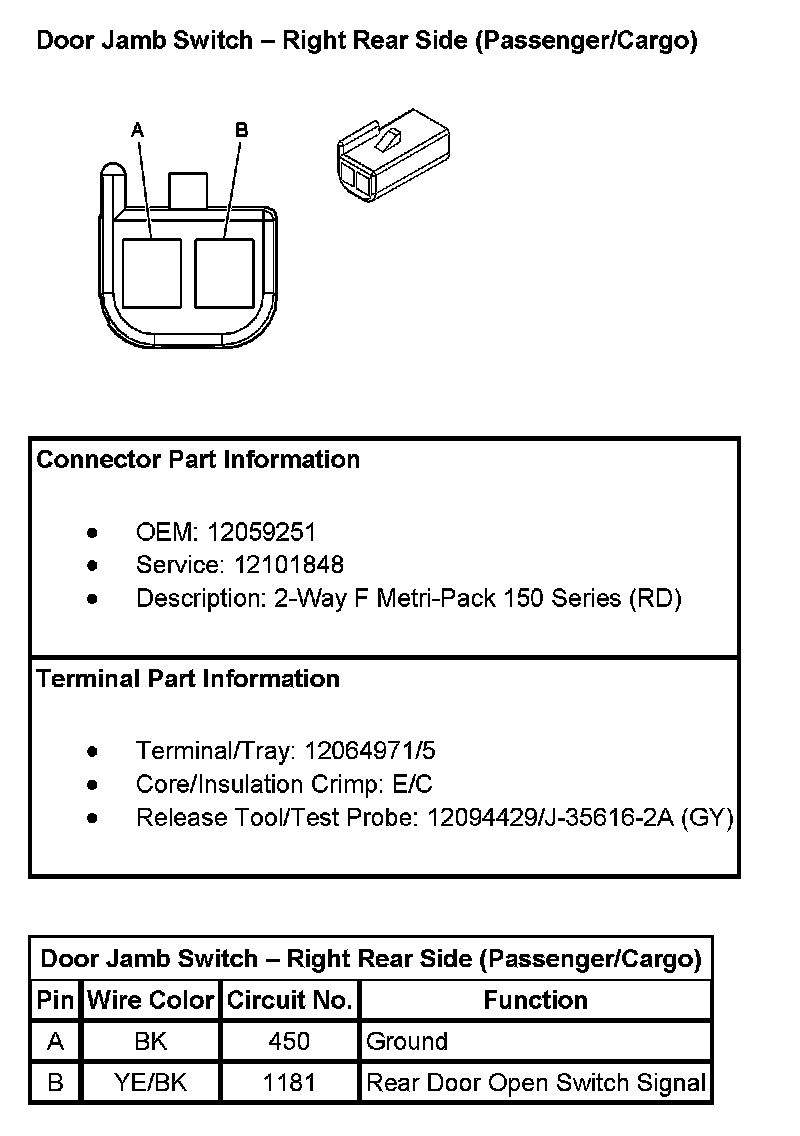

Door Jamb Switch - Right Rear Side (Passenger/Cargo):
