Parking Brake Warning Switch: Locations

Hydraulic Brake Component Views

I/P Harness Routing - Left Side of the Passenger Compartment

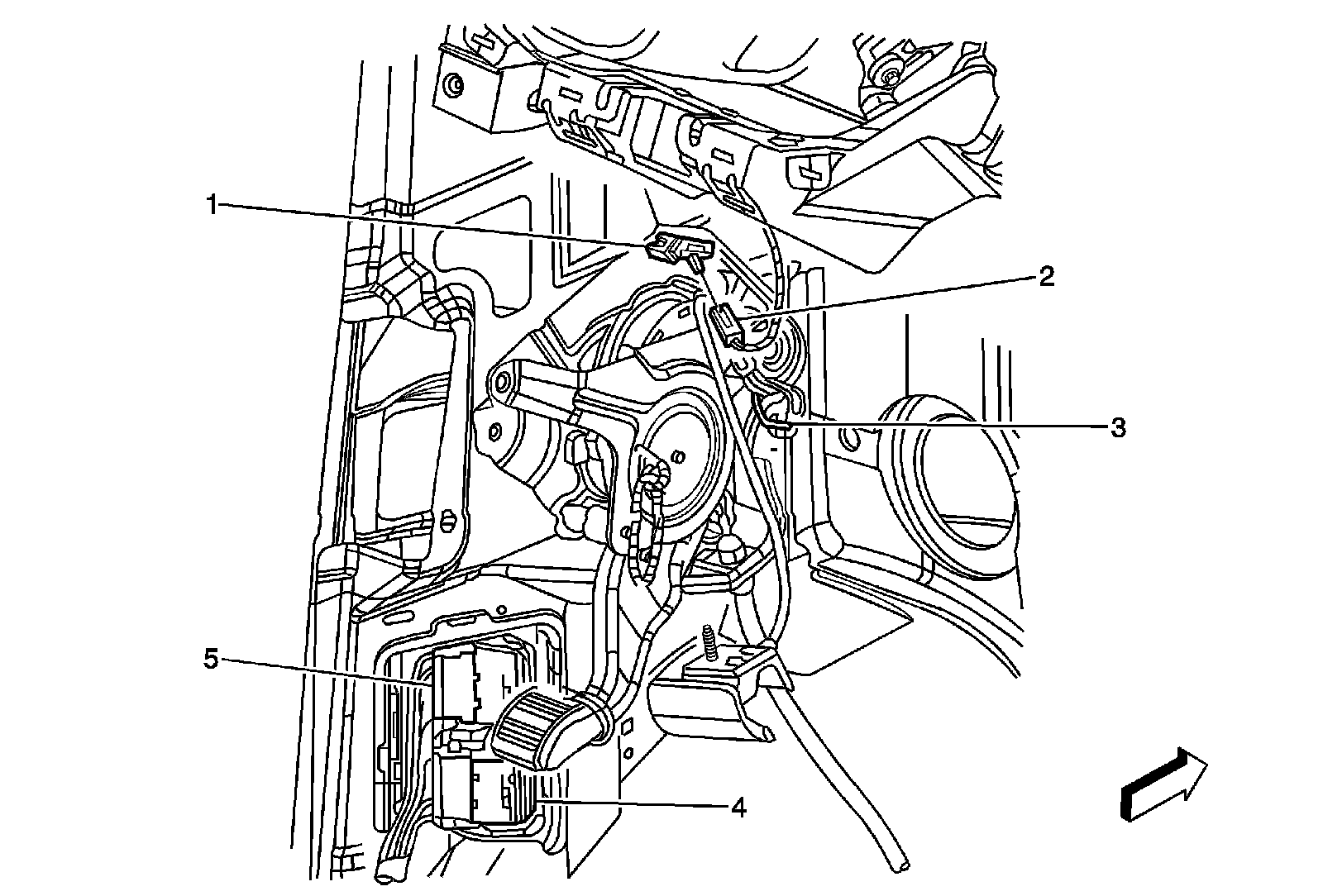

I/P Harness Routing - Left Side of the Passenger Compartment:

1 - Park Brake Switch
2 - Park Brake Switch Connector
3 - C220
4 - C311
5 - C318
