Antilock Brake System Component Views

Antilock Brake System Component Views

Frame And Underbody:

1 - Wheel Speed Sensor (WSS) - LR (JL4)
2 - Rotor - LR
3 - Rotor - LF
4 - Wheel Speed Sensor (WSS) Connector - LF
5 - Electronic Brake Control Module (EBCM)
6 - Brake Pressure Differential Switch (Light Duty)
7 - Floor Panel - RF
8 - Yaw and Lateral Acceleration Sensor (JL4)
9 - Wheel Speed Sensor (WSS) Connector - RF
10 - Rotor - RF
11 - Rotor - RR
12 - Wheel Speed Sensor (WSS) - RR (JL4)

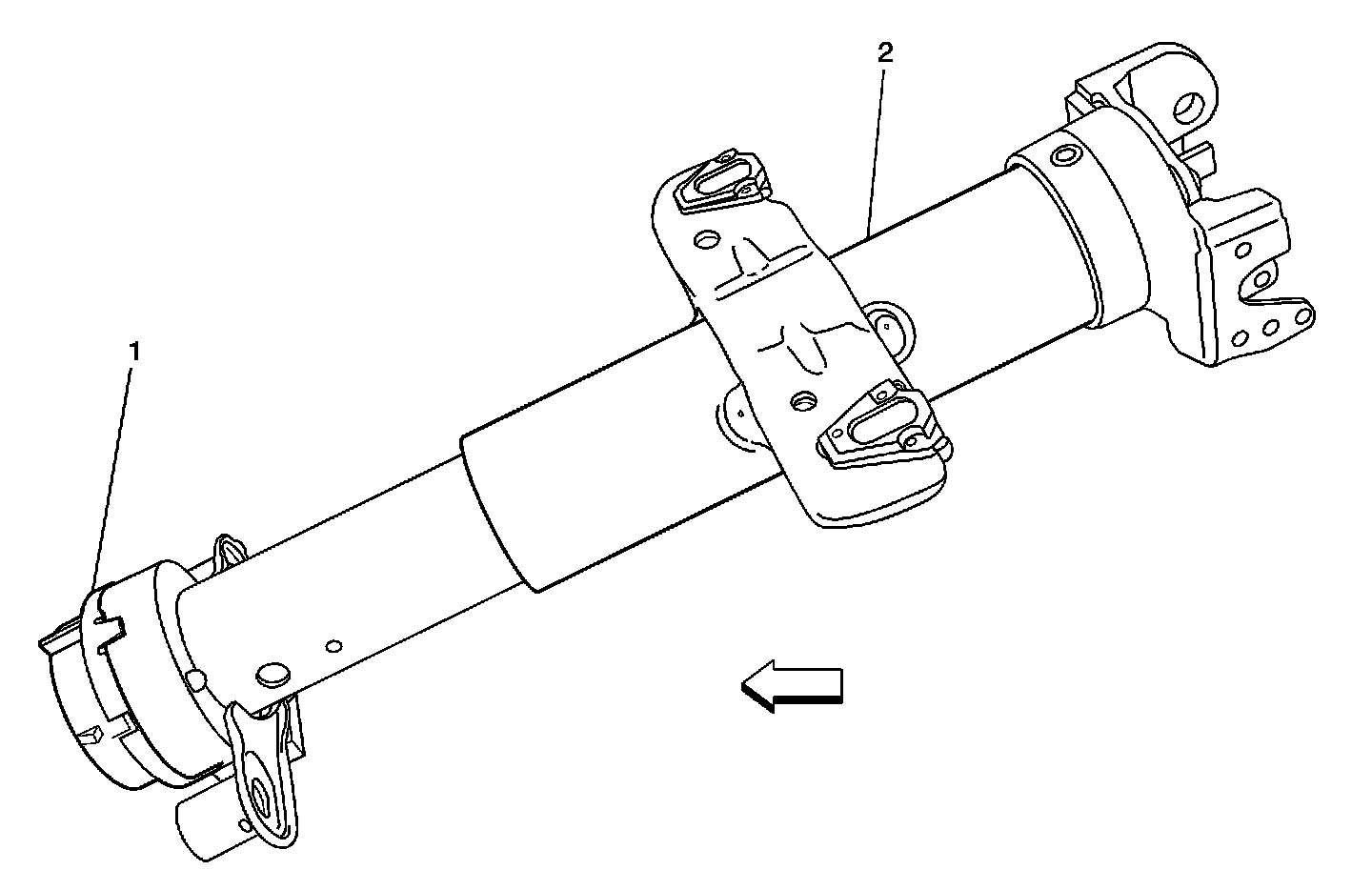

Lower Left Of The I/P (JL4):

1 - Steering Wheel Speed/Position Sensor
2 - Steering Column Jacket Assembly
