Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Diagrams

Wheel Speed Sensor: Diagrams

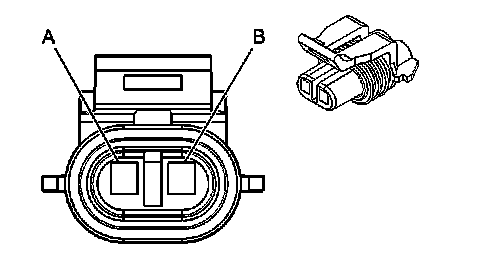

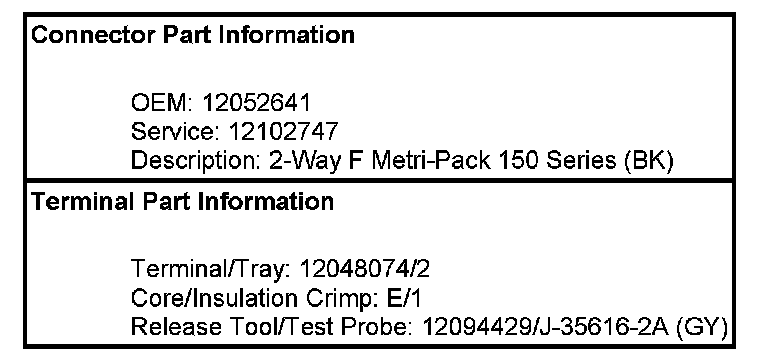

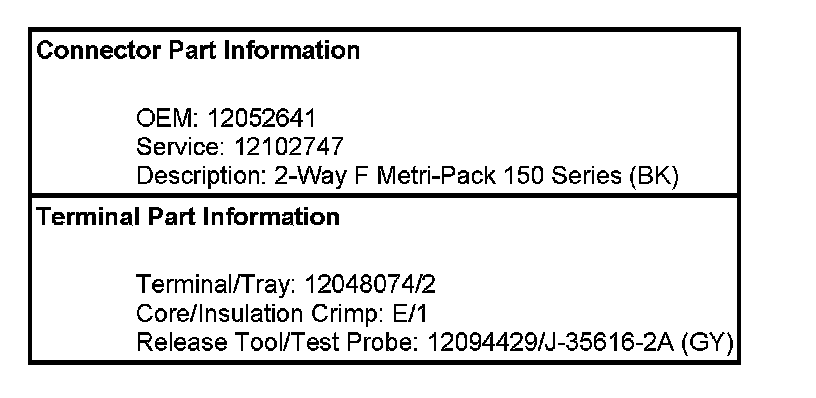

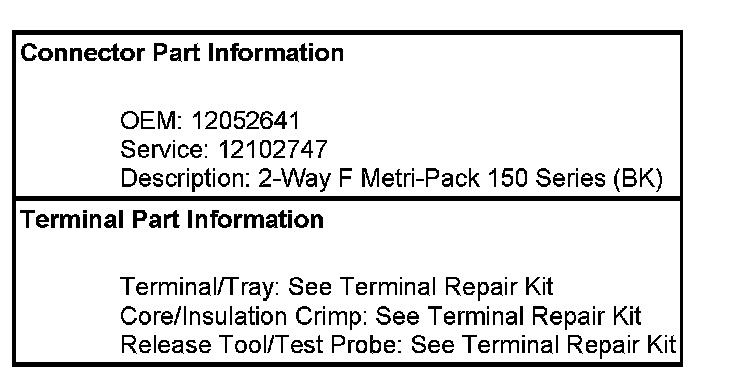

Antilock Brake System Connector End Views

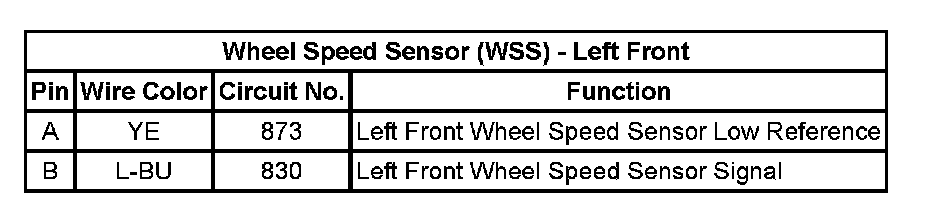

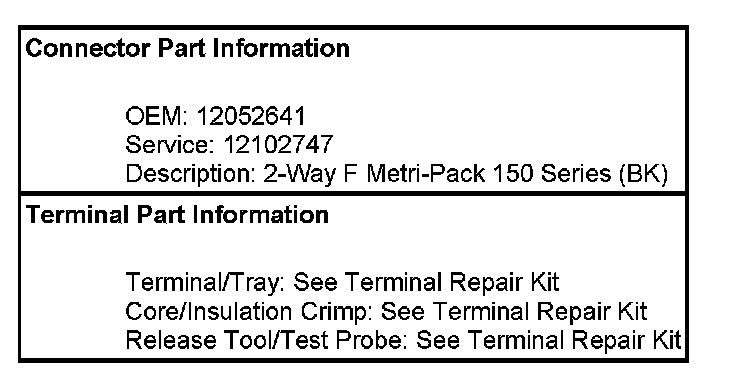

Wheel Speed Sensor (WSS) - Left Front:

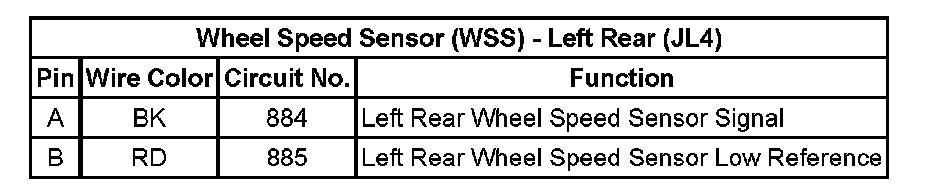

Wheel Speed Sensor (WSS) - Left Rear (JL4):

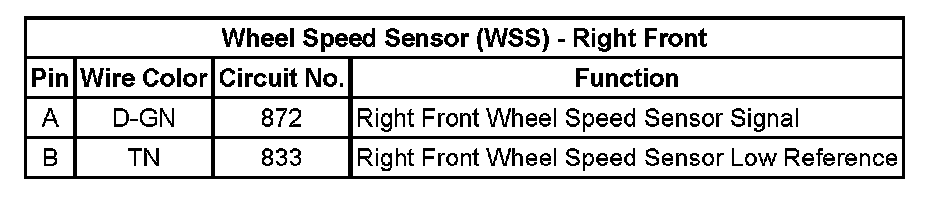

Wheel Speed Sensor (WSS) - Right Front:

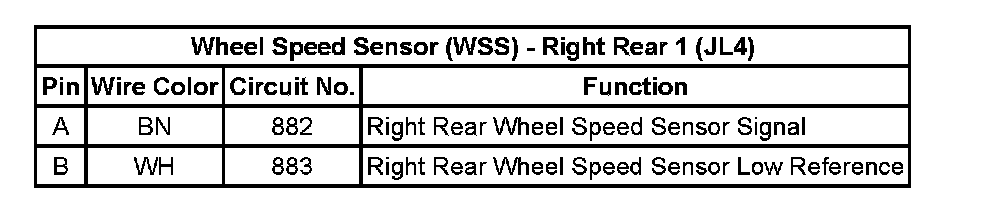

Wheel Speed Sensor (WSS) - Right Rear (JL4):
