Power Door Lock Switch: Diagrams
Door Lock Switch - Driver (With RPO Code AU3):
Door Lock Switch - Passenger (With RPO Code AU3):

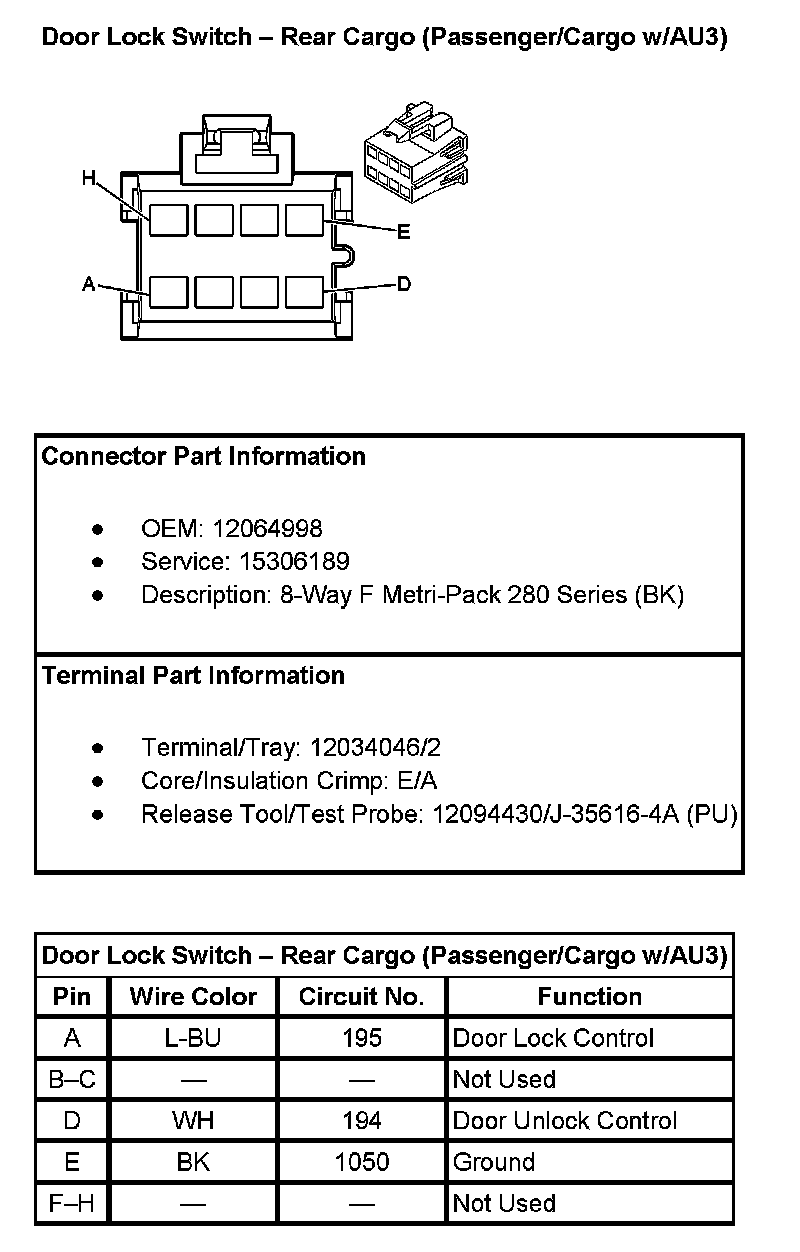

Door Lock Switch - Rear Cargo (Passenger/Cargo W/AU3):
