Electronic Brake Control Module: Diagrams



Antilock Brake System Connector End Views

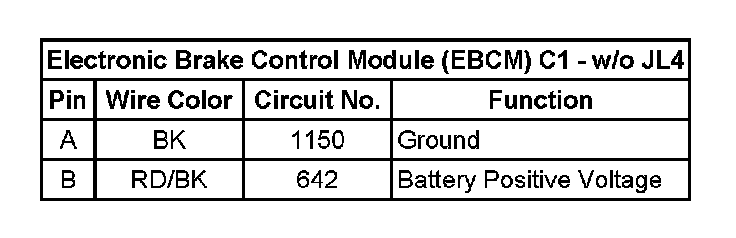

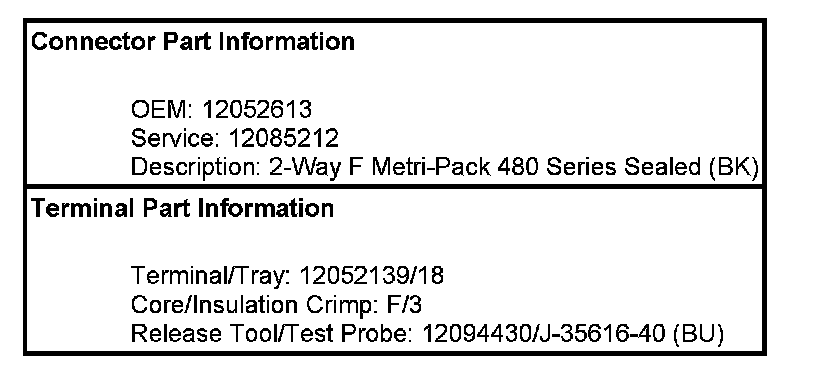

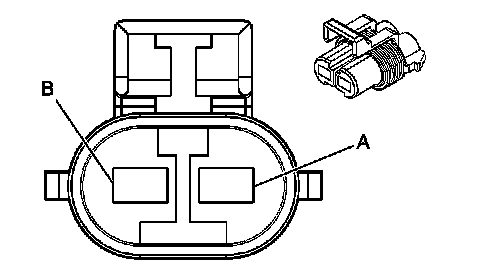

Electronic Brake Control Module (EBCM) C1 - w/o JL4:

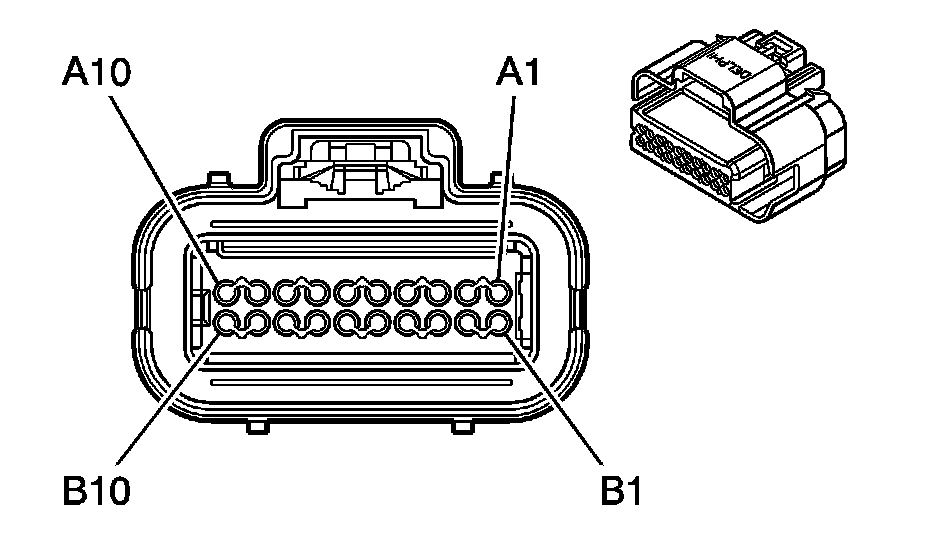

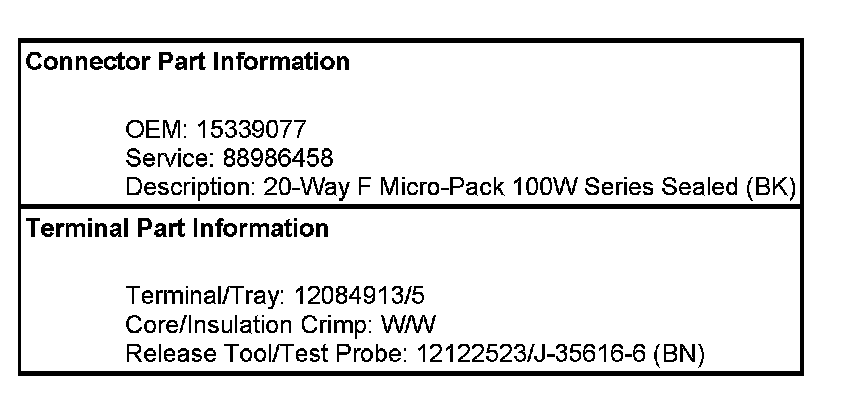

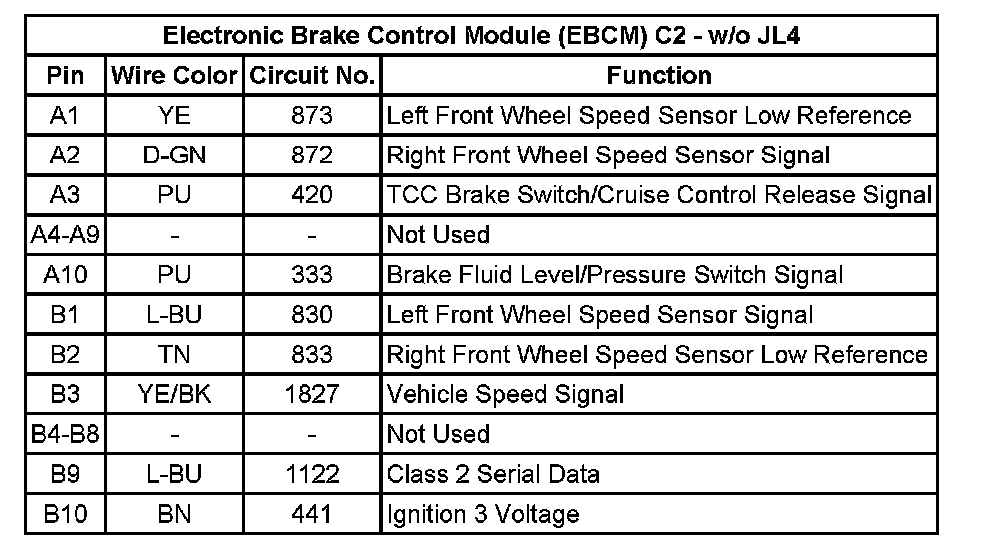

Electronic Brake Control Module (EBCM) C2 - w/o JL4:

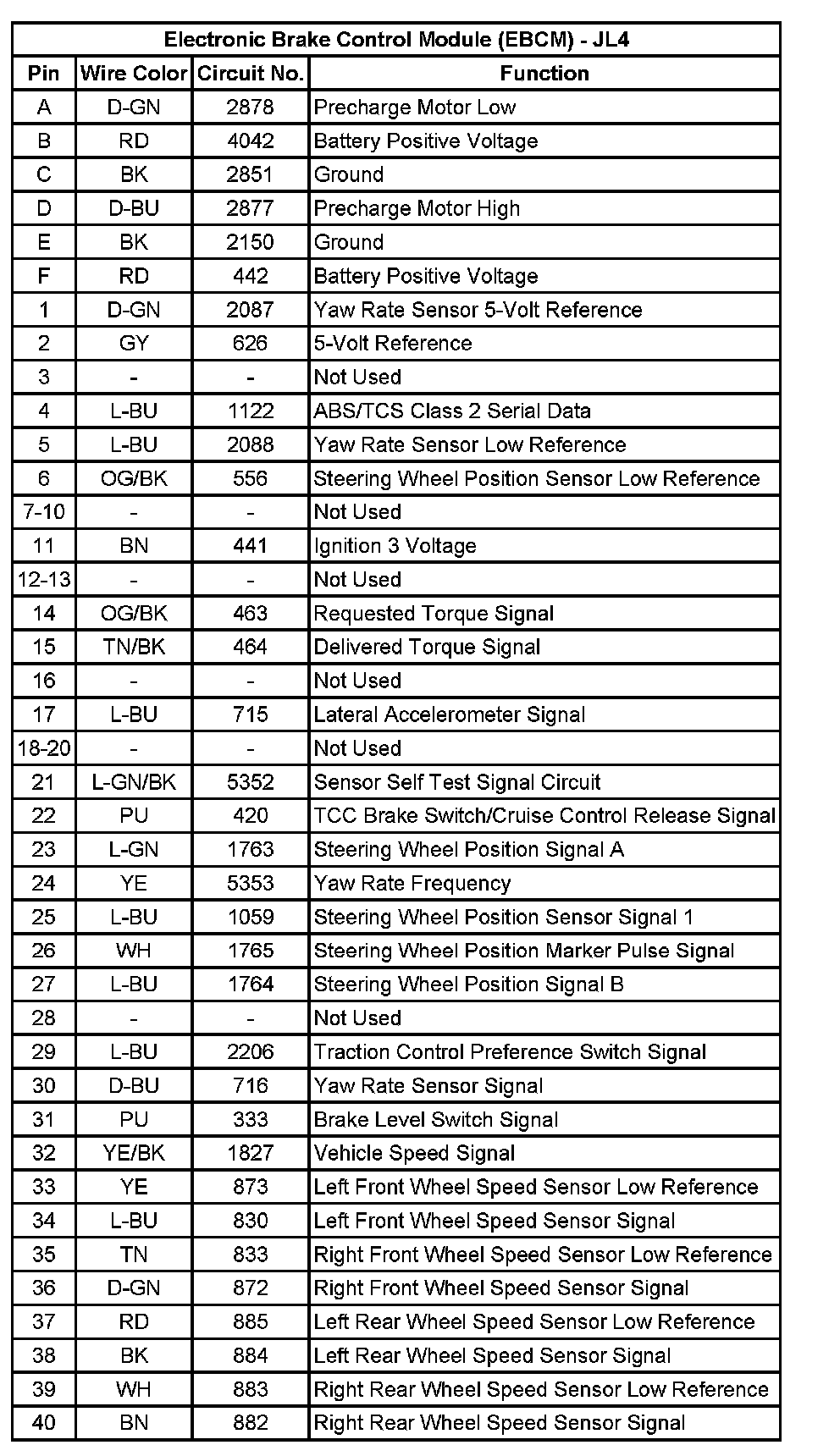

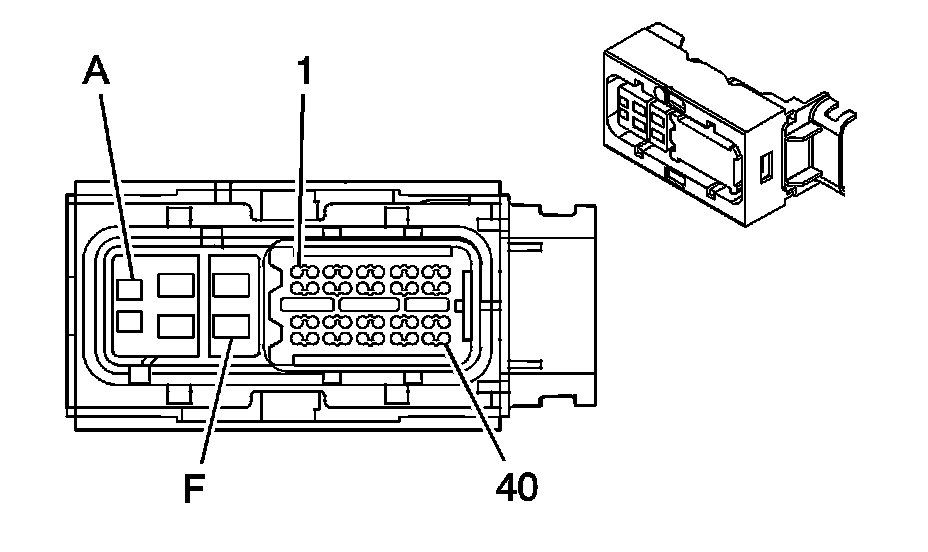

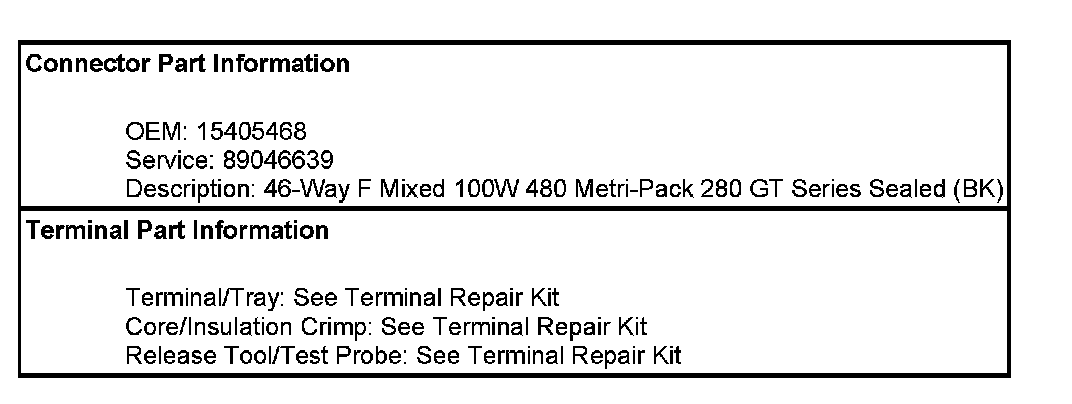

Electronic Brake Control Module (EBCM) - JL4:
