4L60-E/4L65-E/4L70-E - Automatic Transmission

Vehicle Speed Sensor Replacement

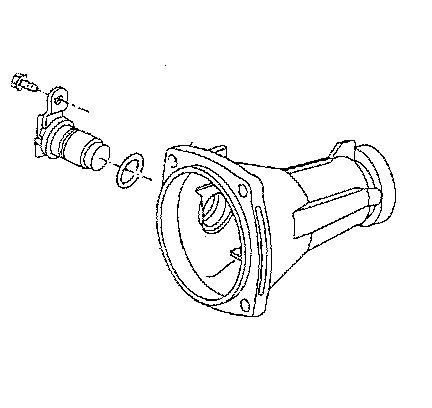

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the electrical connector from the speed sensor.




3. Remove the bolt.
4. Remove the speed sensor and the O-ring seal.
5. Inspect the seal and the transmission case. Replace the seal, if necessary.

Installation Procedure




1. Install the speed sensor and the O-ring seal into the transmission.

Notice: Refer to Fastener Notice .

2. Install the bolt.

Tighten the bolt to 11 N.m (97 lb in).

3. Install the electrical connector to the speed sensor.
4. Lower the vehicle.
