Transmission Speed Sensor
>>
Locations
>>
4L60-E/4L65-E/4L70-E - Automatic Transmission
4L60-E/4L65-E/4L70-E - Automatic Transmission

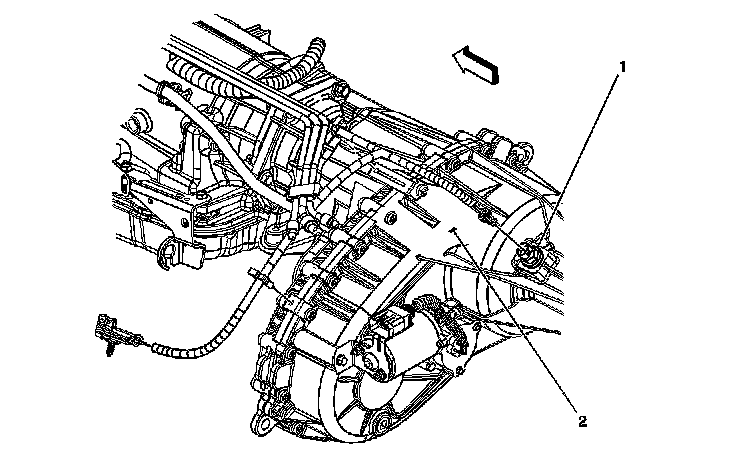

Vehicle Speed Sensor (VSS)
Vehicle Speed Sensor (VSS):
1
- VSS Sensor
2
- Transfer Case
