4L80-E/4L85-E Automatic Transmission

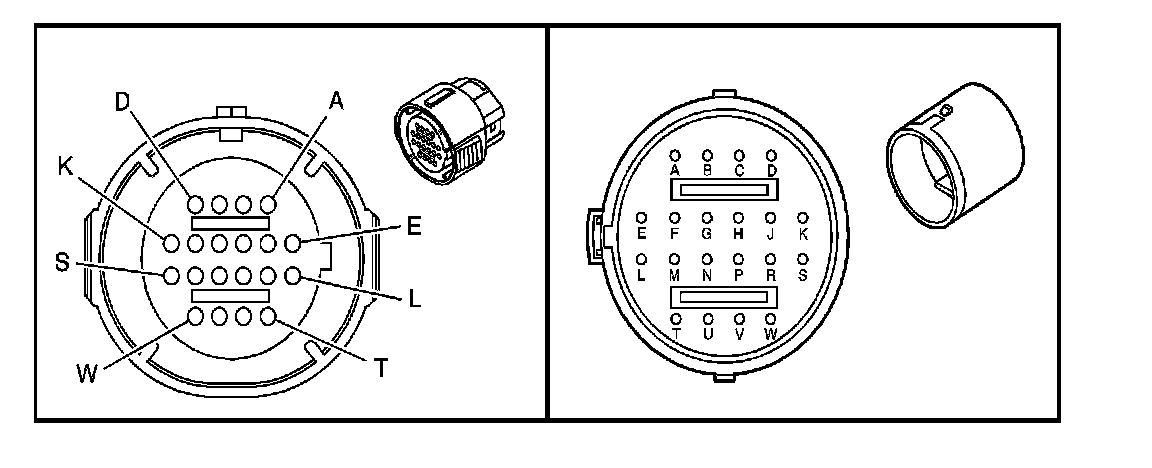

Automatic Transmission Inline 20-Way Connector End View

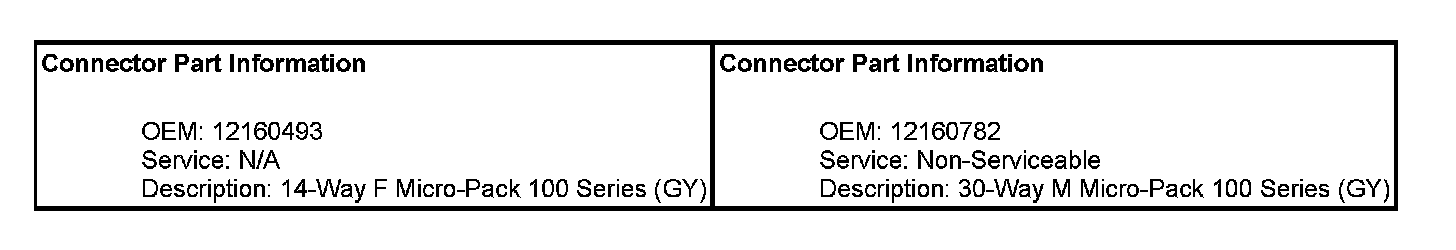

C175 Engine Side to Transmission Side

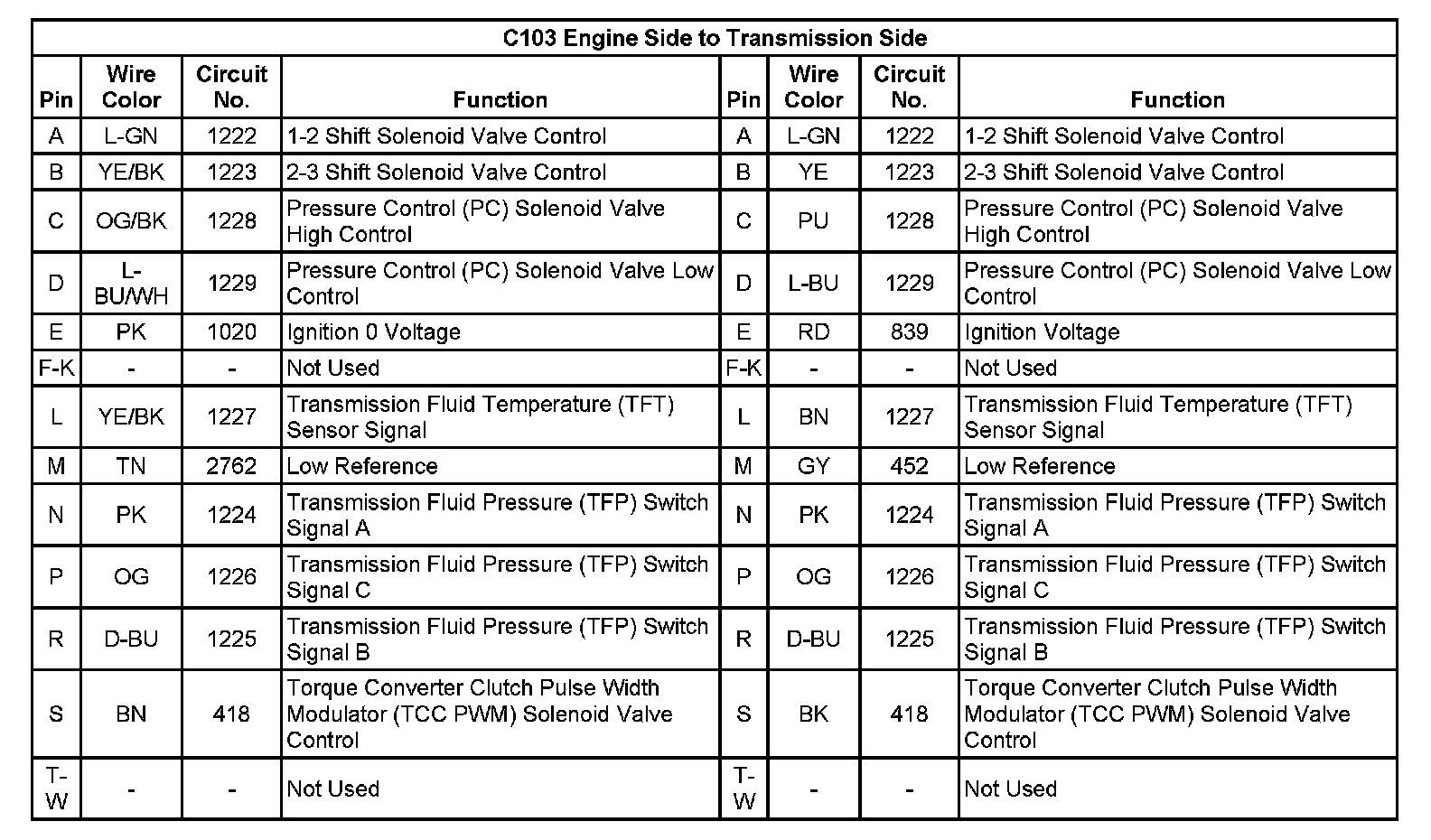

C103 Engine Side To Transmission Side:
