Connector Views

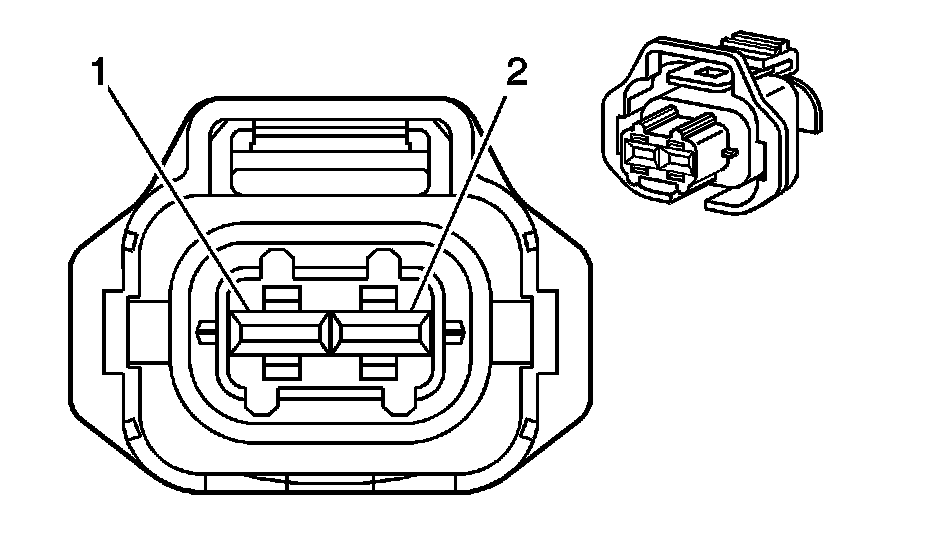

Engine Controls Connector End Views

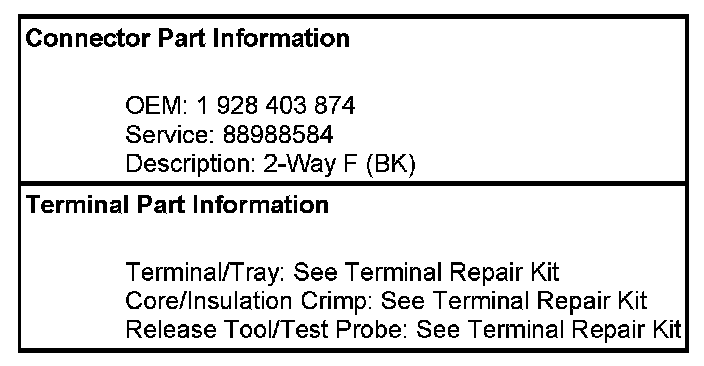

Fuel Injector 1














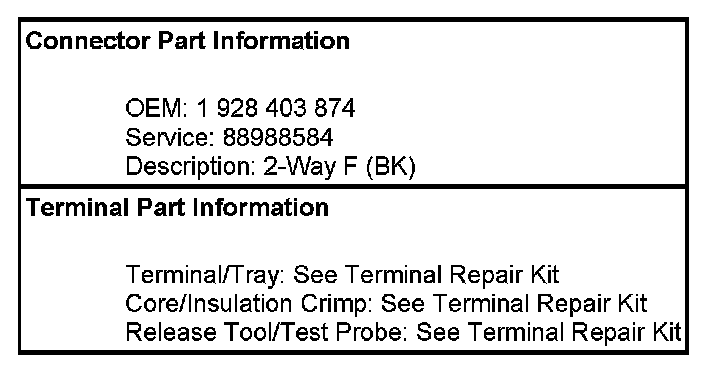

Fuel Injector 2

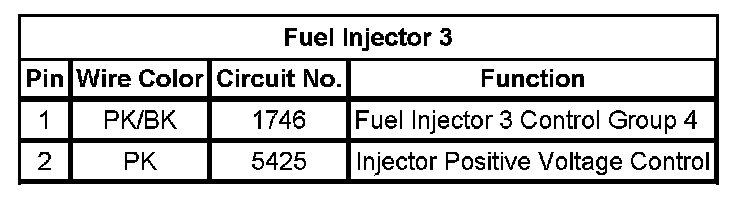

Fuel Injector 3

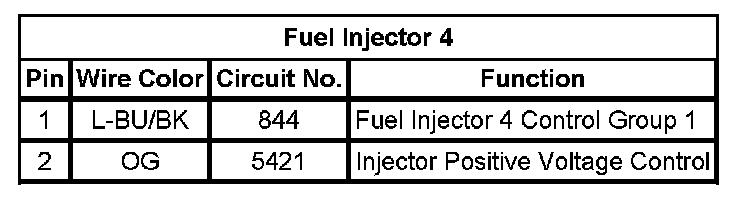

Fuel Injector 4

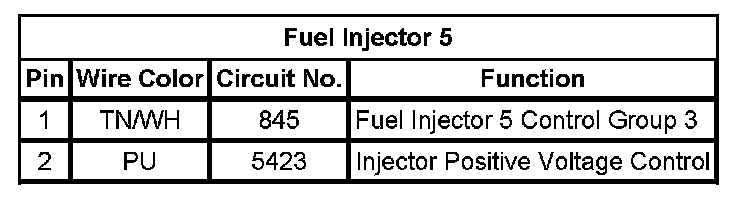

Fuel Injector 5














Fuel Injector 6

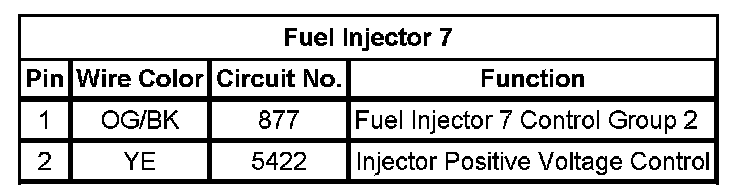

Fuel Injector 7

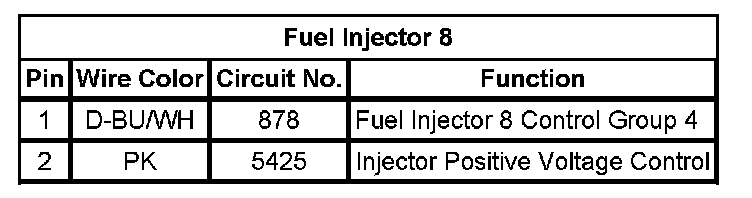

Fuel Injector 8
