Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tune-up and Engine Performance Checks >> Valve Clearance >> Specifications

Valve Clearance: Specifications

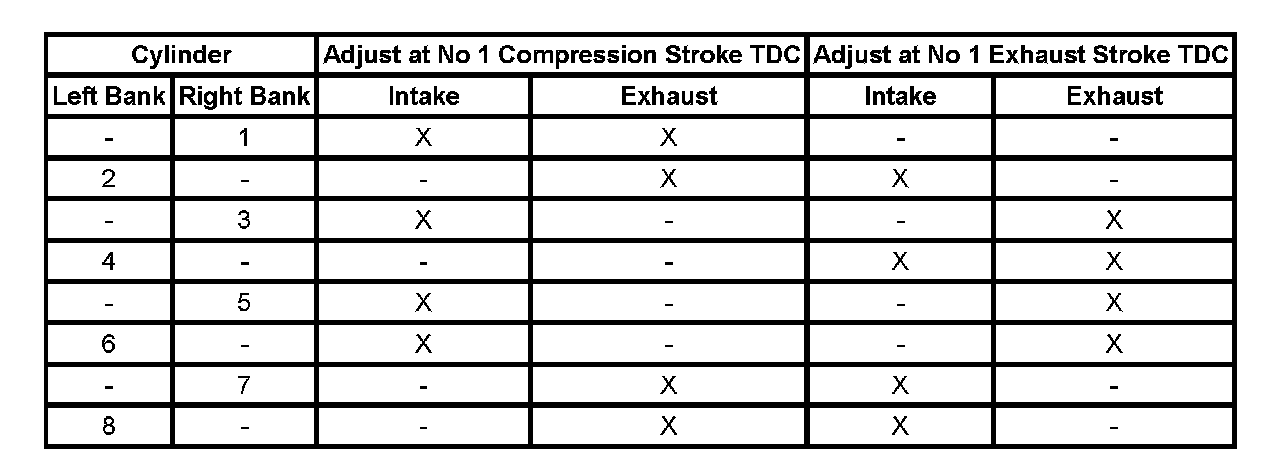

Valve Clearance Adjustment Specifications:





Adjust the valve clearance to 0.3 mm (0.0112 in).
