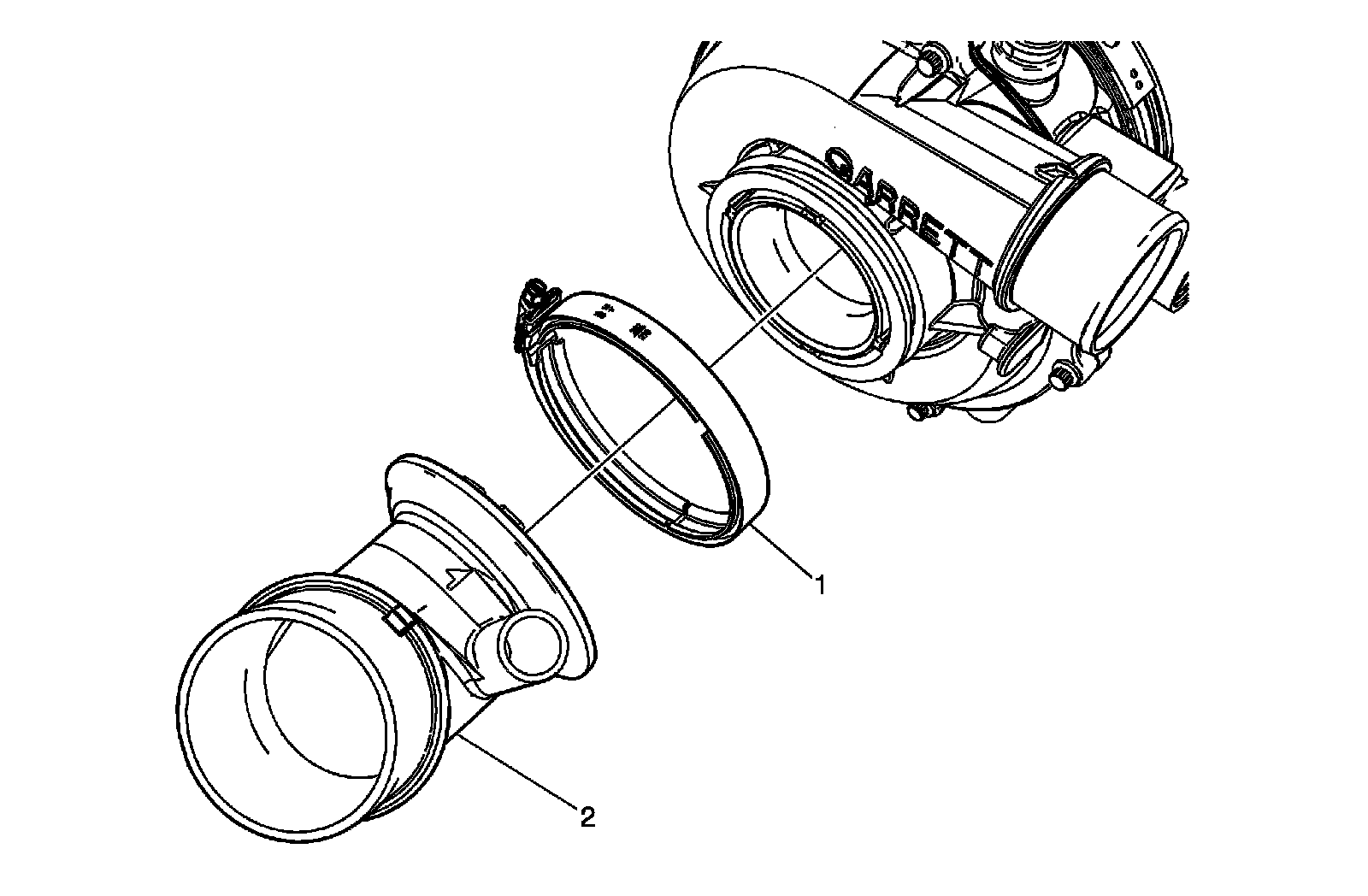

Air Intake Pipe Replacement

Air Intake Pipe Replacement

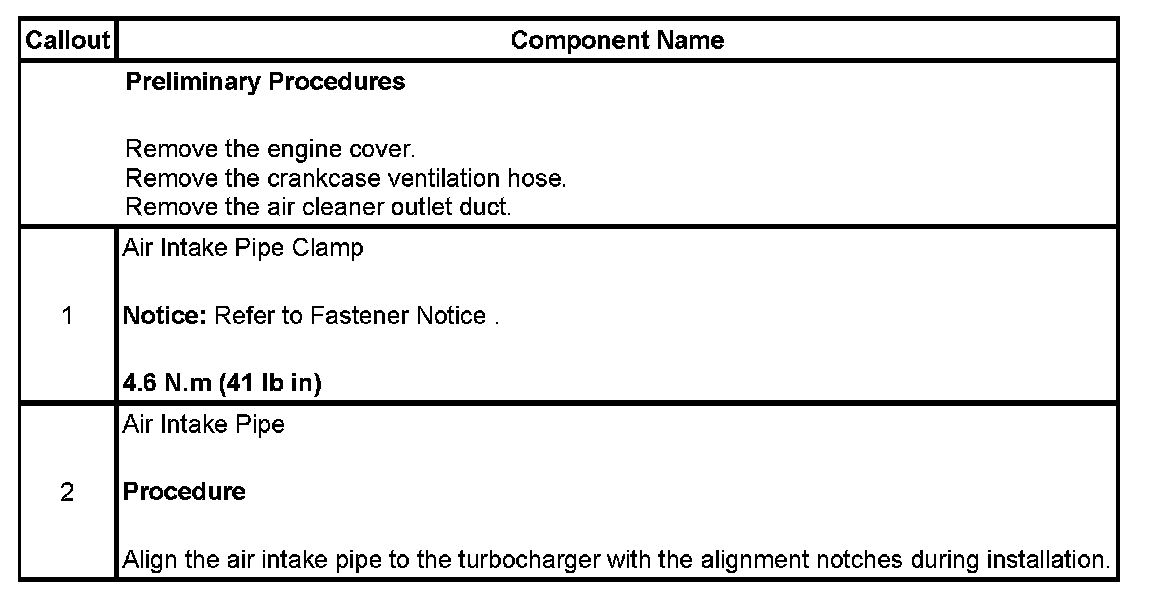

ProcedureAlign the air intake pipe to the turbocharger with the alignment notches during installation.
