Oil Pressure Diagnosis and Testing



Oil Pressure Diagnosis and Testing

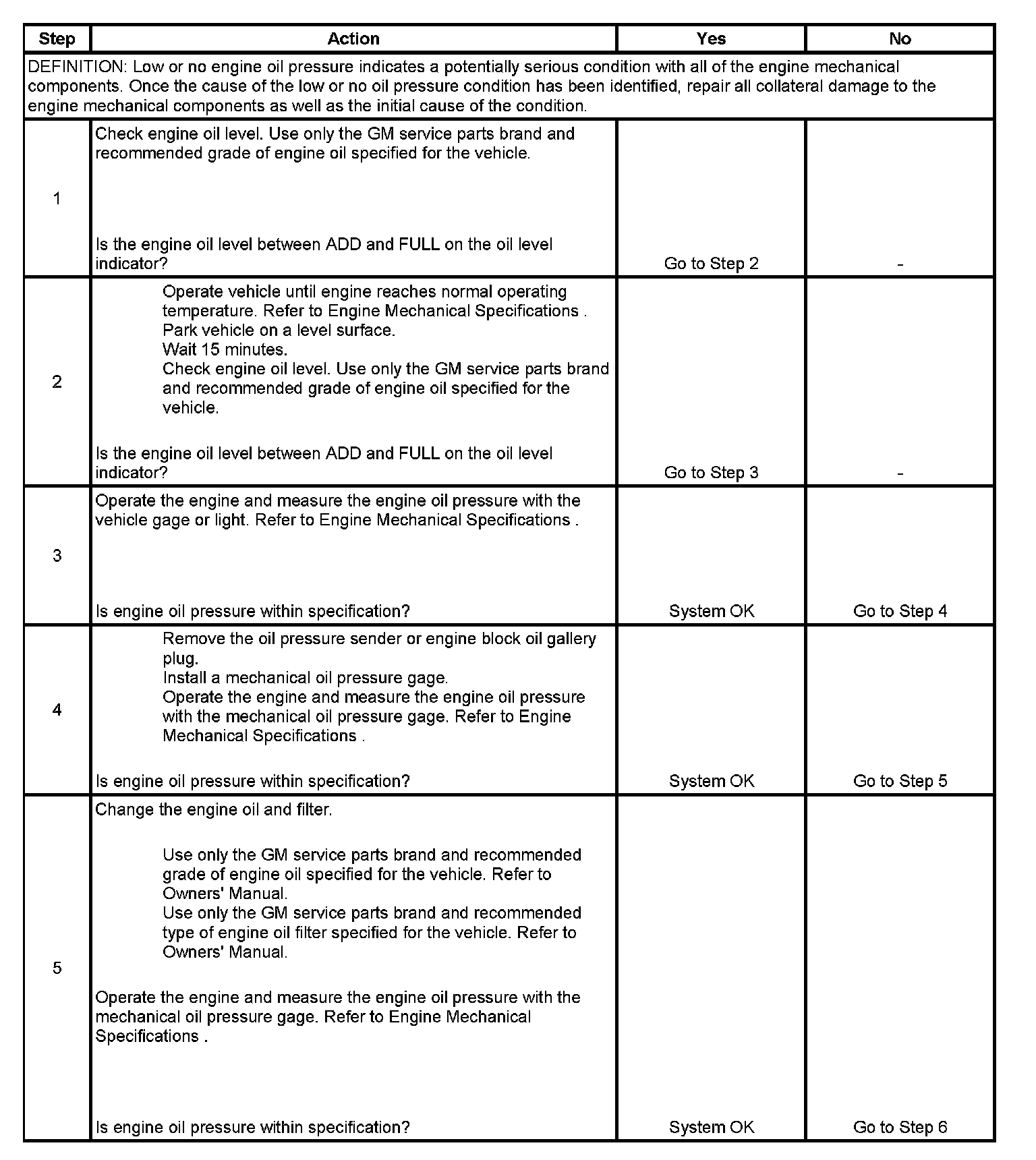

Step 1 - Step 5:

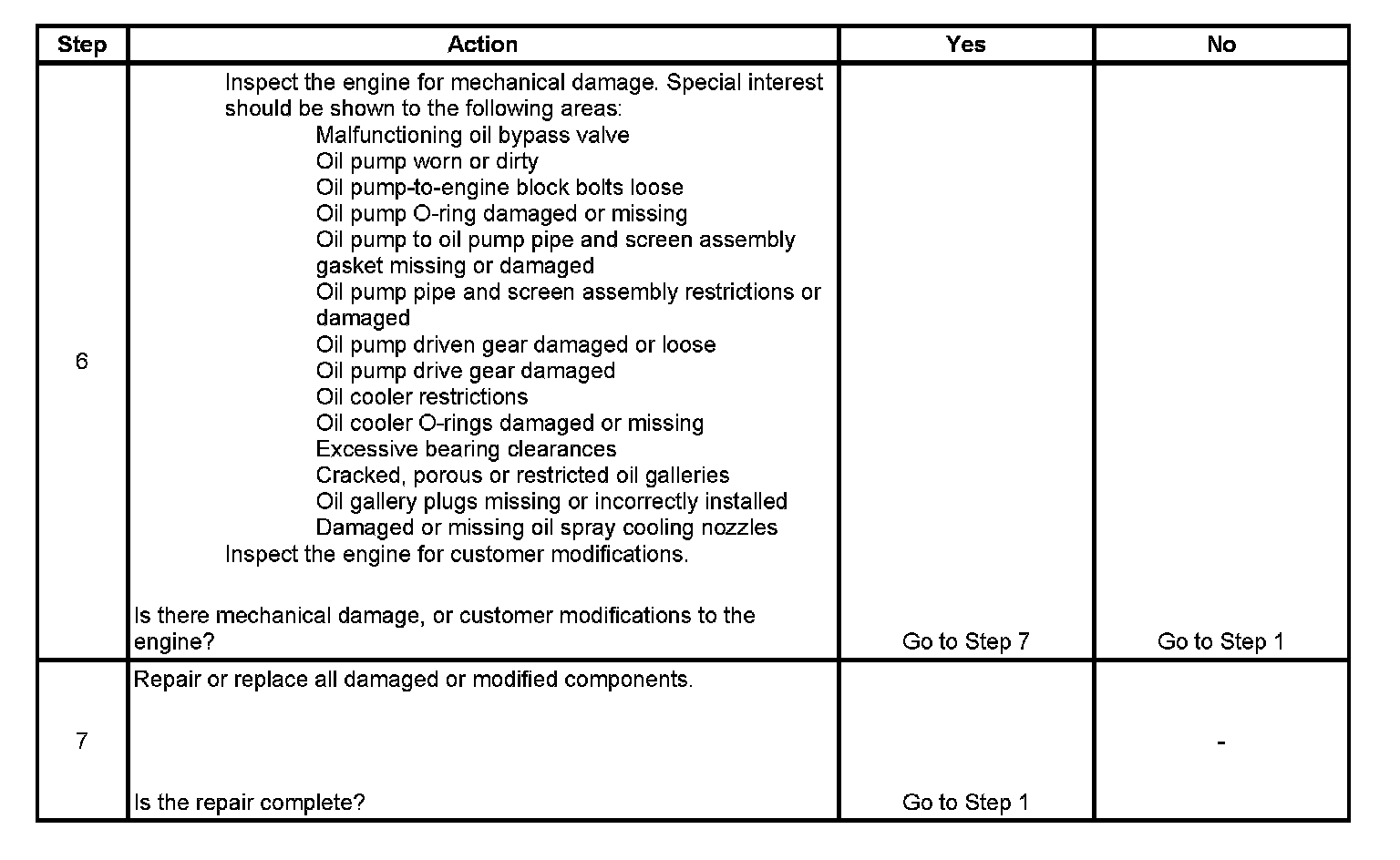

Step 6 - Step 7:
