101. Intake Manifold Installation - Left Side

Intake Manifold Installation - Left Side

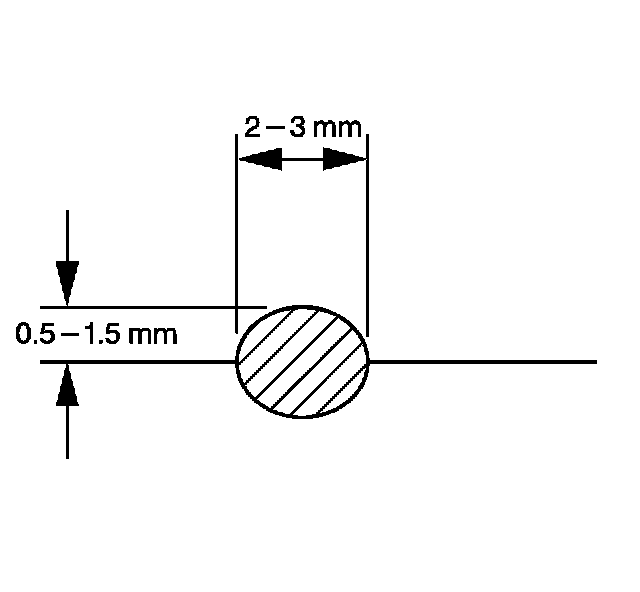

1. Apply a 2-3 mm wide by 0.5-1.5 mm high bead of GM P/N 12378521 (Canadian P/N 88901148) sealant on the intake manifold mating surface.

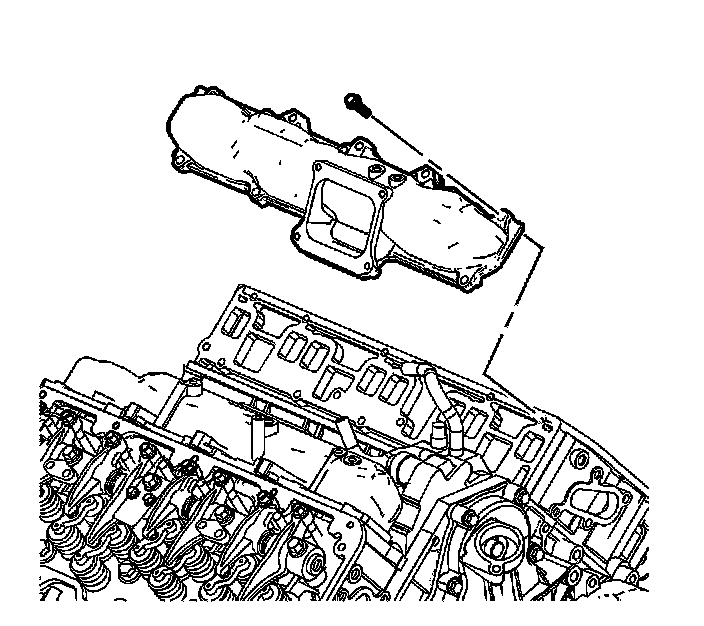

2. Install the intake manifold.

Left Side:

Notice: Refer to Fastener Notice.

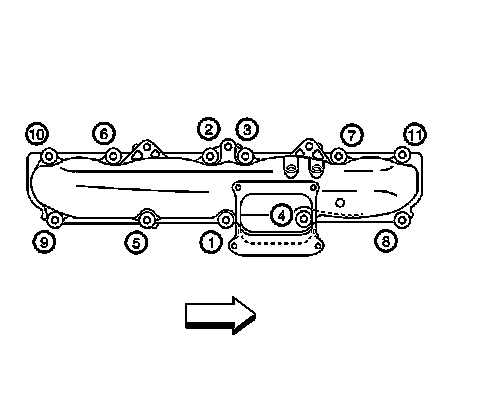

3. Install the intake manifold bolts and nuts.

Tighten the intake manifold bolts and nuts to 25 N.m (18 lb ft).
