Coolant Level Sensor: Locations



Cooling System Component Views

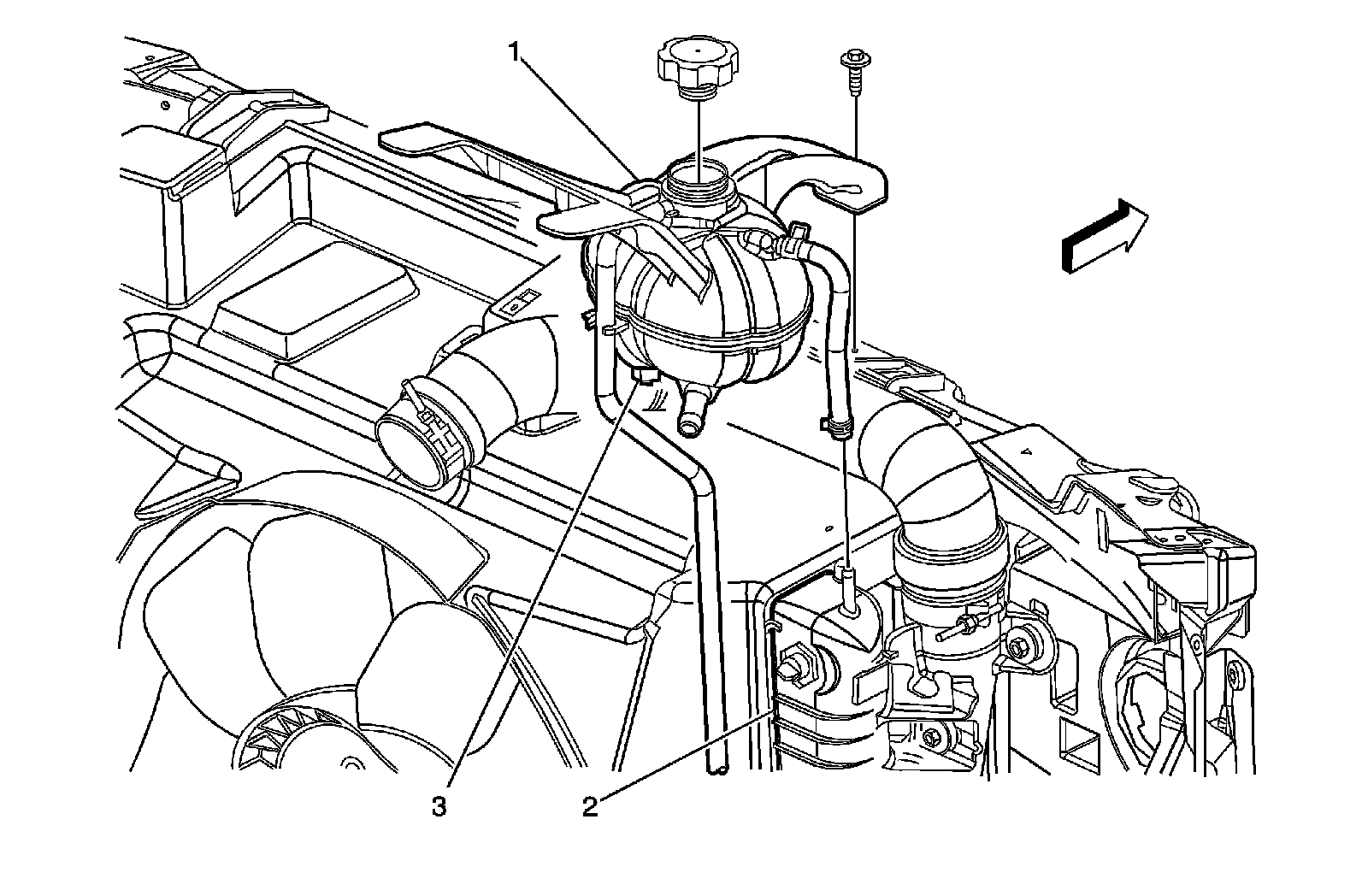

RF of the Engine Compartment (6.6L)

RF of the Engine Compartment:





1 - Surge Tank
2 - Radiator
3 - Coolant Level Switch
