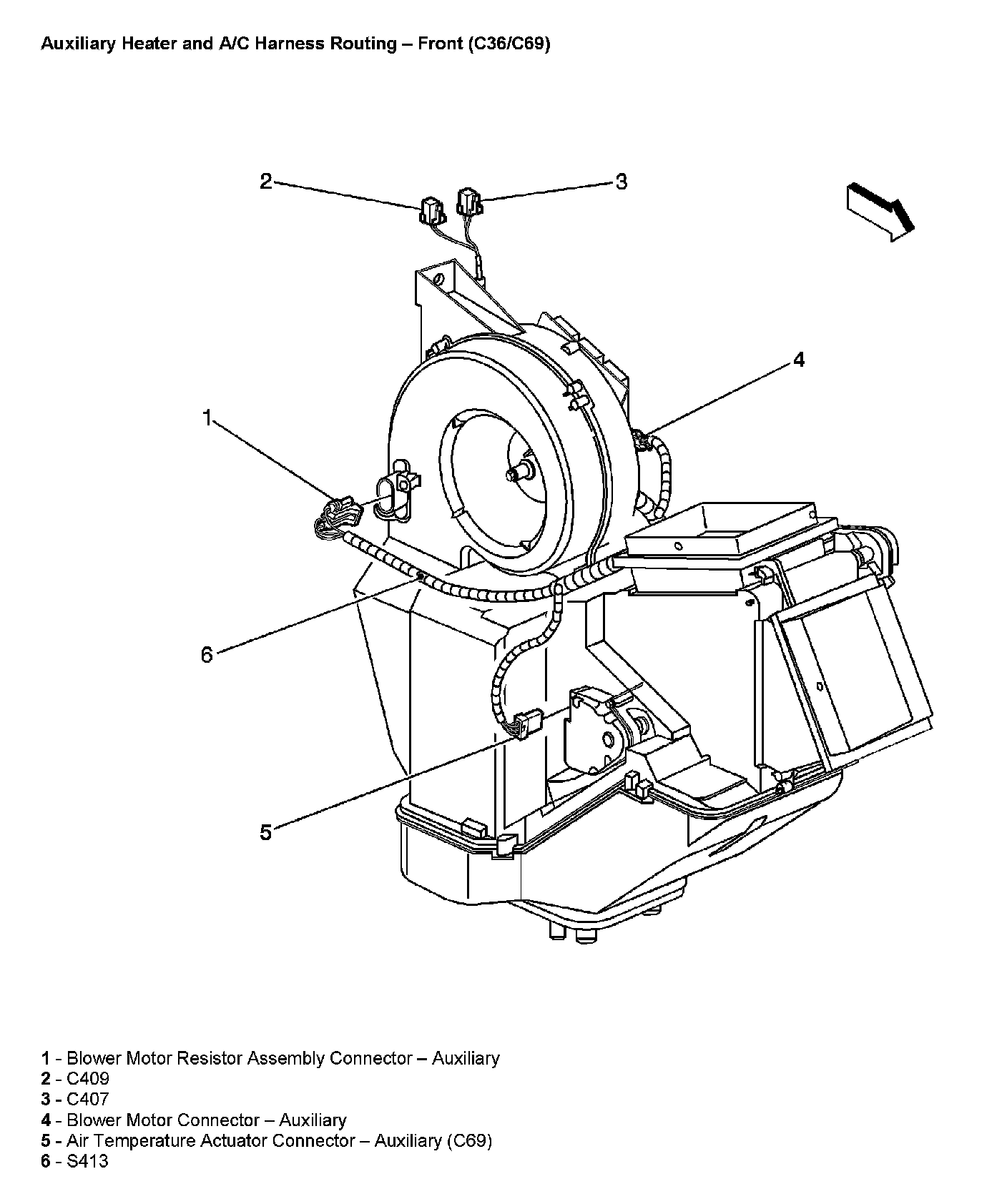

Auxiliary Heater and A/C Harness Routing - Front (With RPO Code C36/C69)
Auxiliary Heater and A/C Harness Routing - Front (With RPO Code C36/C69)
Auxiliary Heater And A/C Harness Routing - Front (With RPO Codes C36/C69):
