Express 3500 V8-6.6L DSL Turbo VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Compartment Views
>>

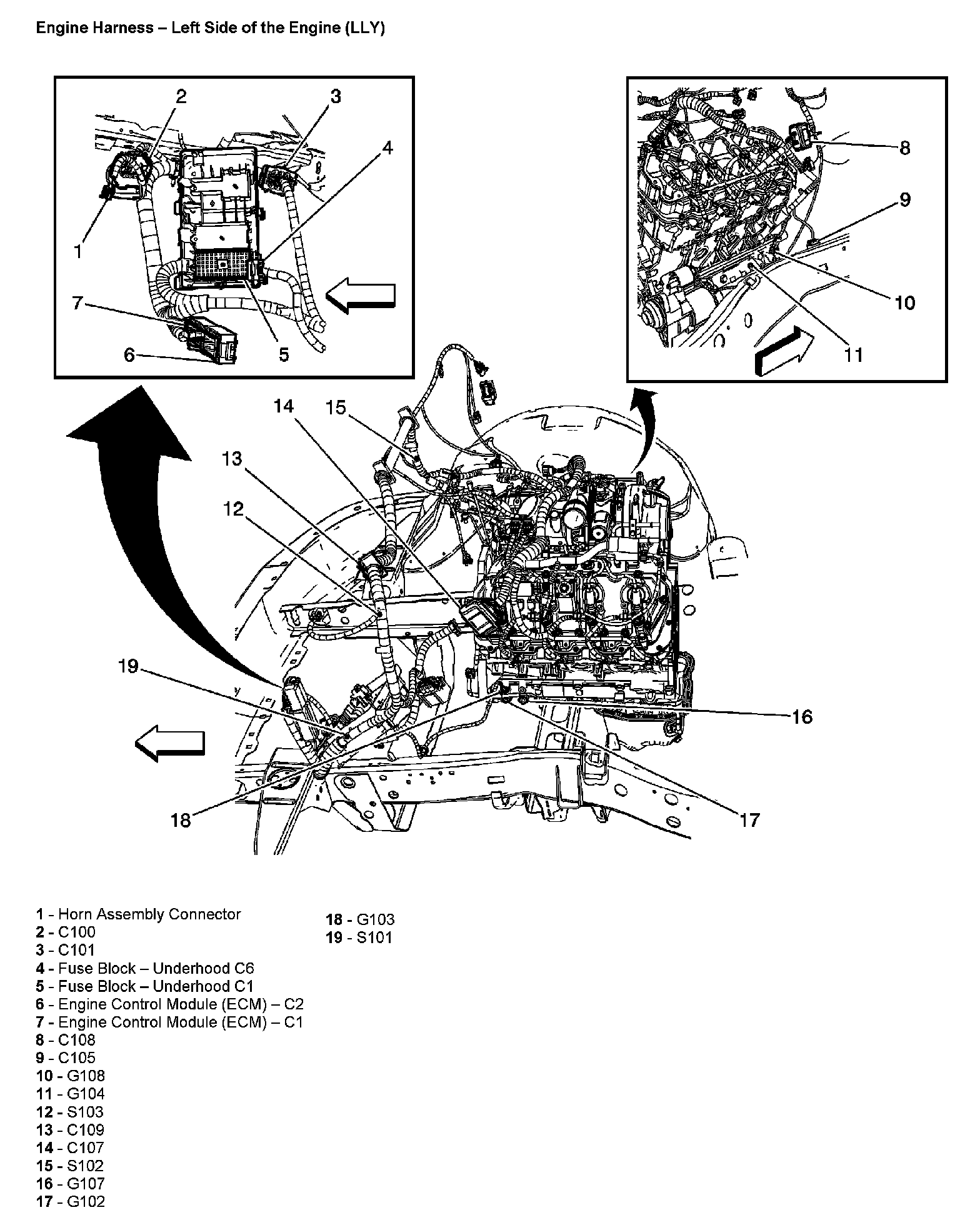

Engine Harness - Left Side of the Engine (With RPO Code LLY)
Engine Harness - Left Side of the Engine (With RPO Code LLY)
Engine Harness - Left Side Of The Engine (With RPO Code LLY):
