Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram >> Headlamp - Low Beam

Headlamp - Low Beam

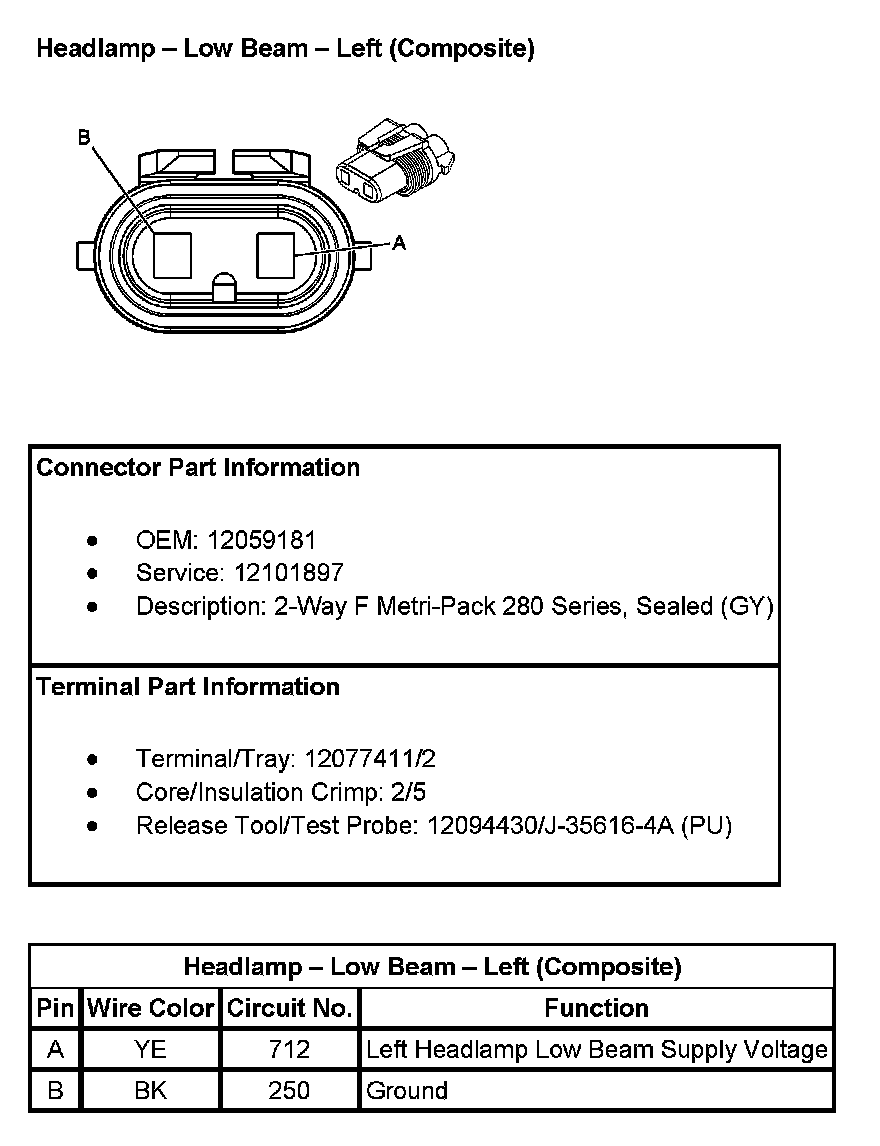

Headlamp - Low Beam - Left (Composite):

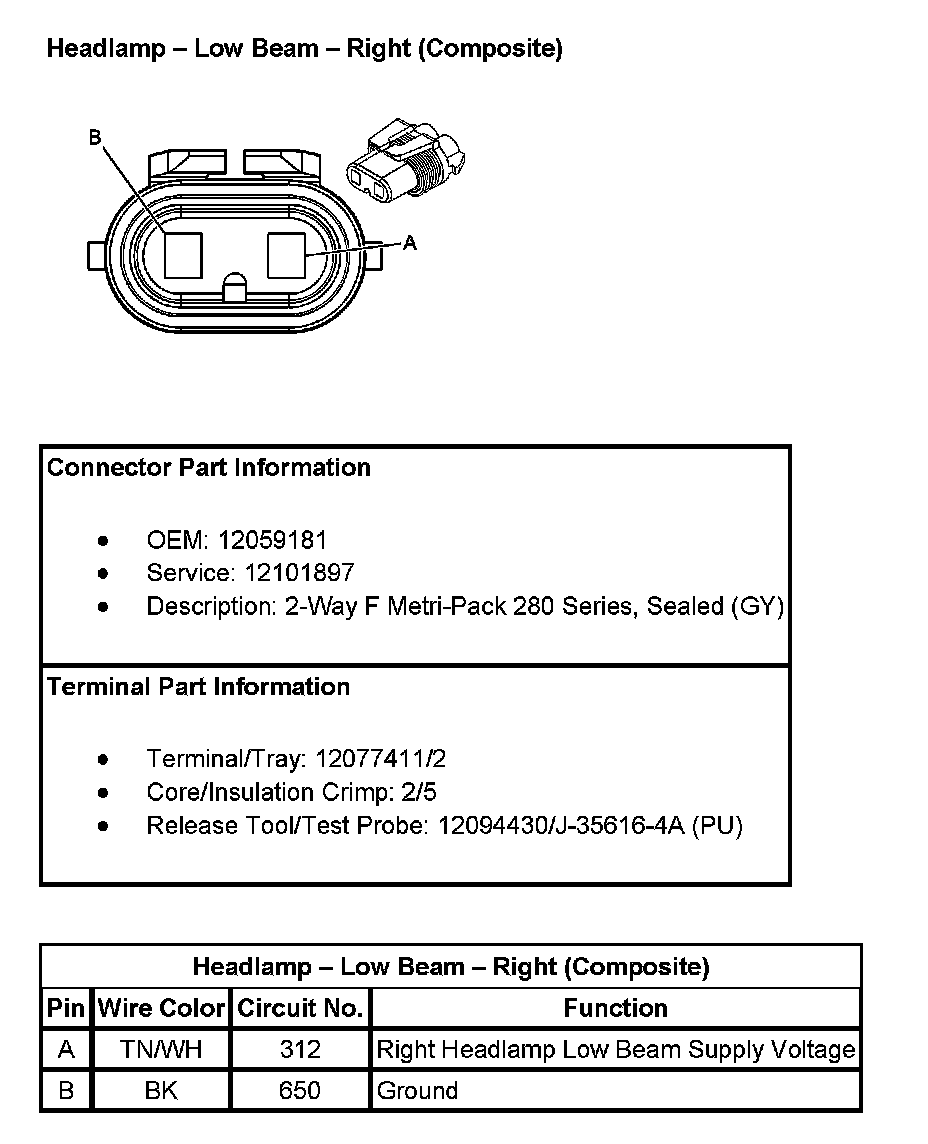

Headlamp - Low Beam - Right (Composite):
