Transmission Control Module (TCM), Engine Side
Transmission Control Module (TCM), Engine Side

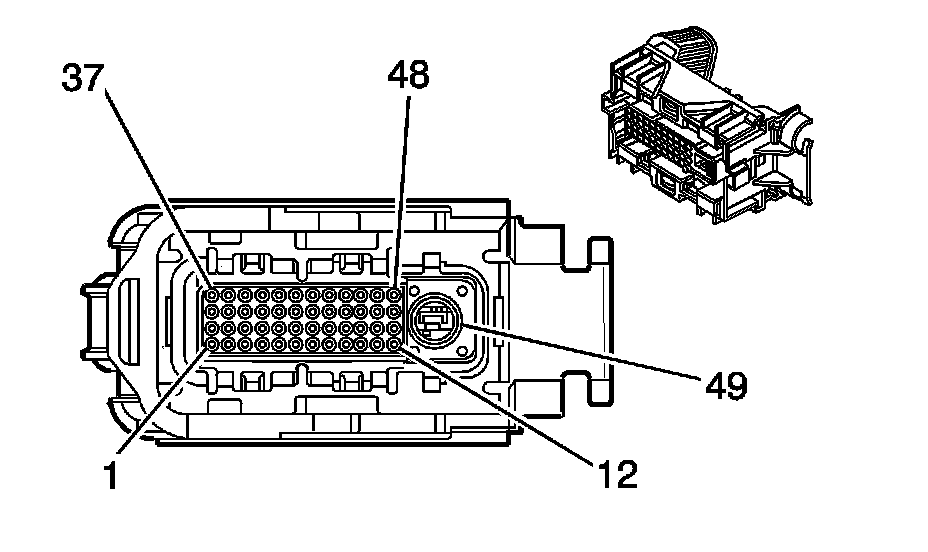

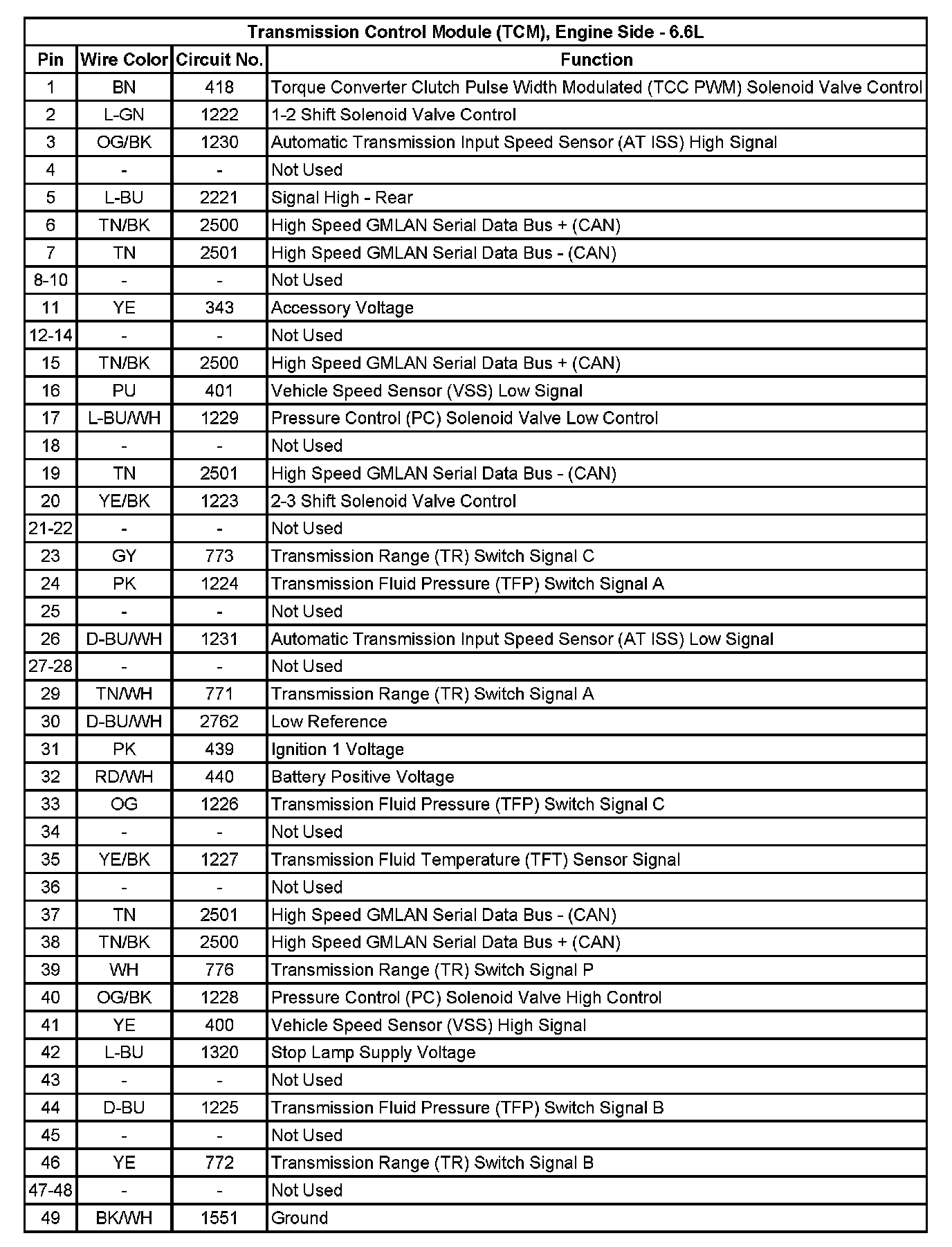

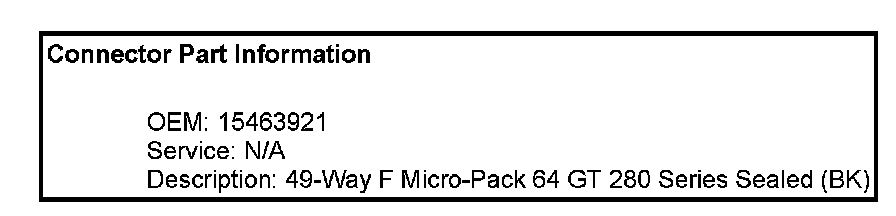

Transmission Control Module (TCM), Engine Side - 6.6L
Transmission Control Module (TCM), Engine Side - 6.6L:
