Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.6L DSL Turbo VIN 6 >> Repair and Diagnosis >> Body and Frame >> Locks >> Locations >> Access/Pro Harness and Components (With RPO Code PRP)

Access/Pro Harness and Components (With RPO Code PRP)

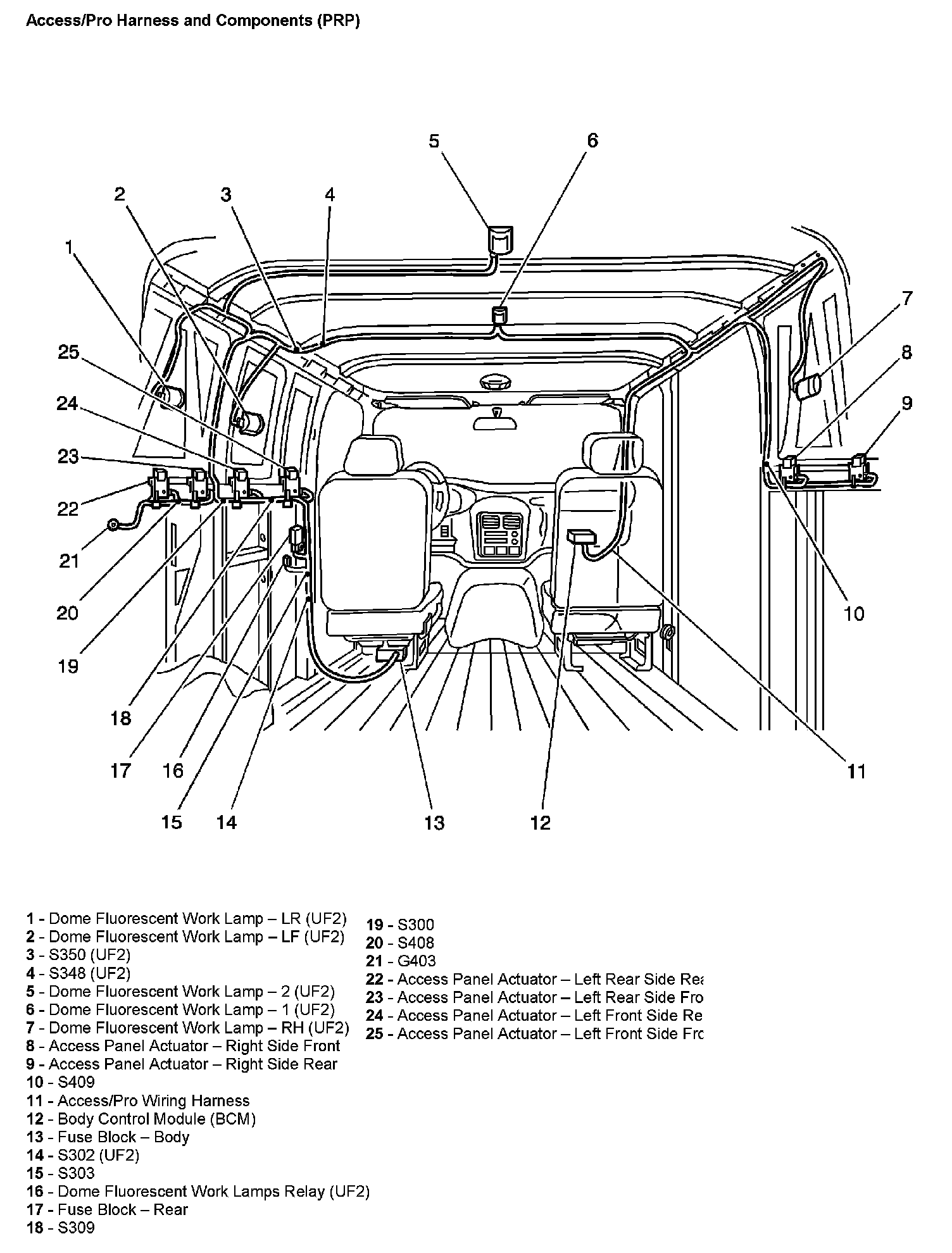

Access/Pro Harness And Components (PRP):

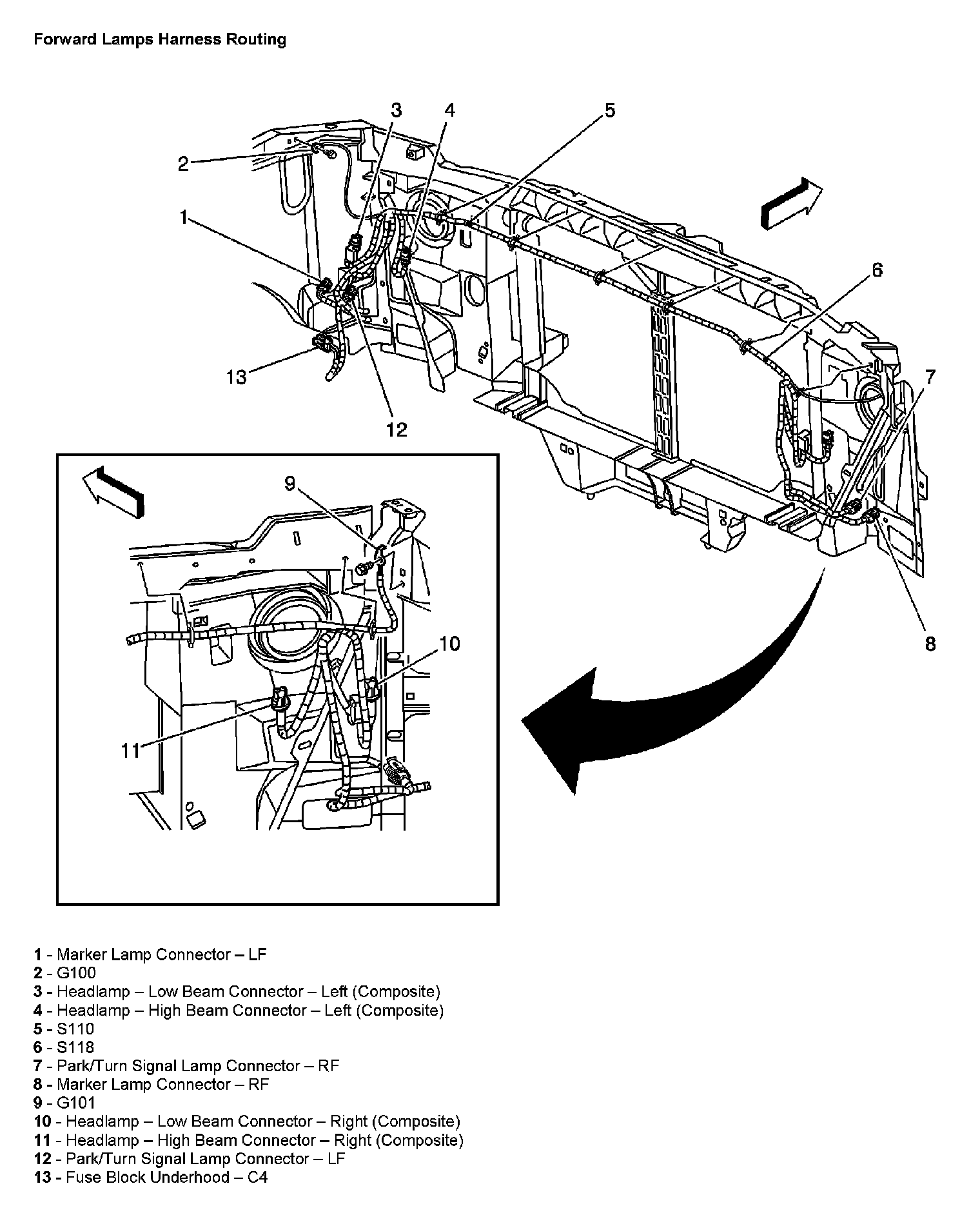

Forward Lamps Harness Routing:
