Express 3500 V8-6.6L DSL Turbo VIN 6
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Diagrams
>>
Connector Views
Connector Views

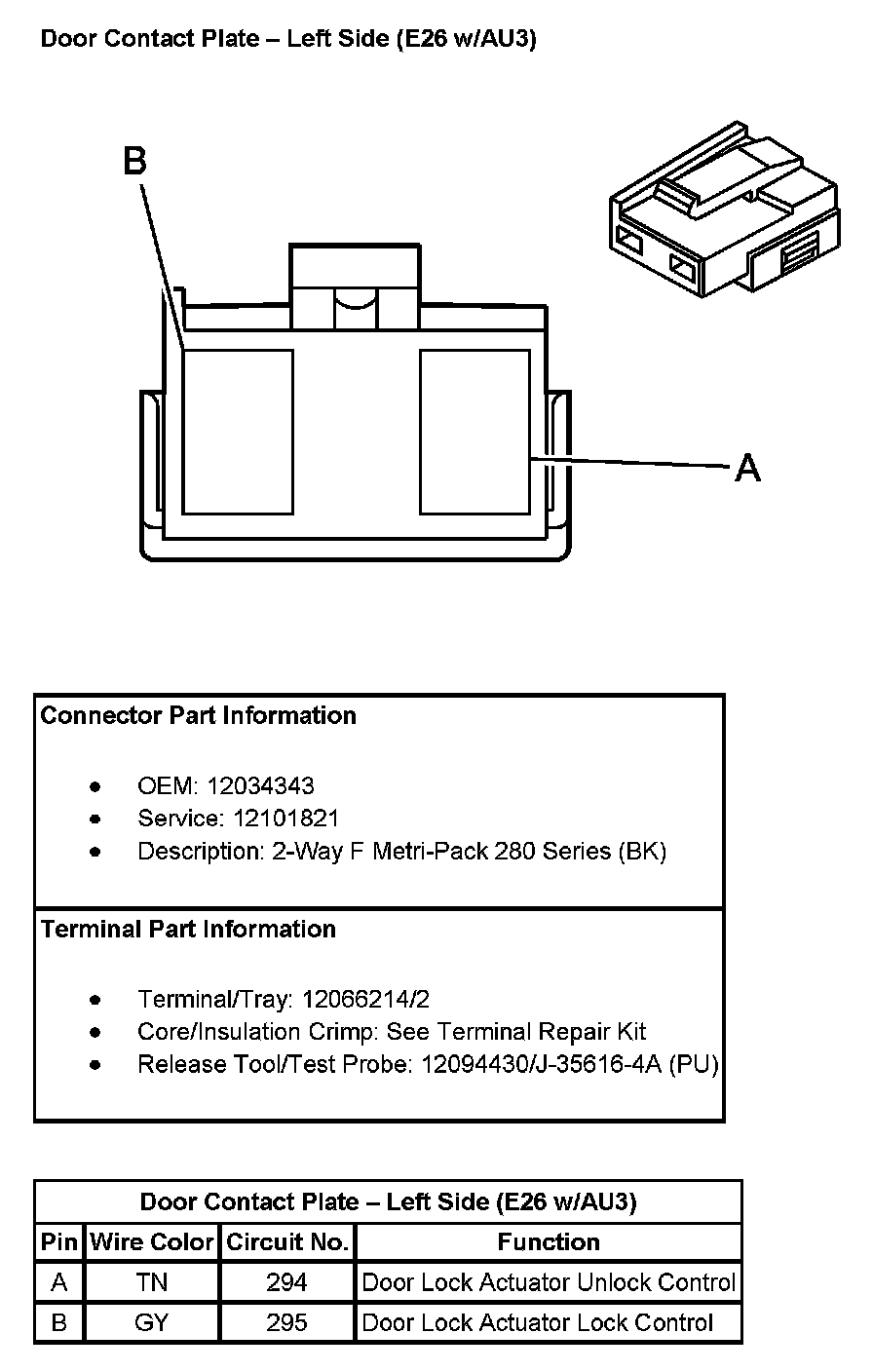

Door Contact Plate - Left Side (With RPO Codes E26/AU3):
Door Contact Plate - Right Side (Passenger/Cargo With RPO Code AU3):
