P0717
DTC P0717 (6.6L)

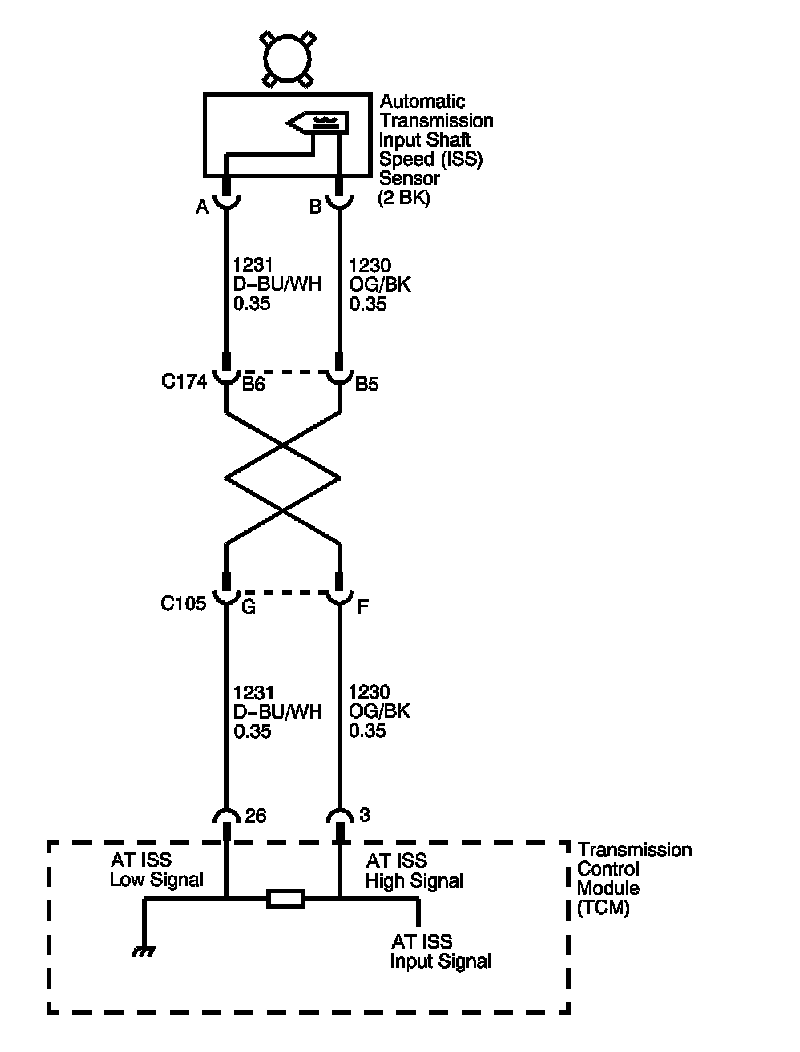

Circuit Description
The automatic transmission input shaft speed (AT ISS) sensor provides transmission input speed to the transmission control module (TCM). The AT ISS sensor is a permanent magnet (PM) generator. The sensor mounts into the transmission case and maintains a slight air gap between the sensor and the forward clutch housing. The PM generator produces an AC voltage as the forward clutch housing rotor teeth pass through the sensor's magnetic field. The AC voltage level increases as the turbine shaft speed increases. The TCM converts the AC voltage into a digital signal. The TCM determines actual turbine speed using the digital signal. The TCM uses the input speed to calculate torque converter slip speed, and gear ratios.
When the TCM detects a low or no input speed during high vehicle and high engine speeds, then DTC P0717 sets. DTC P0717 is a type B DTC.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P0717 Input Speed Sensor Circuit Low Voltage
Conditions for Running the DTC
* No ISS DTC P0717.
* No OSS DTCs P0722 or P0723.
* The system voltage is 8-18 volts.
* The engine is running for greater than 5 seconds.
* The vehicle speed is 16 km/h (10 mph) or greater.
* The engine torque is greater than 50 N.m (37 lb ft).
Conditions for Setting the DTC
The input speed is less than 100 RPM for at least 4.5 seconds.
Action Taken When the DTC Sets
* The TCM requests the engine control module (ECM) to illuminate the malfunction indicator lamp (MIL) during the second consecutive trip in which the Conditions for Setting the DTC are met.
* The TCM defaults the transmission to maximum line pressure.
* The TCM freezes transmission adaptive functions.
* The ECM records the operating conditions when the Conditions for Setting the DTC are met. The ECM stores this information as Freeze Frame and Failure Records.
* The TCM records the operating conditions when the Conditions for Setting the DTC are met. The TCM stores this information as Failure Records.
* The TCM stores the DTC P0717 in TCM history during the second consecutive trip in which the Conditions for Setting the DTC are met.
* The TCM calculates input speed from gear ratio and output speed.
Conditions for Clearing the MIL/DTC
* The ECM turns OFF the MIL after the third consecutive drive trip in which the TCM does not send a MIL illumination request.
* A scan tool can clear the MIL/DTC.
* The TCM clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without an emission related diagnostic fault occurring.
* The TCM cancels the DTC default actions when the fault no longer exists and the ignition switch is OFF long enough in order to power down the TCM.
Diagnostic Aids
DTC P0717 defaults to an elevated line pressure condition which may result in partial torque converter clutch (TCC) apply. This may produce an idle surge that could stall the engine.
Test Description

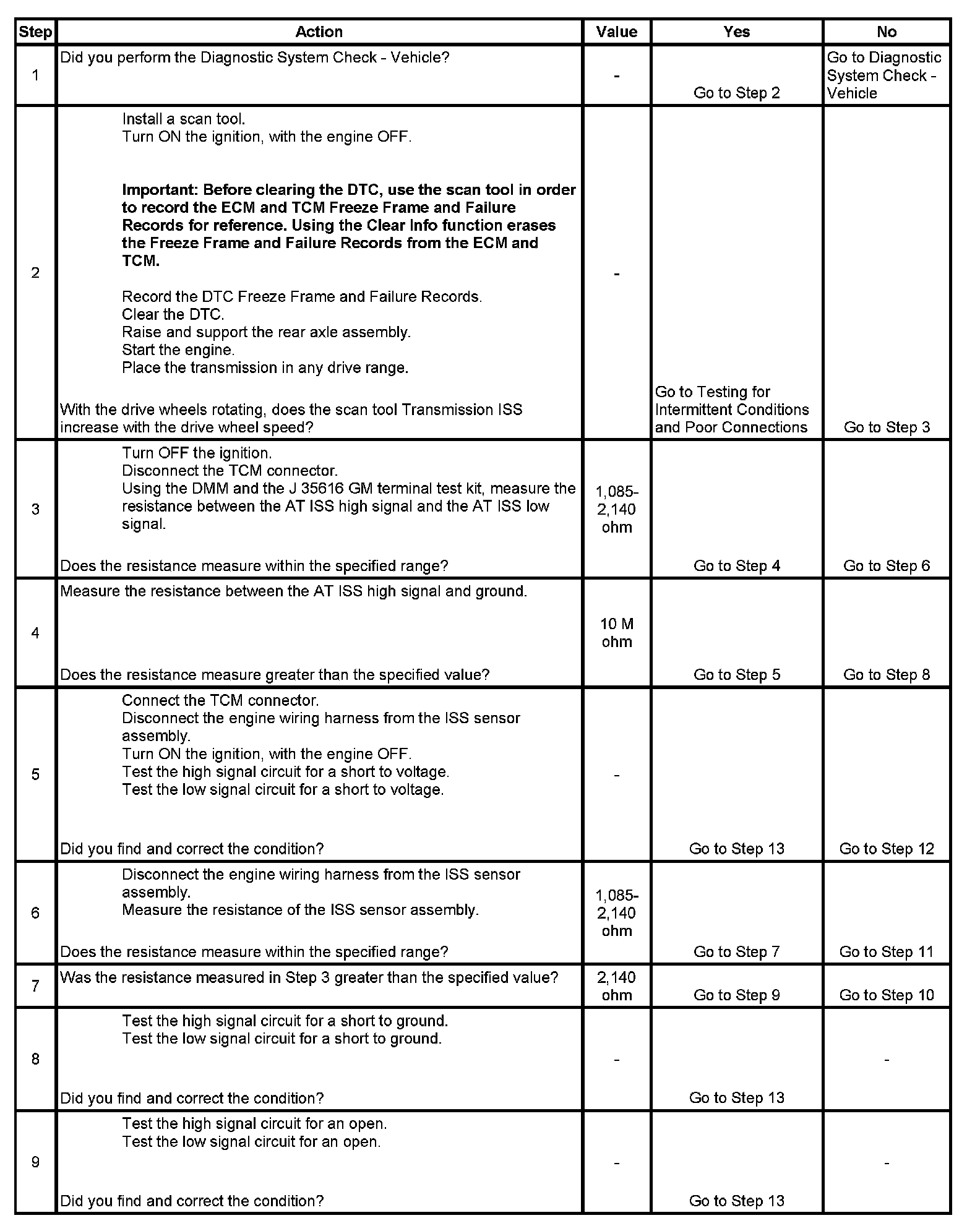

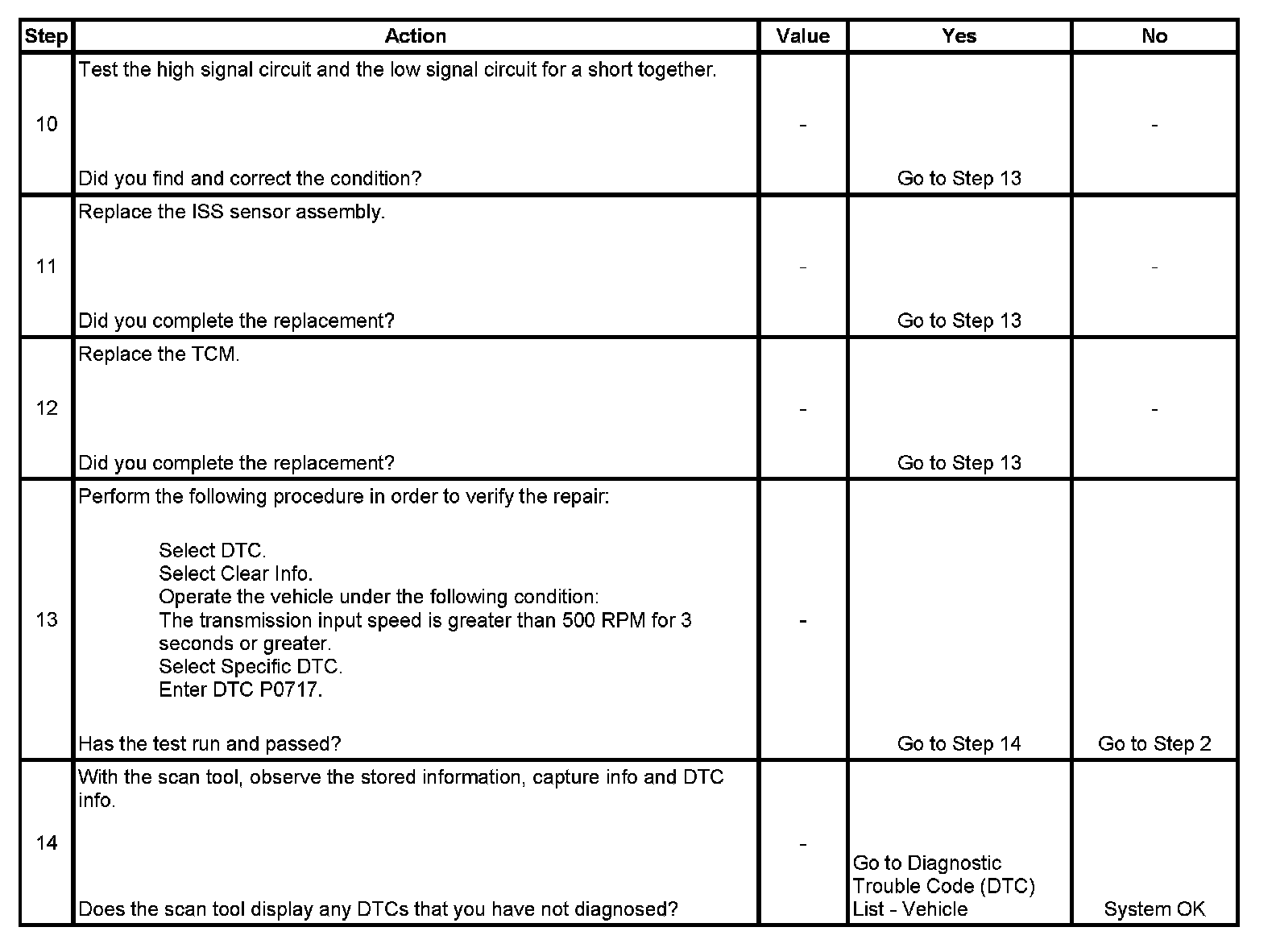

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for proper circuit operation up to the TCM connection.
6. This step tests for proper operation of the AT ISS sensor.
